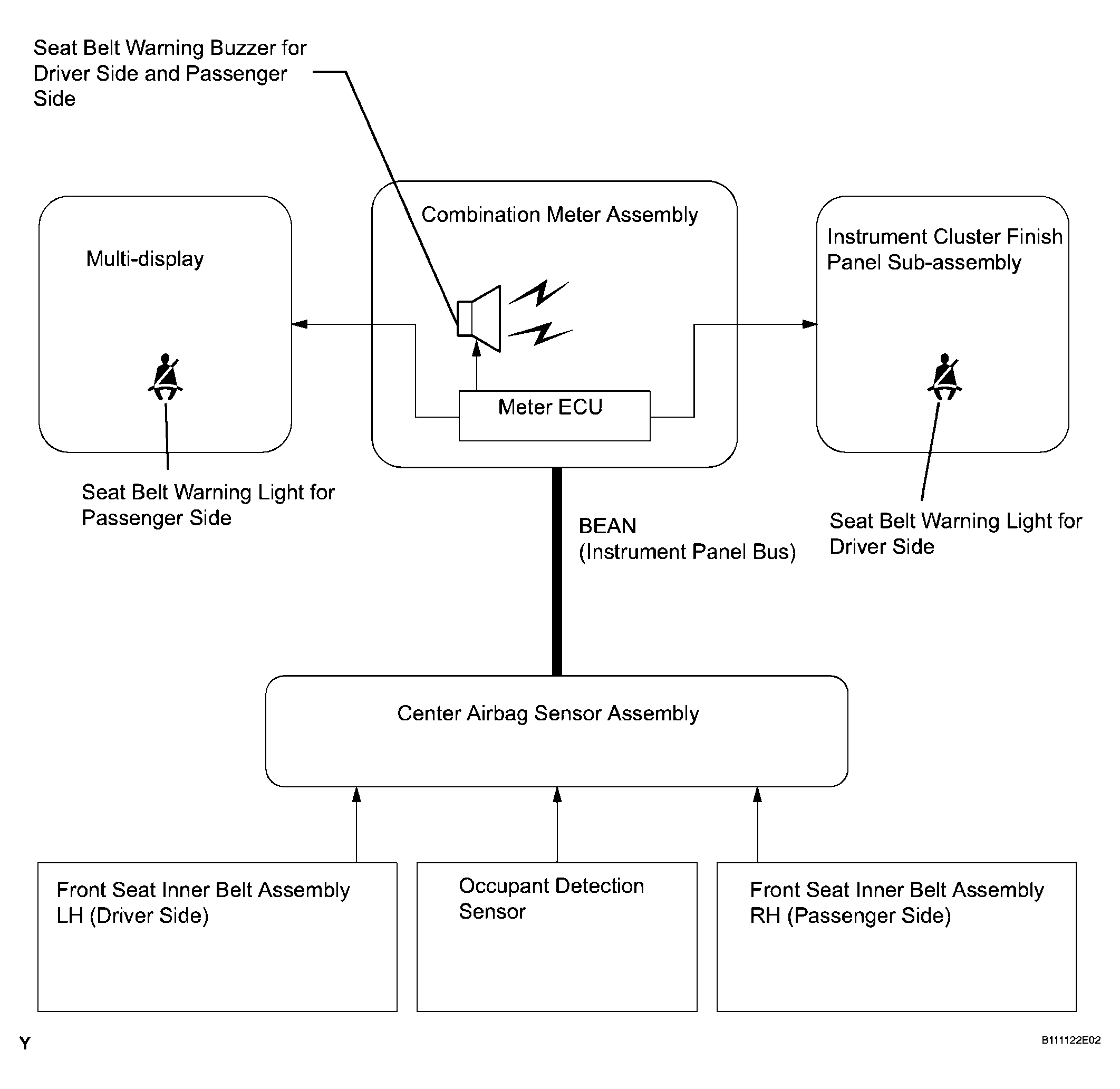

System Diagram
Communication table:
COMMUNICATION
| Sender | Receiver | Signal | Line |
|---|---|---|---|
| Center Airbag Sensor Assembly | Meter ECU | Front seat inner belt switch signal (driver side) | BEAN |
| Center Airbag Sensor Assembly | Meter ECU | Front seat inner belt switch signal (passenger side) | BEAN |
| Center Airbag Sensor Assembly | Meter ECU | Occupant detection sensor signal | BEAN |
