Steering Knuckle: Components

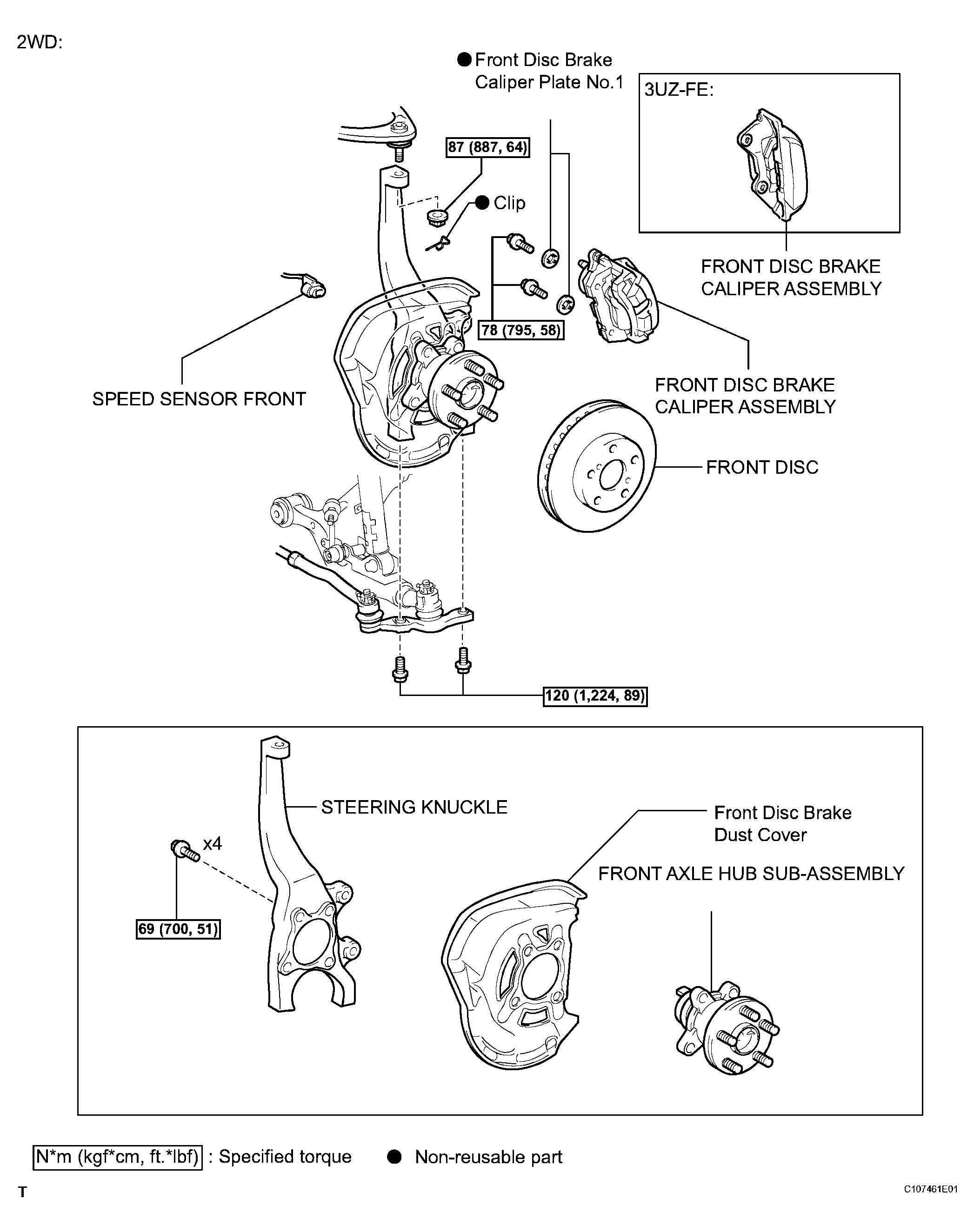

Fig 1: Installing Steering Knuckle Components With Torque Specifications (1 Of 2)
G04024511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Installing Steering Knuckle Components With Torque Specifications (2 Of 2)
G04024512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
