Absorber Control Ecu: Replacement

1. Turn back the floor carpet to remove the absorber control ECU.
2. Disengage the 2 clamps to remove the wire harness from the vehicle body.
   NOTE: Do not apply an excessive force to the wire harness.
3. Disconnect the connectors from the absorber control ECU.

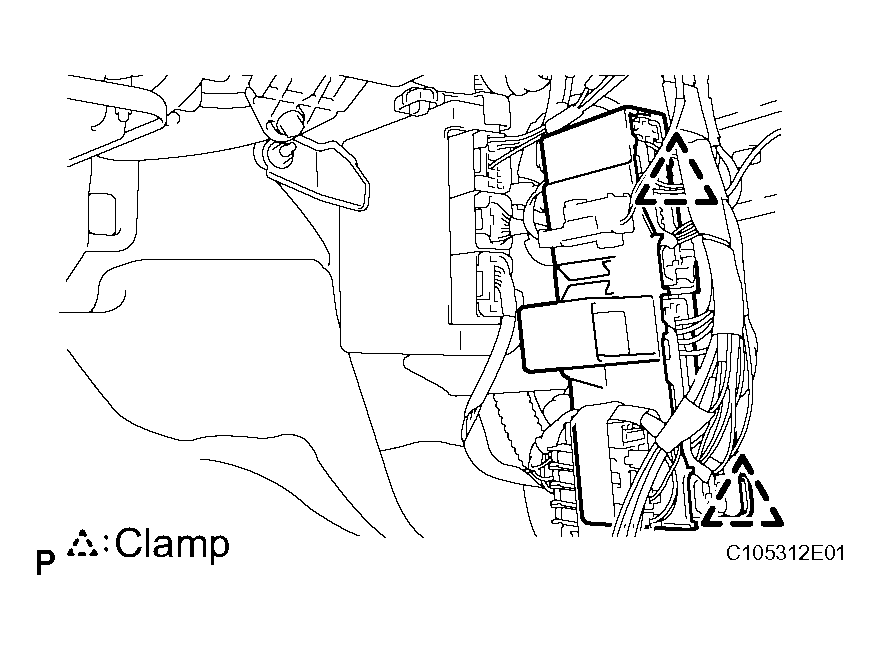

   Fig 1: Disengaging Clamps To Remove Wire Harness From Vehicle Body

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the bolt, nut and the absorber control ECU.

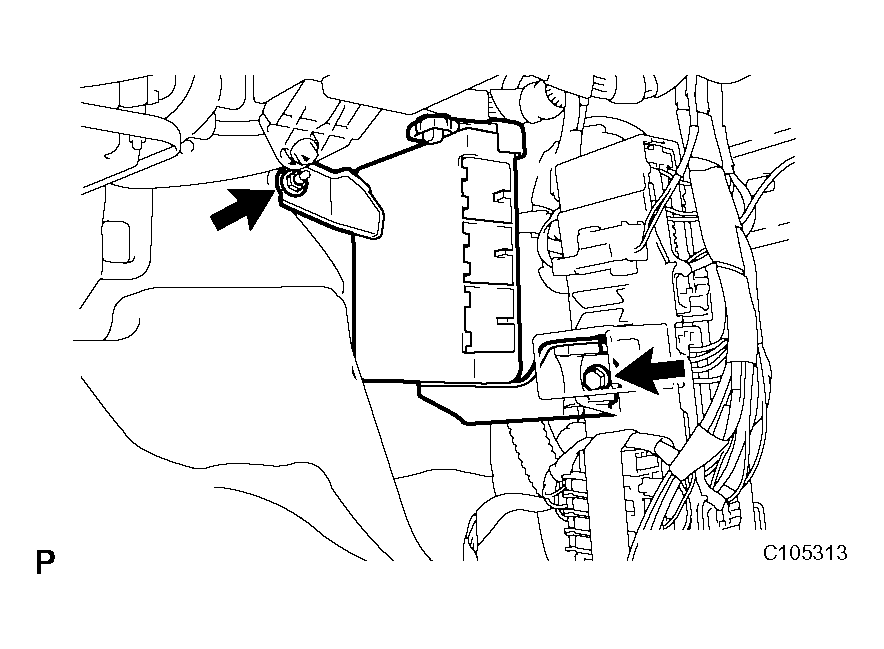

   Fig 2: Identifying Absorber Control ECU

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the absorber control ECU with the bolt and nut.

   Torque: Bolt

   8.5 N*m (87 kgf*cm, 75 in.*lbf)

   Nut

   6.0 N*m (61 kgf*cm, 53 in.*lbf)

   NOTE:

   • Avoid any impact to the absorber control ECU.
   • Do not drop the absorber control ECU. If it is dropped, replace it with a new one.
2. Connect the connectors to the absorber control ECU.
   Fig 3: Identifying Absorber Control ECU

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Engage the 2 clamps to install the wire harness to the vehicle body.
4. Install the floor carpet.

Some systems need initialization when disconnecting the cable from the negative battery terminal (see INITIALIZATION ).

Fig 4: Engaging Clamps To Install Wire Harness To Vehicle Body

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
