Floor Shift Assembly: Disassembly

REMOVE SHIFT LOCK RELEASE BUTTON COVER
1. Using a screwdriver, remove the shift lock release button cover.
REMOVE POSITION INDICATOR HOUSING UPPER
1. Disconnect the indicator light wire sub-assembly from the shift lever plate.
2. Using a screwdriver, remove the position indicator housing upper.

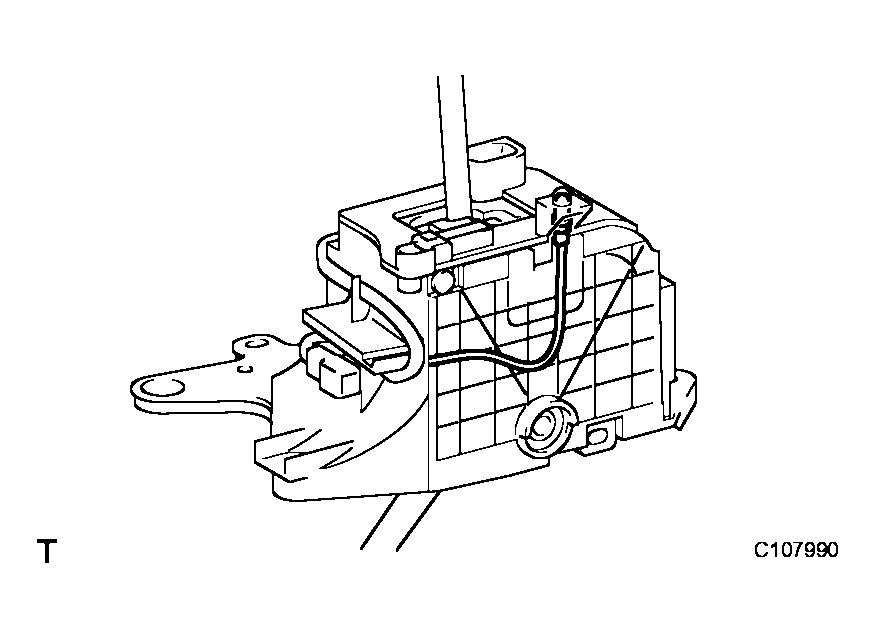

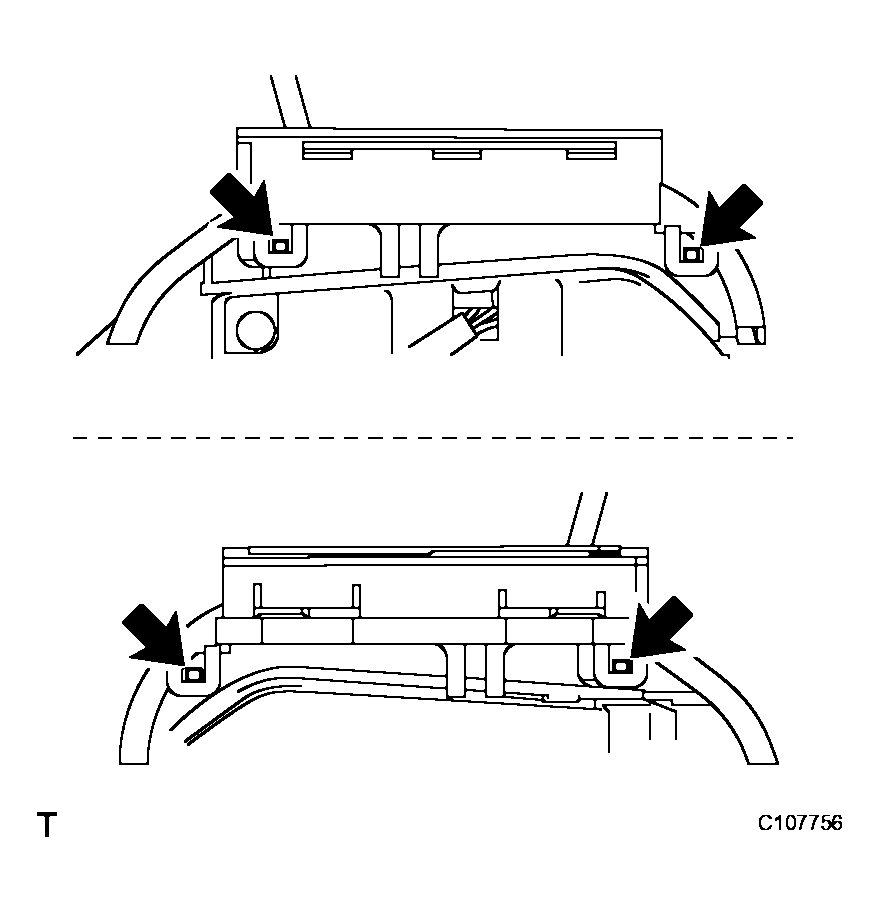

  Fig 1: Identifying Position Indicator Housing Upper
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POSITION INDICATOR LENS
1. Using a screwdriver, remove the position indicator lens from the position indicator housing upper.

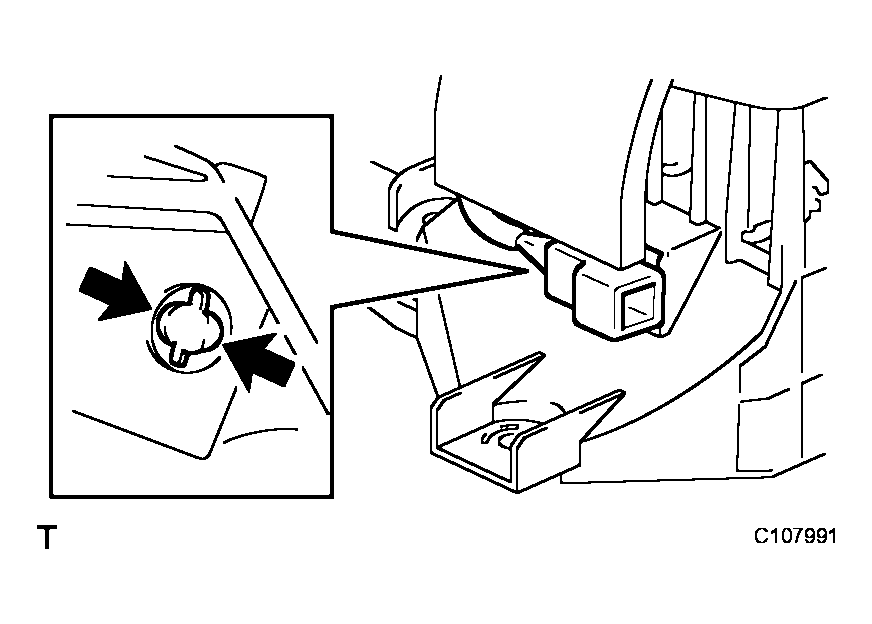

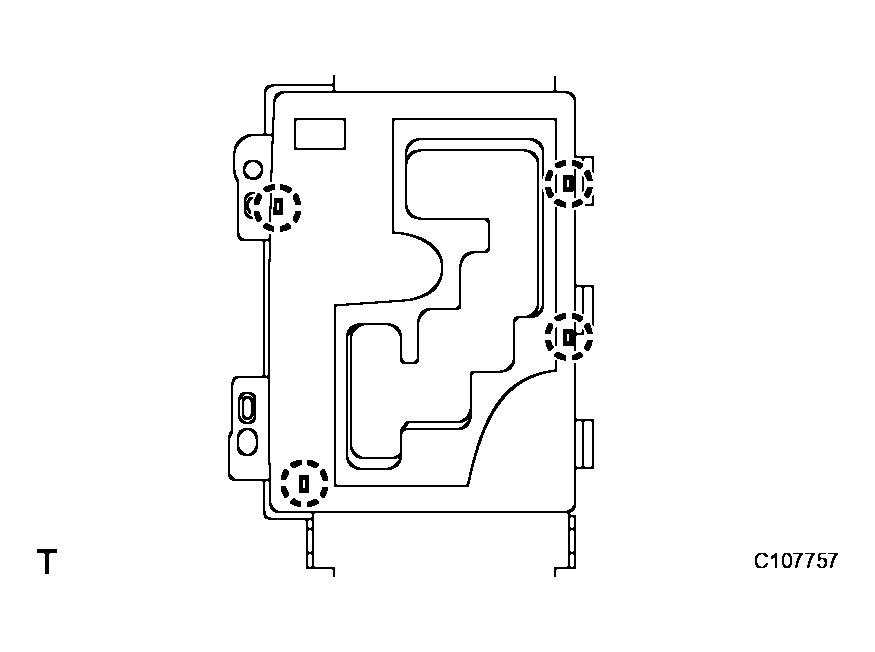

  Fig 2: Identifying Position Indicator Lens From Position Indicator Housing Upper
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INDICATOR LIGHT WIRE SUB-ASSEMBLY
1. Remove the indicator light wire sub-assembly from the position indicator lower.
2. Remove the position indicator bulb from the indicator light wire sub-assembly.
3. Remove the position indicator bulb cap from the position indicator bulb.

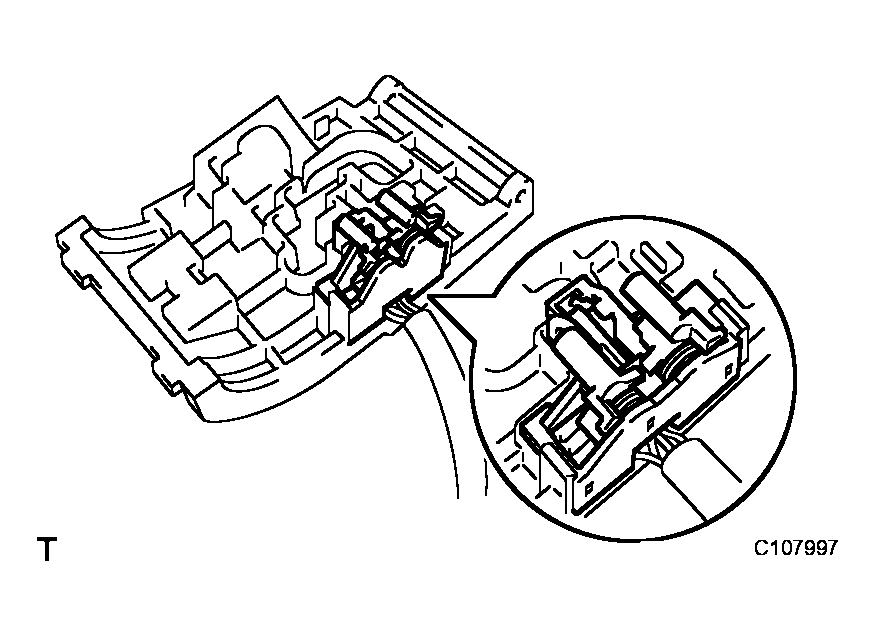

  Fig 3: Identifying Position Indicator Bulb Cap From Position Indicator Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the transmission control switch connector from the floor shift assembly.

  Fig 4: Identifying Transmission Control Switch Connector From Floor Shift Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

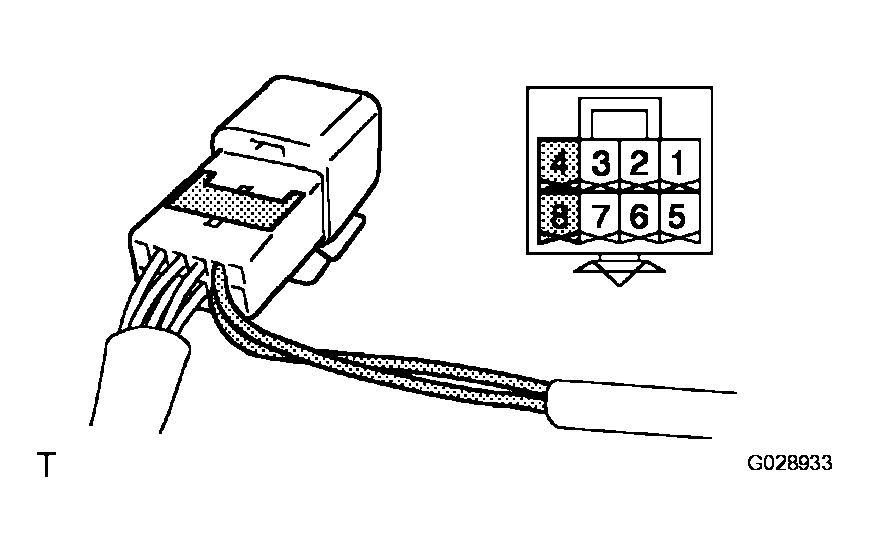

5. Using a screwdriver, disengage the locking lug of terminals (4) and (8), and pull the terminals out from the rear.

  Fig 5: Identifying Terminals From Rear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT LOCK RELEASE BUTTON

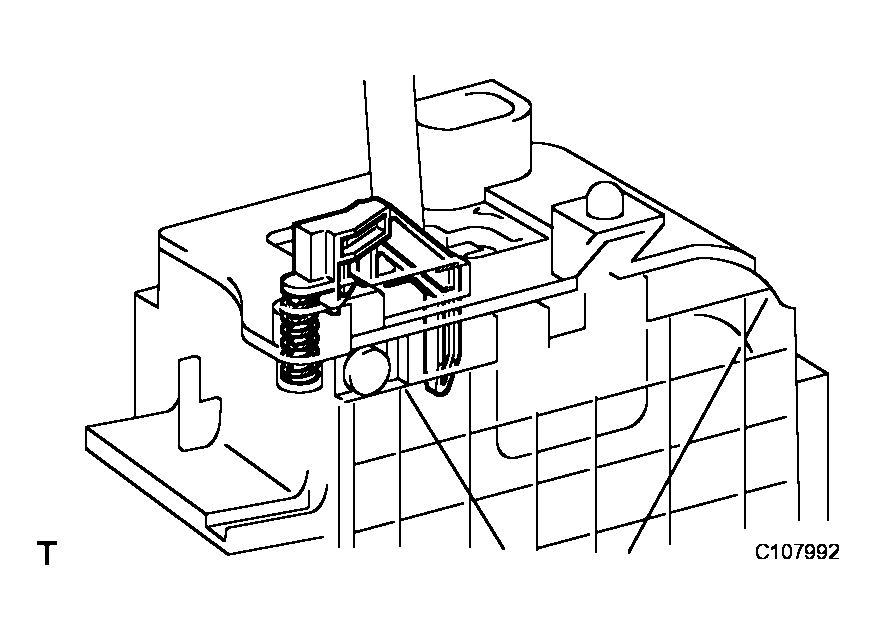

1. Remove the shift lock release button and spring from the floor shift assembly.

  Fig 6: Identifying Shift Lock Release Button And Spring From Floor Shift Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POSITION INDICATOR SLIDE COVER
1. Remove the position indicator slide cover from the shift lever guide housing.
2. Remove the position indicator slide cover No.2 from the position indicator slide cover.

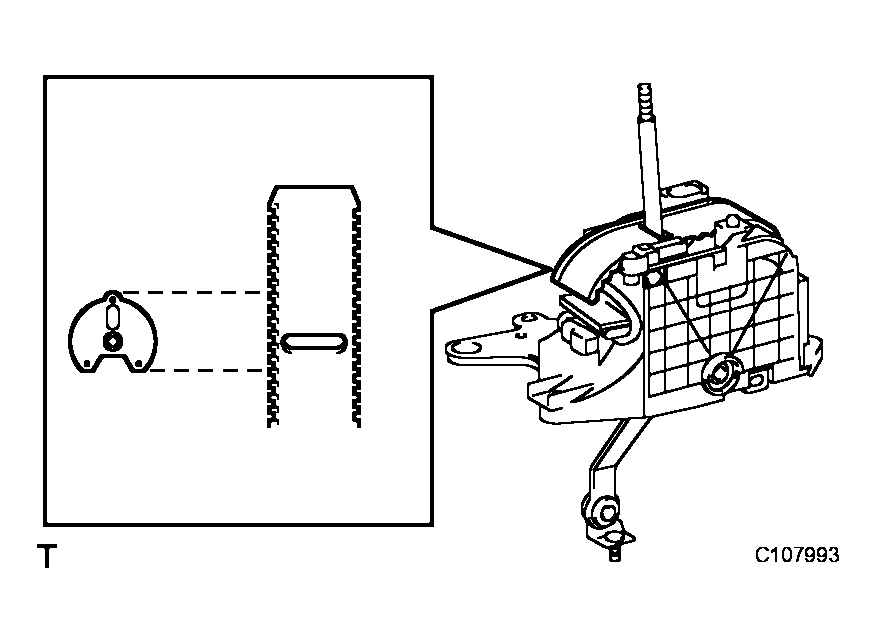

  Fig 7: Identifying Position Indicator Slide Cover From Shift Lever Guide Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT LOCK CONTROL ECU SUBASSEMBLY
1. Remove the shift lever nut and lock pin from the floor shift assembly.
2. Remove the shift lever guide housing from the floor shift assembly.
  NOTE: First remove the shift lever nut and lock pin, then disengage the 2 claws.

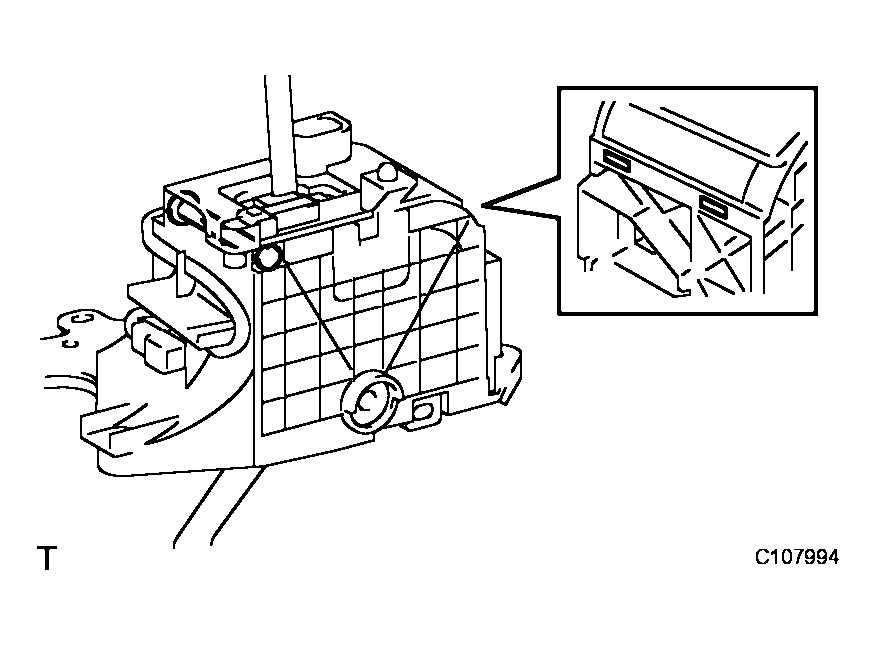

  Fig 8: Identifying Shift Lever Guide Housing From Floor Shift Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

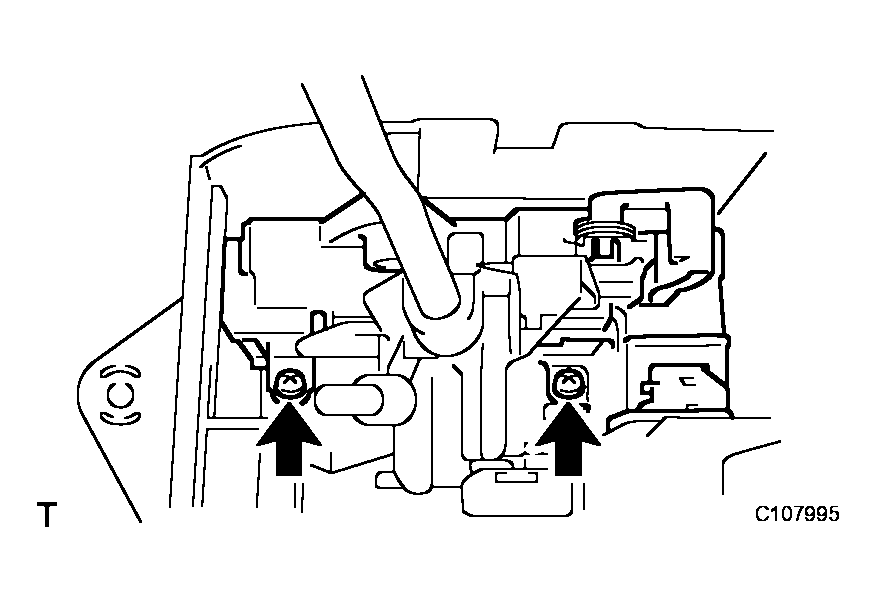

3. Remove the 2 screws and shift lock control ECU sub-assembly.

  Fig 9: Identifying Shift Lock Control ECU Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POSITION INDICATOR HOUSING LOWER
1. Remove the position indicator housing lower from the shift lever guide housing.

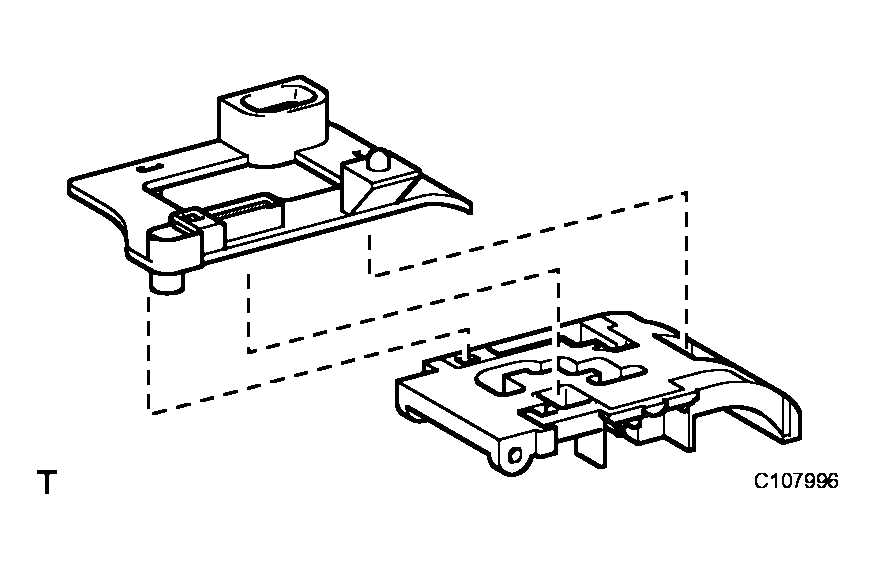

  Fig 10: Identifying Position Indicator Housing Lower From Shift Lever Guide Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSMISSION CONTROL SWITCH
1. Remove the transmission control switch from the shift lever guide housing.

  Fig 11: Identifying Transmission Control Switch From Shift Lever Guide Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
