Floor Shift Assembly: Inspection

  1. INSPECT TRANSMISSION CONTROL SWITCH
    1. Connect the park/neutral position switch connector.

      Standard resistance

      TERMINALS RESISTANCE SPECIFICATIONS

      Shift Position Tester Connection Specified Condition
      S, "+" and "-" 3 - 7 Below 1 Ω
      Except S, "+" and "-" 10 kΩ or higher

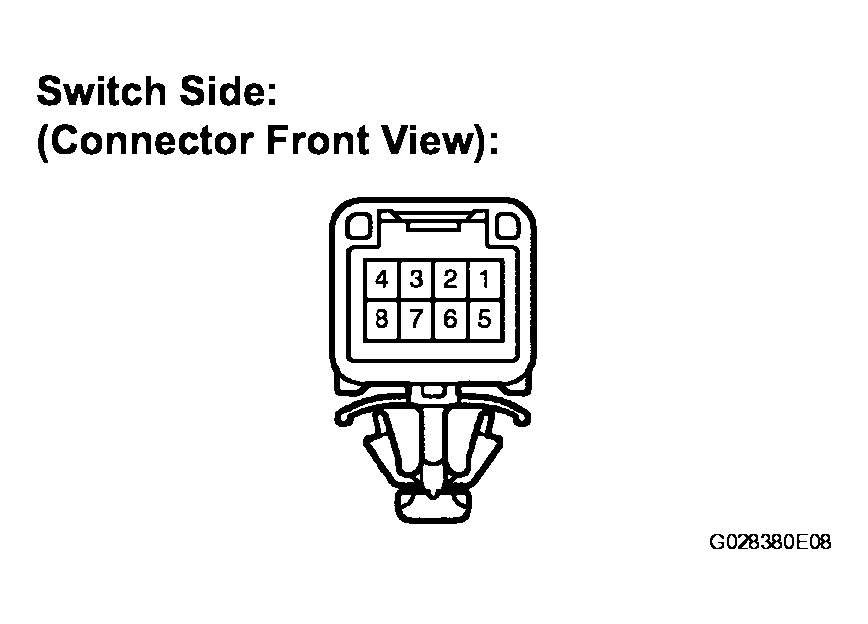

      Fig 1: Identifying Transmission Control Switch Connectors
      G04028458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the transmission control switch connector of shift lock control unit assembly.
    3. Measure resistance according to the value(s) in the table below when the shift lever is moved to each position.
