Floor Shift Assembly: Reassembly

INSTALL TRANSMISSION CONTROL SWITCH
1. Install the transmission control switch to the shift lever guide housing.
  HINT:

  Securely engage the claws.

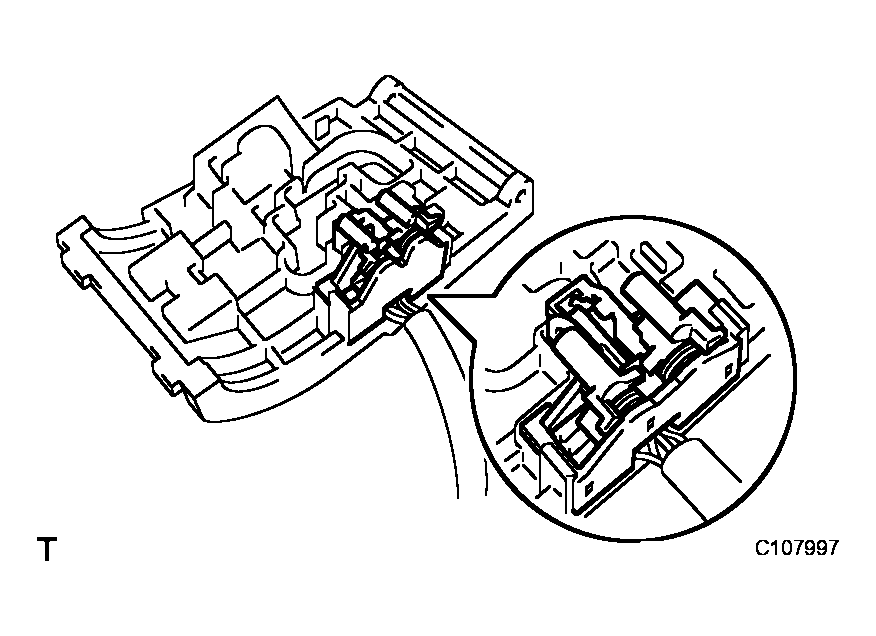

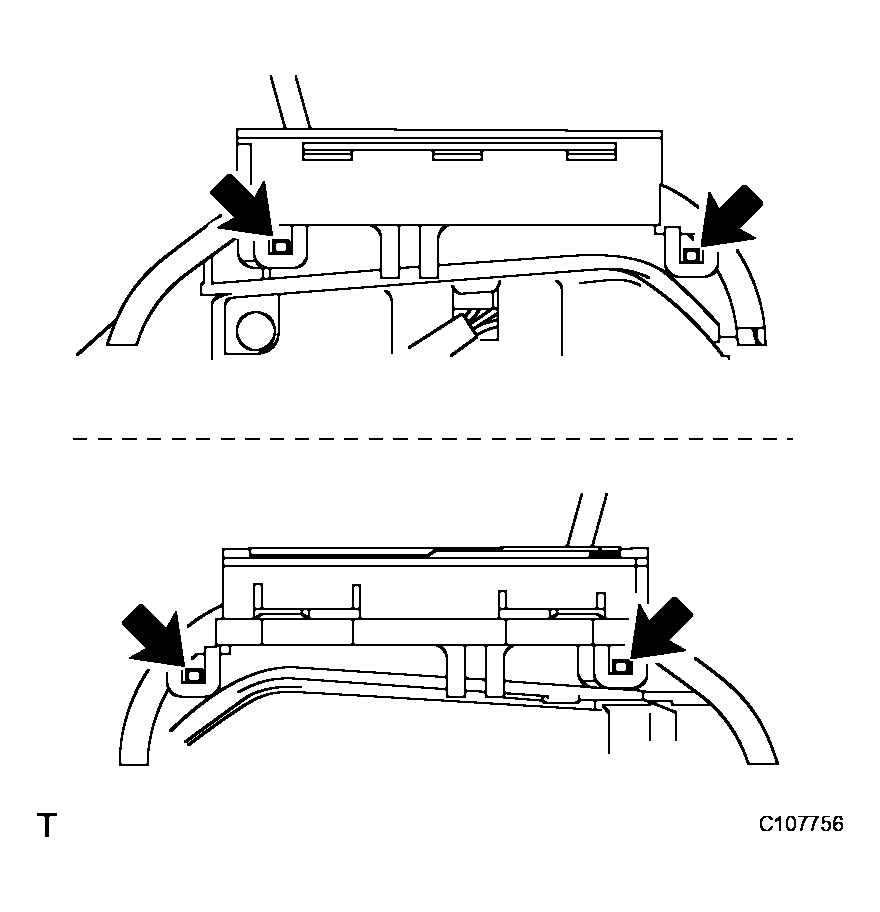

  Fig 1: Identifying Transmission Control Switch To Shift Lever Guide Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POSITION INDICATOR HOUSING LOWER
1. Install the position indicator housing lower to the shift lever guide housing.
  HINT:

  Securely engage the claws.

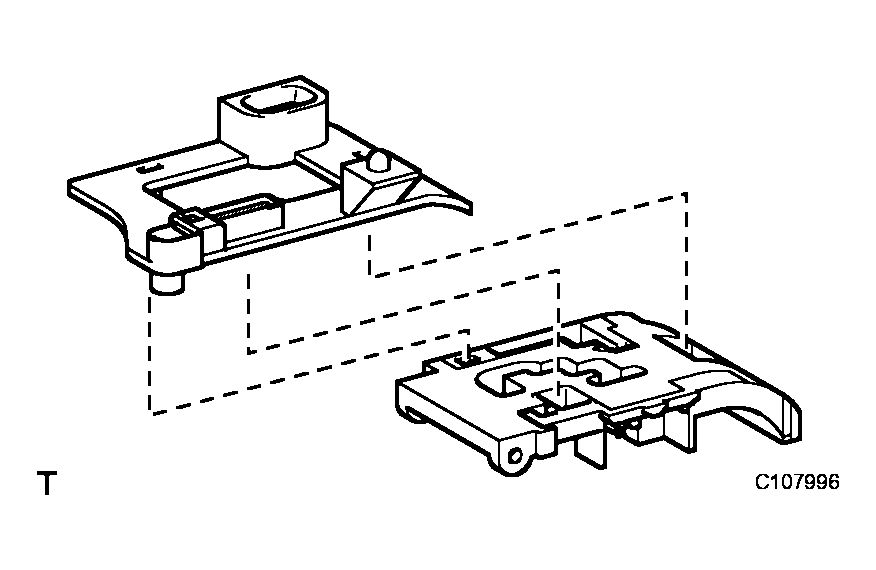

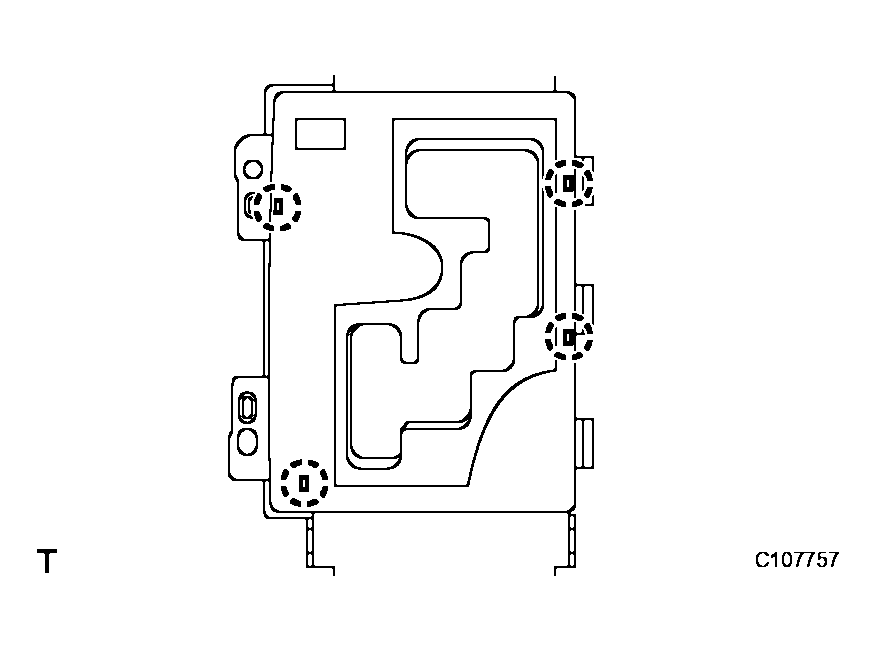

  Fig 2: Identifying Position Indicator Housing Lower To Shift Lever Guide Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT LOCK CONTROL ECU SUBASSEMBLY
1. Apply MP grease to the hatched area of the shift lever guide housing as indicated in the illustration.

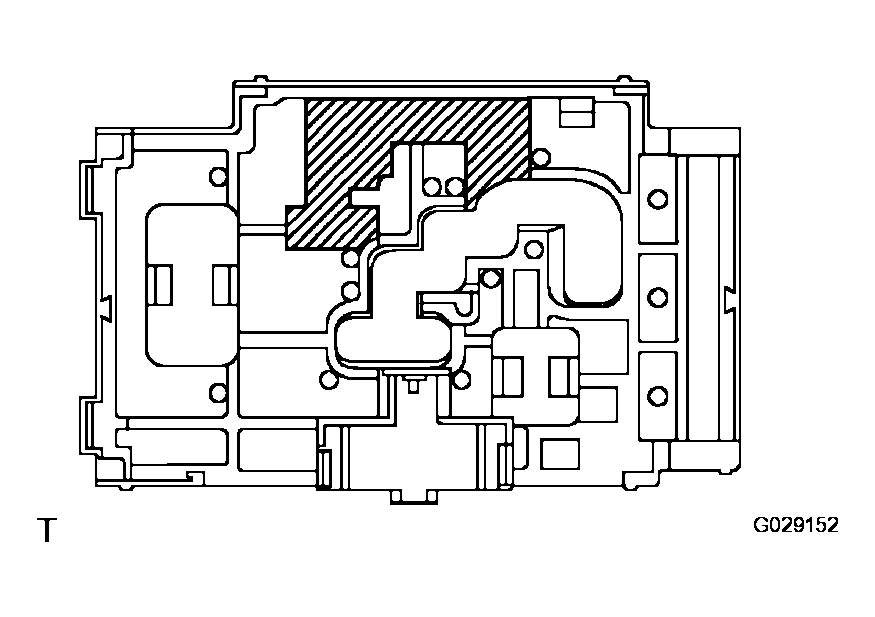

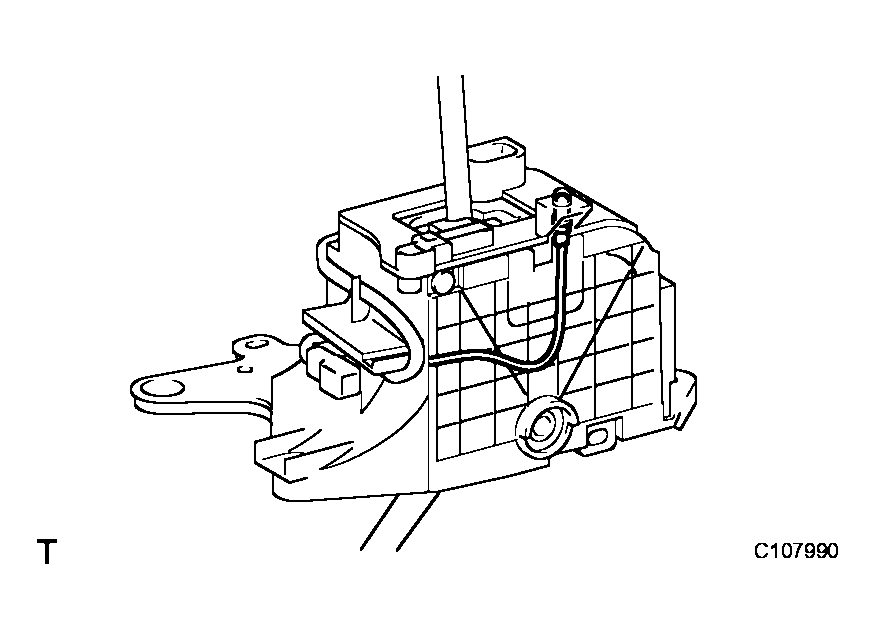

  Fig 3: Applying MP Grease To Hatched Area Of Shift Lever Guide Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the shift lock control ECU sub-assembly with the 2 screws.

  Fig 4: Identifying Shift Lock Control ECU Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the shift lever guide housing with the shift lever lock pin and a new shift lever nut.
  NOTE:
  - Install the shift lever nut and lock pin after first engaging the 2 claws.
  - Securely engage the claws.

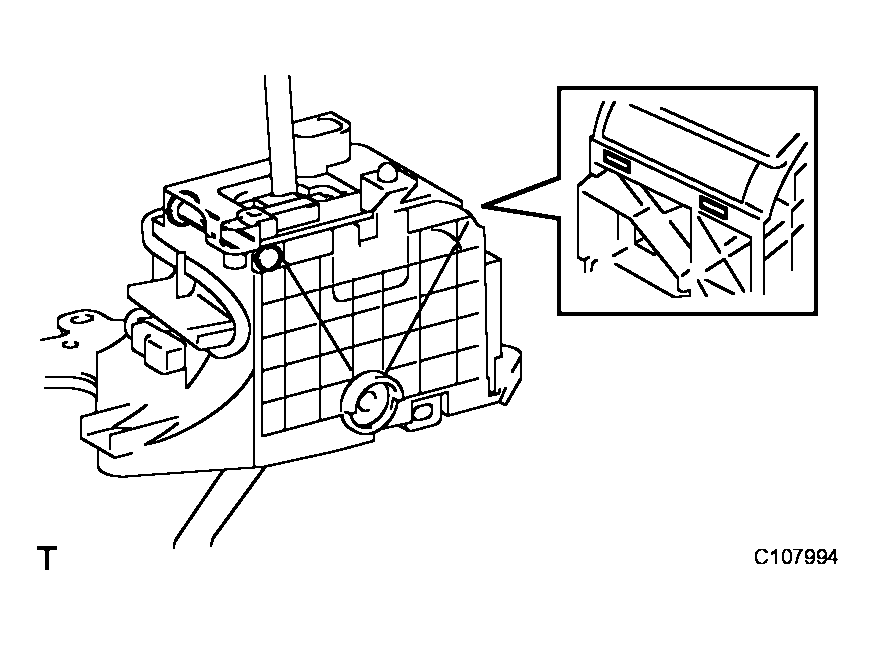

  Fig 5: Identifying Shift Lever Guide Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POSITION INDICATOR SLIDE COVER
1. Install position indicator slide cover No.2 to the position indicator slide cover.
2. Install the position slide cover to the shift lever guide housing.

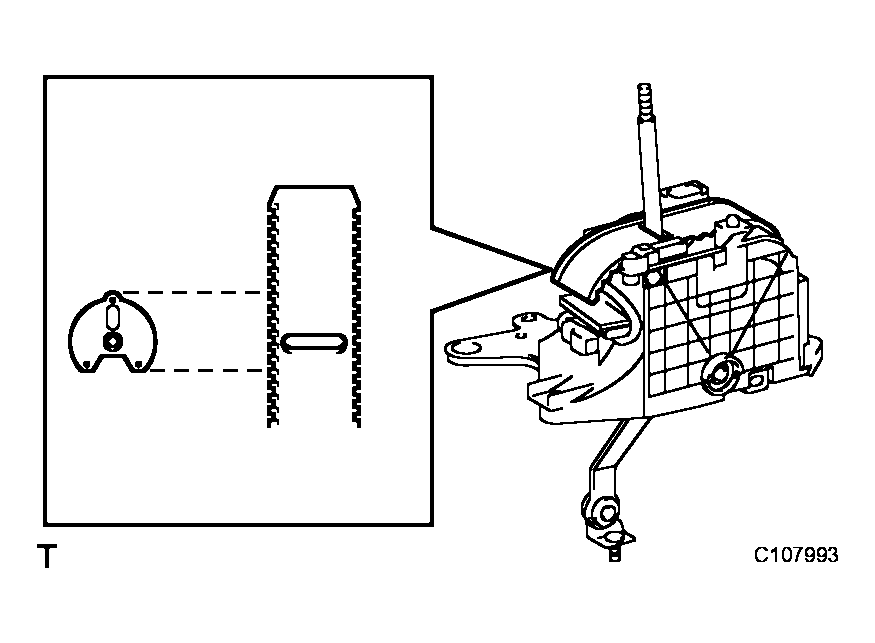

  Fig 6: Identifying Position Slide Cover To Shift Lever Guide Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT LOCK RELEASE BUTTON
1. Install the shift lock release button and spring to the floor shift assembly.
  HINT:

  Securely engage the claws.

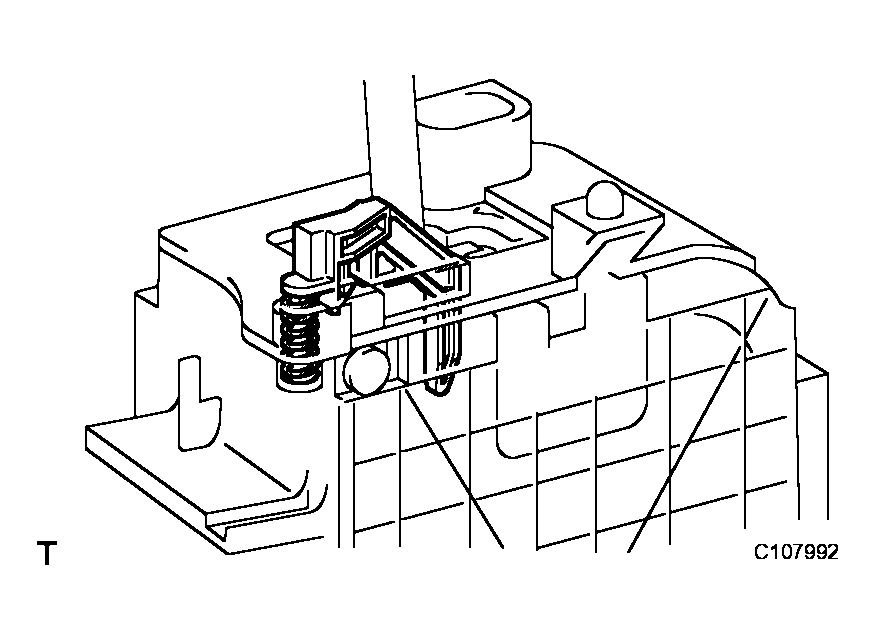

  Fig 7: Identifying Shift Lock Release Button And Spring To Floor Shift Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INDICATOR LIGHT WIRE SUB-ASSEMBLY
1. Securely connect the 2 terminals of the indicator light wire harness to the transmission control switch connector.
2. Install the position indicator light bulb to the indicator light wire sub-assembly.
3. Install the position indicator bulb cap to the position indicator light bulb.

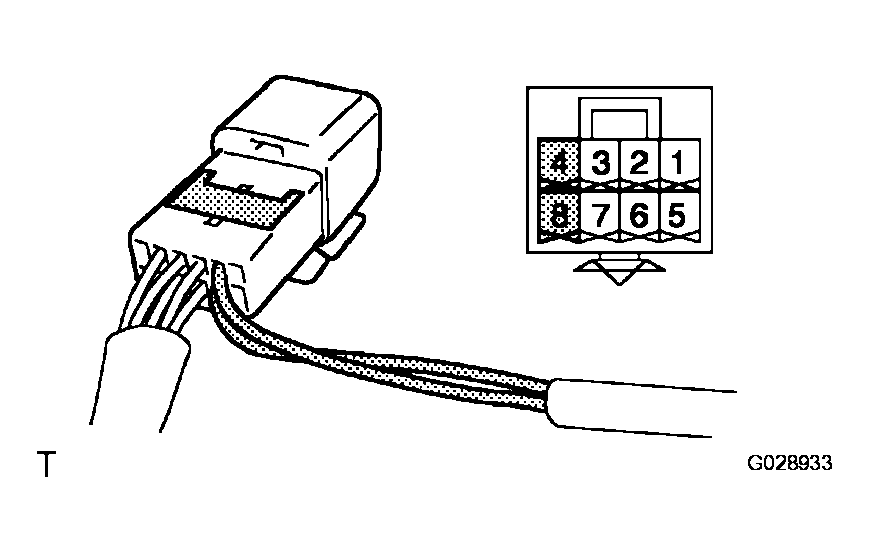

  Fig 8: Identifying Terminals Of Indicator Light Wire Harness To Transmission Control Switch Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the indicator light wire to the position indicator lower.
  NOTE: Make sure that the indicator light wire is securely installed to the position indicator lens.

  Fig 9: Identifying Indicator Light Wire To Position Indicator Lower
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Connect the indicator light wire connector to the floor shift assembly.

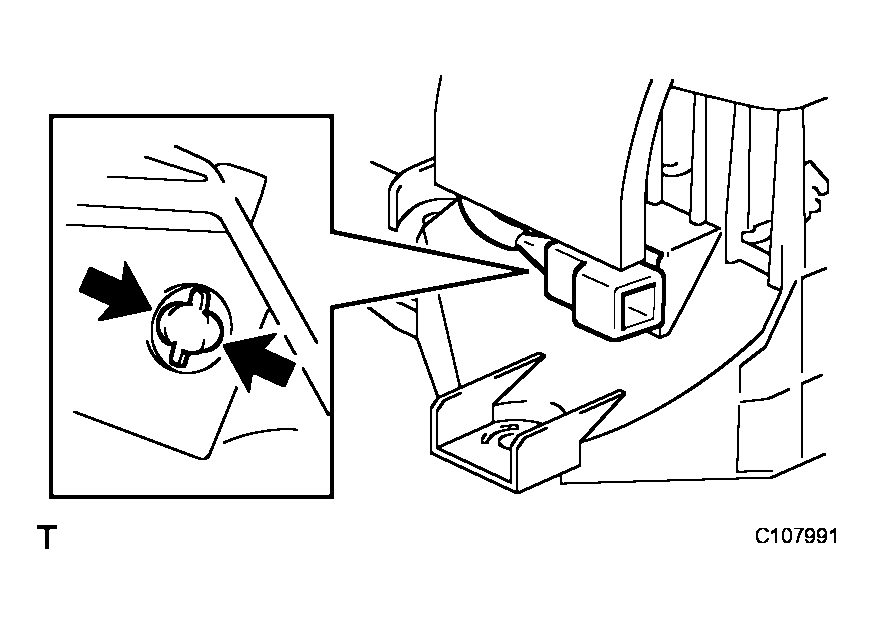

  Fig 10: Identifying Indicator Light Wire Connector To Floor Shift Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POSITION INDICATOR LENS
1. Install the position indicator lens to the position indicator housing upper.
  HINT:

  Securely engage the claws.

  Fig 11: Identifying Position Indicator Lens To Position Indicator Housing Upper
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POSITION INDICATOR HOUSING UPPER
1. Install the position indicator housing upper to the shift lever guide housing.
  HINT:

  Securely engage the claws.
INSTALL SHIFT LOCK RELEASE BUTTON COVER
1. Install the shift lock release button cover to the position indicator housing upper.

  Fig 12: Identifying Position Indicator Housing Upper To Shift Lever Guide Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
