Floor Shift Assembly: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
REMOVE FRONT CONSOLE UPPER PANEL GARNISH (See REMOVAL )
REMOVE CONSOLE UPPER PANEL ASSEMBLY (See REMOVAL )
REMOVE INSTRUMENT PANEL FINISH PANEL END RH (See REMOVAL )
REMOVE INSTRUMENT PANEL FINISH PANEL END LH (See REMOVAL )
REMOVE CONSOLE BOX PLATE (See REMOVAL )
REMOVE CONSOLE BOX REGISTER ASSEMBLY (See REMOVAL )
REMOVE CONSOLE BOX (See REMOVAL )
REMOVE NO.2 CONSOLE BOX DUCT (See REMOVAL )
REMOVE FRONT EXHAUST PIPE ASSEMBLY
(REMOVAL )
REMOVE FRONT FLOOR HEAT INSULATOR NO.1 ( REMOVAL )
SEPARATE FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY
1. Remove the nut and separate the floor shift gear shifting rod sub-assembly.
REMOVE FLOOR SHIFT ASSEMBLY
1. Disconnect the connectors.

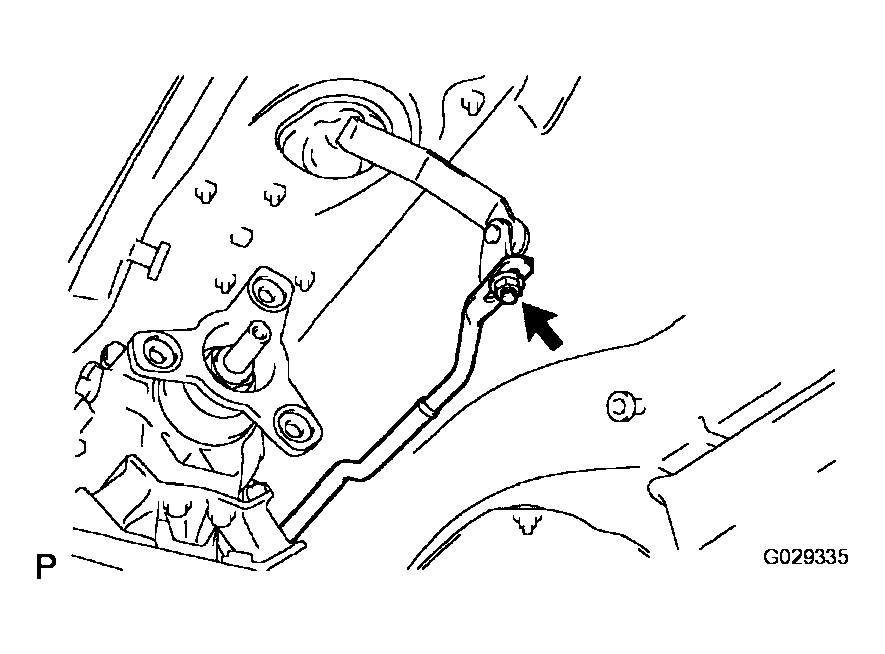

  Fig 1: Separating Floor Shift Gear Shifting Rod Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 4 bolts.
3. Remove the floor shift assembly.

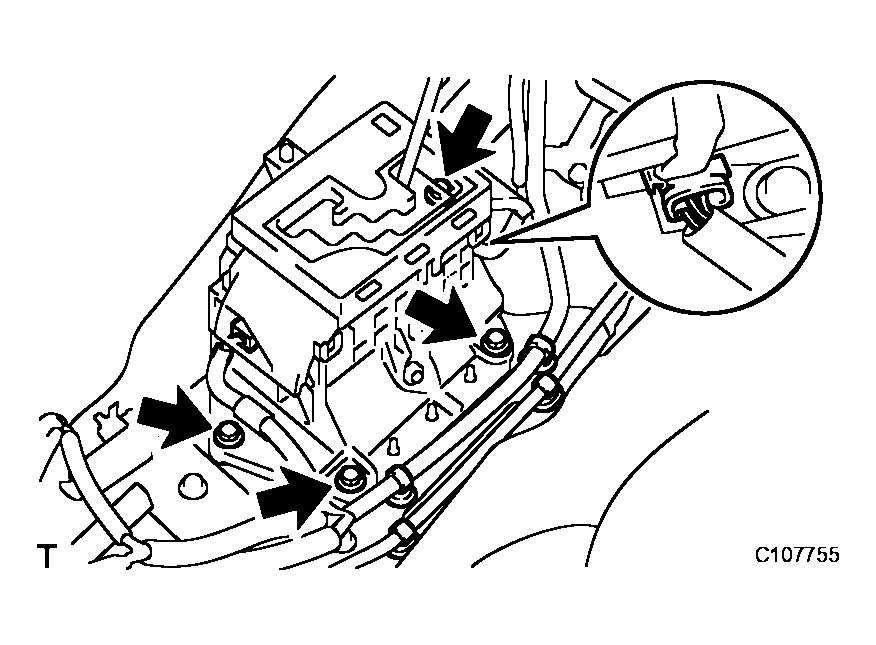

  Fig 2: Identifying Floor Shift Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
