Oil Pump: Reassembly

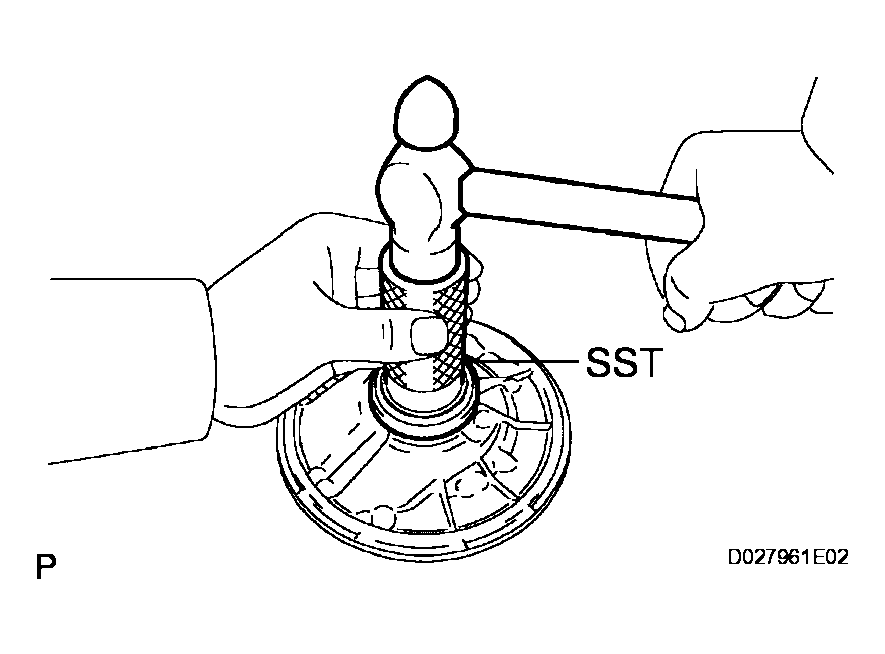

INSTALL FRONT OIL PUMP OIL SEAL
1. Using SST and a hammer, install a new oil seal.
  HINT:

  The oil seal end should be flush with the outer edge of the pump body.

  SST 09350-30020 (09351-32140)
2. Coat the oil seal lip with MP grease.
FIX FRONT OIL PUMP BODY SUB-ASSEMBLY
1. Place the oil pump body on the torque converter clutch.

  Fig 1: Placing Oil Pump Body On Torque Converter Clutch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT OIL PUMP DRIVEN GEAR
1. Coat the driven gear with ATF.
2. Install the driven gear to the oil pump body.

  Fig 2: Identifying Front Oil Pump Driven Gear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT OIL PUMP DRIVE GEAR
1. Coat the drive gear with ATF.
2. Install the drive gear to the oil pump body.

  Fig 3: Identifying Front Oil Pump Drive Gear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT OIL PUMP BODY O-RING
1. Install a new O-ring to the oil pump body.

  Fig 4: Identifying Front Oil Pump Body O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

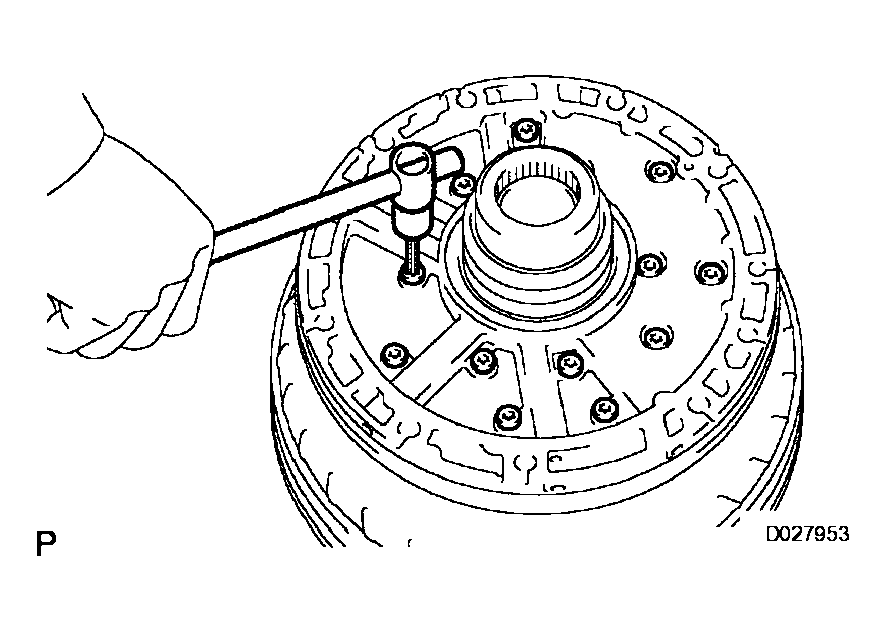

INSTALL STATOR SHAFT ASSEMBLY
1. Align the stator shaft with each bolt hole.
2. Install the 14 bolts.
  Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

  Fig 5: Identifying Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

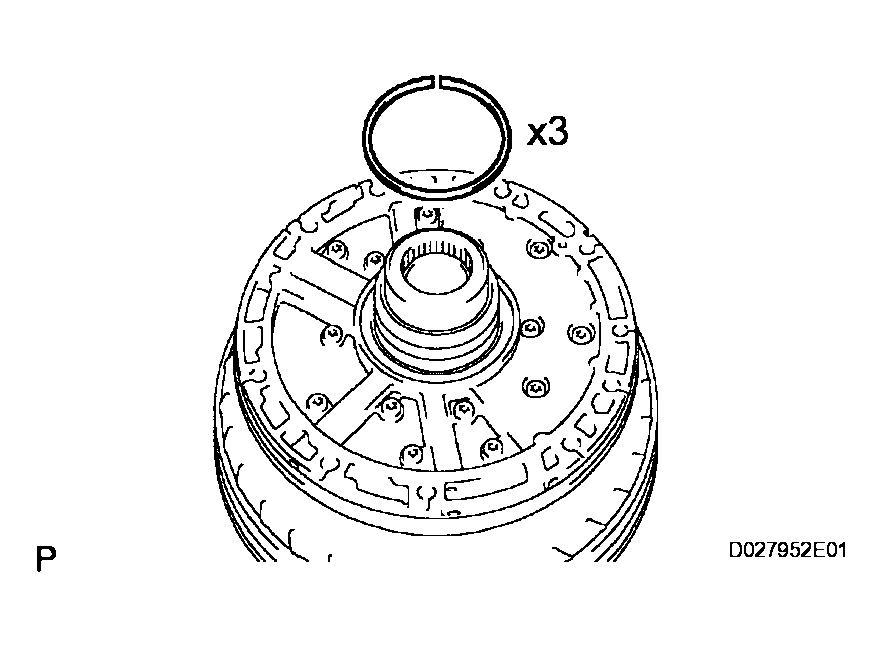

INSTALL CLUTCH DRUM OIL SEAL RING
1. Coat 3 new oil seal rings with ATF.
2. Squeeze the ends of the 3 oil seal rings together with the wrap distance 8 mm or less, and then install them to the starter shaft groove.
  NOTE: Do not expand the ring ends excessively.

  HINT:

  After installing the oil seal rings, check that they rotate smoothly.

  Fig 6: Identifying Clutch Drum Oil Seal Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT OIL PUMP DRIVE GEAR ROTATION (See REASSEMBLY )
INSTALL FRONT OIL PUMP BODY O-RING
1. Install a new O-ring to the oil pump assembly.

  Fig 7: Identifying Front Oil Pump Body O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
