Park / Neutral Position Switch: Adjustment

ADJUST PARK/NEUTRAL POSITION SWITCH ASSEMBLY
1. Loosen the bolt of the park/neutral position switch and move the shift lever to the N position.
2. Align the groove and the neutral basic line.
3. Hold the switch in position and tighten the bolt.
  Torque: 13 N*m (130 kgf*cm, 9 ft.*lbf)
4. After adjustment, perform the inspection (see ON-VEHICLE INSPECTION ).

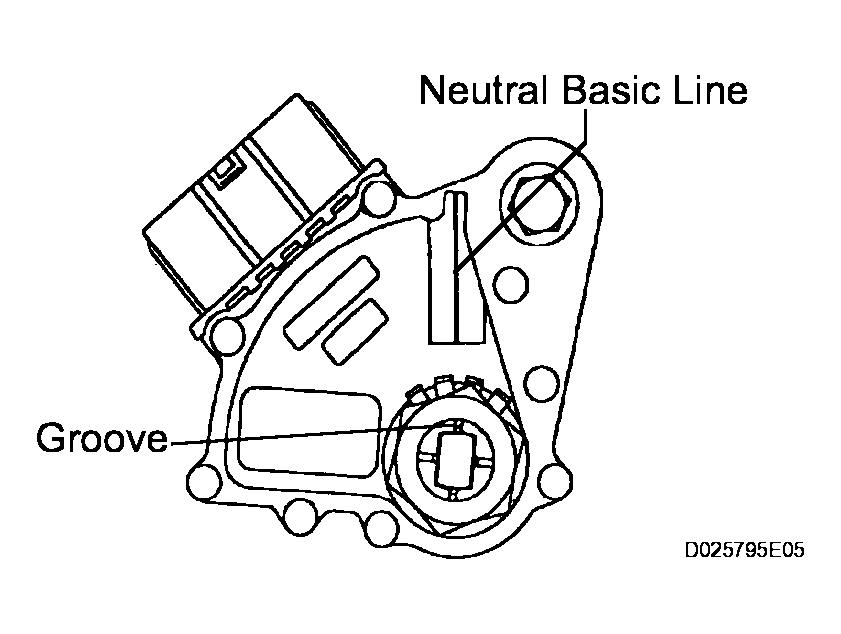

  Fig 1: Aligning Groove And Neutral Basic Line
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
