Park / Neutral Position Switch: Installation

1. Install the park/neutral position switch to the automatic transmission.
2. Temporarily install the bolt.
   Fig 1: Identifying Park/Neutral Position Switch Mounting Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

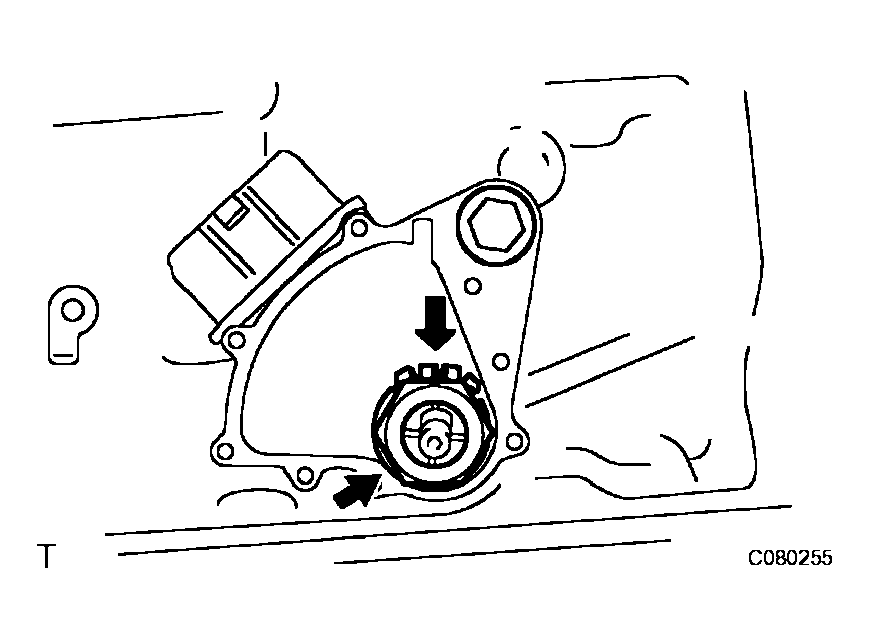

3. Install a new lock washer and the nut.

   Torque: 6.9 N*m (70 kgf*cm, 61 in.*lbf)

   Fig 2: Identifying New Lock Washer And Nut

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Temporarily install the control shaft lever.
   Fig 3: Identifying Control Shaft Lever

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

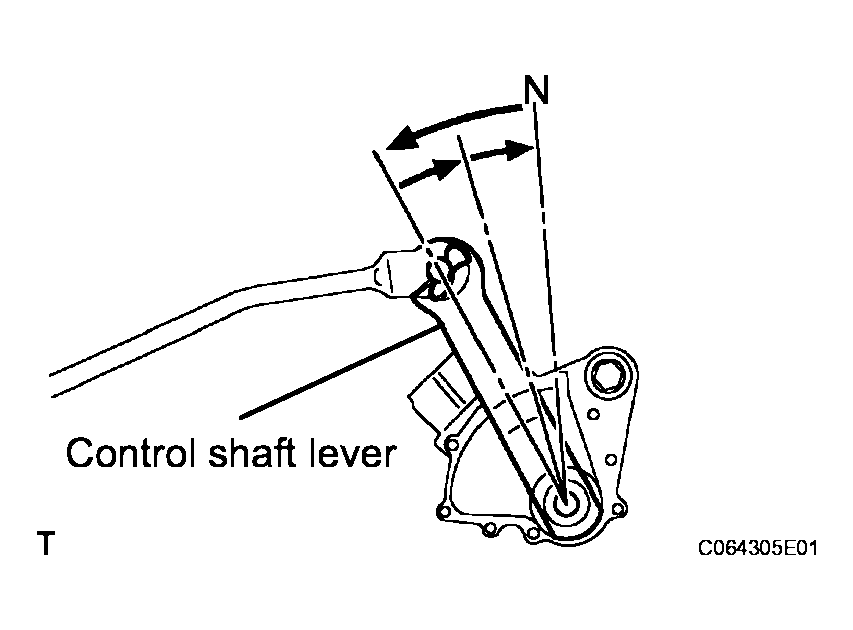

5. Turn the control shaft lever counterclockwise until it stops, and turn it clockwise 2 notches to set it to the N position.
6. Remove the transmission control shaft lever.
   Fig 4: Turning Control Shaft Lever Clockwise For Setting It To N Position

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

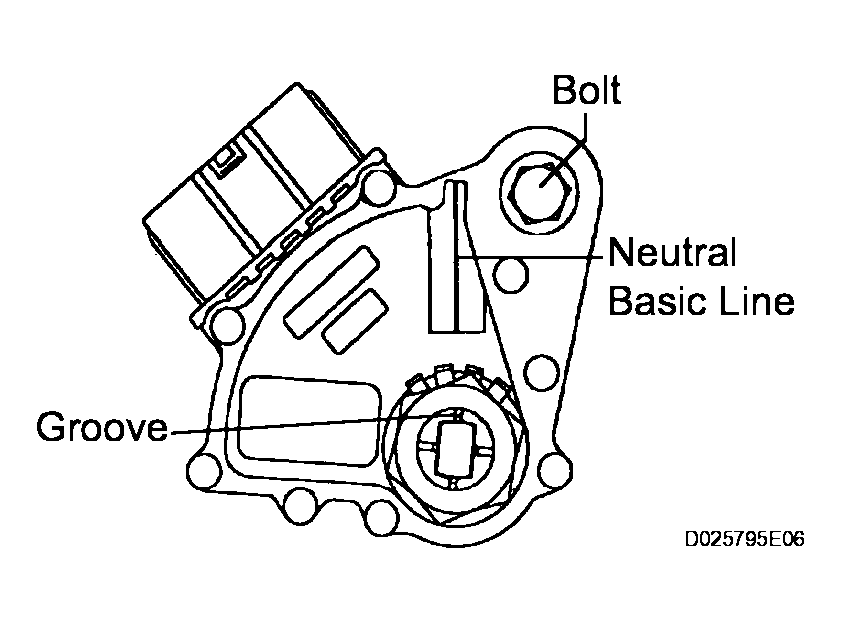

7. Align the neutral basic line with the switch groove, and tighten the adjusting bolt.

   Torque: 13 N*m (130 kgf*cm, 9 ft.*lbf)

   Fig 5: Aligning Neutral Basic Line With Switch Groove

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

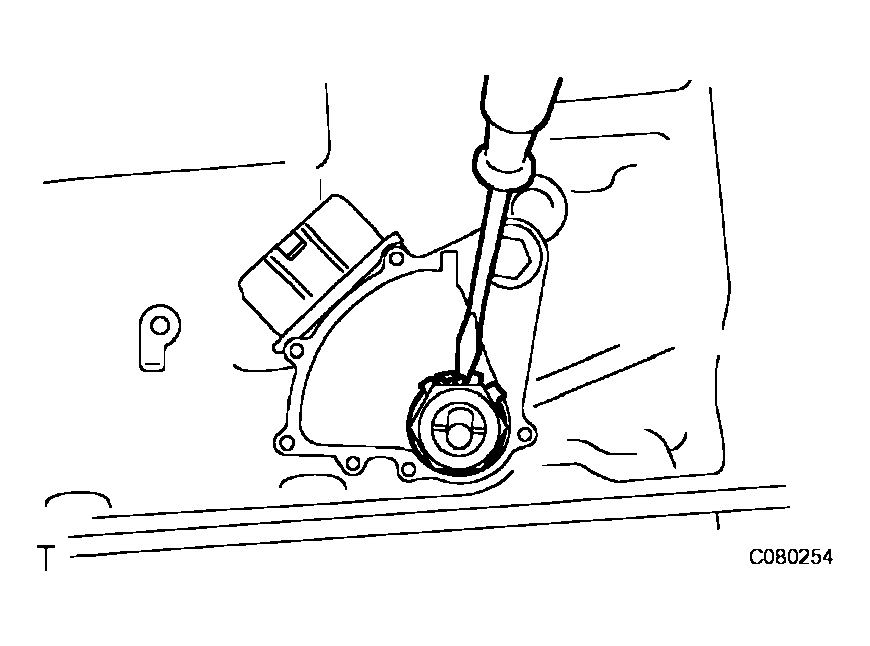

8. Using a screwdriver, bend the tabs of the lock washer.
   Fig 6: Bending Tabs Of Lock Washer

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

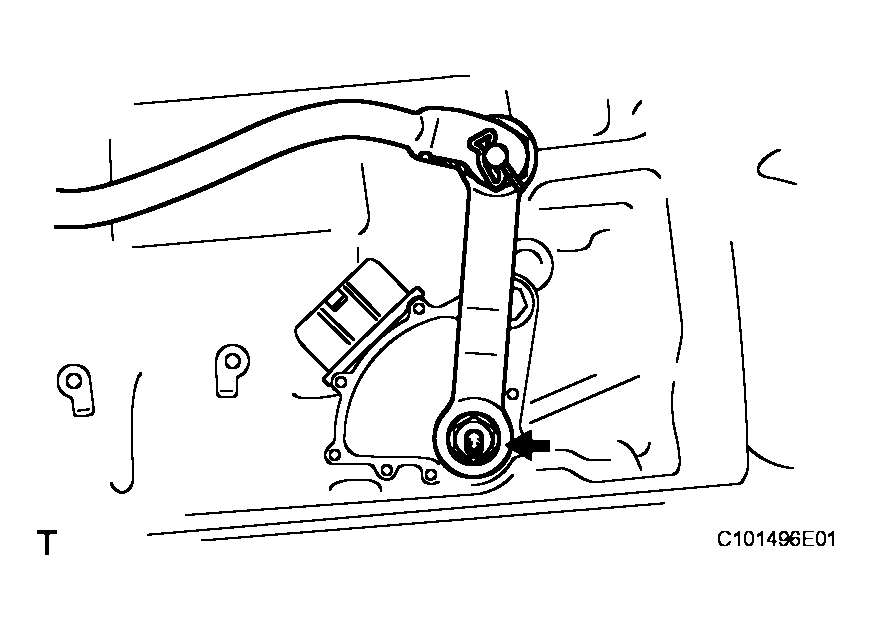

9. Install the transmission control shaft lever RH with the nut.

   Torque: 16 N*m (160 kgf*cm, 12 ft.*lbf)

   Fig 7: Identifying Transmission Control Shaft Lever RH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

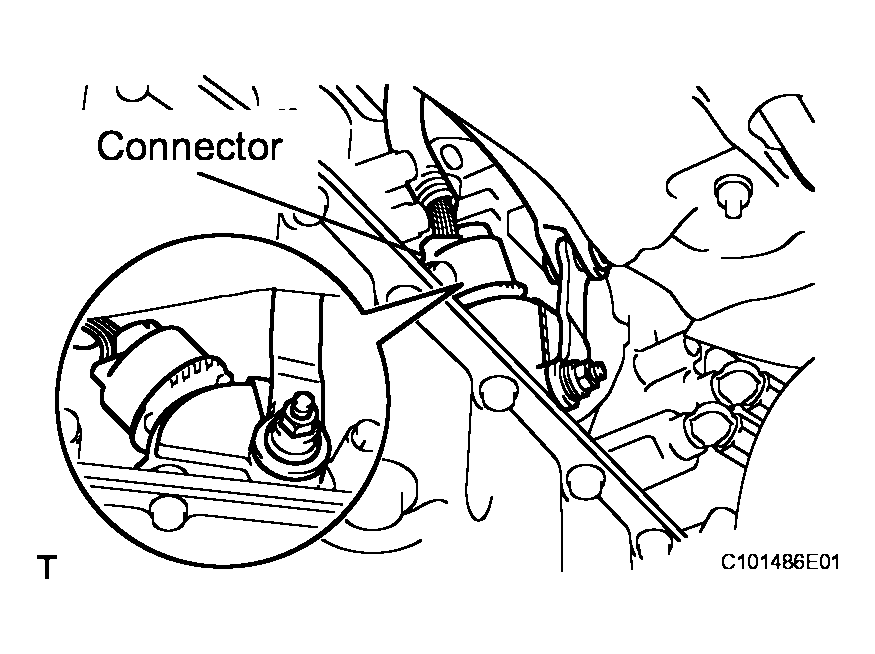

10. Connect the park/neutral position switch connector.
