Transmission Wire: Installation

1. Coat a new O-ring with ATF and install it to the transmission wire.
   Fig 1: Identifying Transmission Wire Harness O-Ring

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the transmission wire with the bolt.

   Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

3. Connect the transmission wire connector.

1. Coat an O-ring of the ATF temperature sensor with ATF.

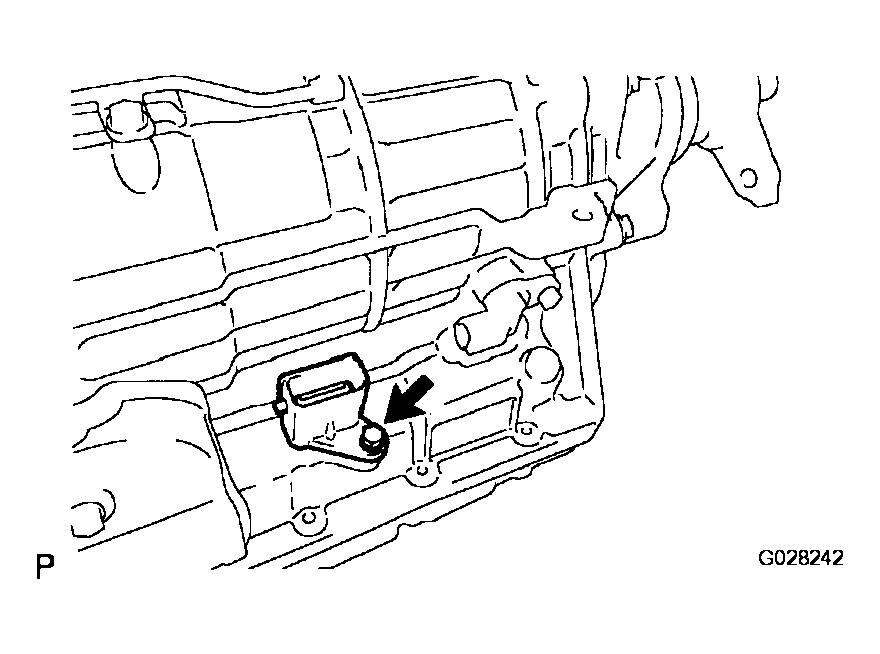

   Fig 2: Identifying Transmission Wire With Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the 9 connectors to the solenoid valves.
   Fig 3: Locating 9 Electrical Connectors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the 2 clamps with the 2 bolts.

   Torque: Bolt A

   6.4 N*m (65 kgf*cm, 57 in.*lbf) Bolt B

   10 N*m (102 kgf*cm, 7 ft.*lbf)

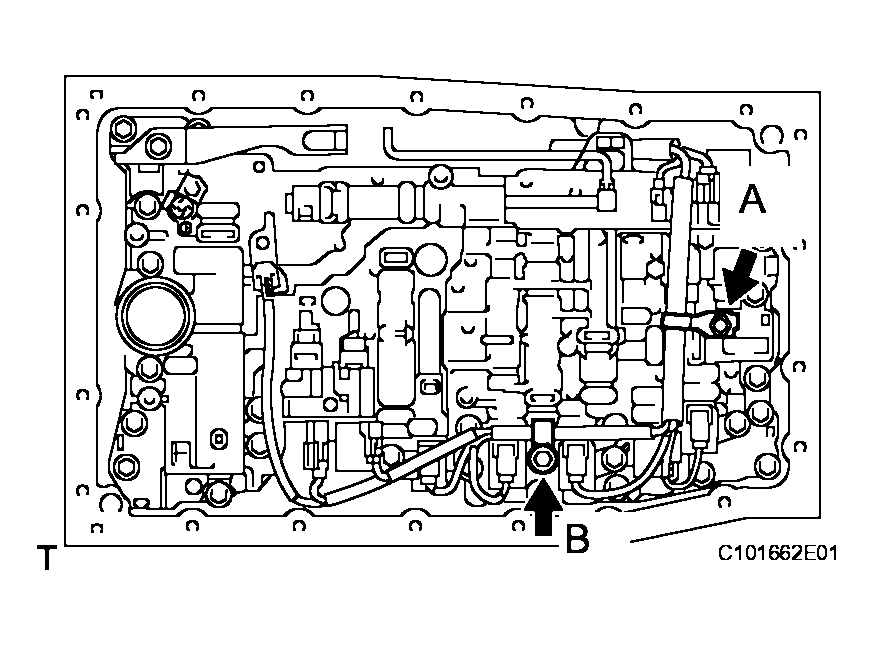

   Fig 4: Identifying Clamps With Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the ATF temperature sensor and lock plate with the bolt.

   Torque: 10 N*m (100 kgf*cm, 7 ft.*lbf)

1. Coat a new O-ring with ATF.
   Fig 5: Locating ATF Temperature Sensor Locking Plate Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the O-ring.

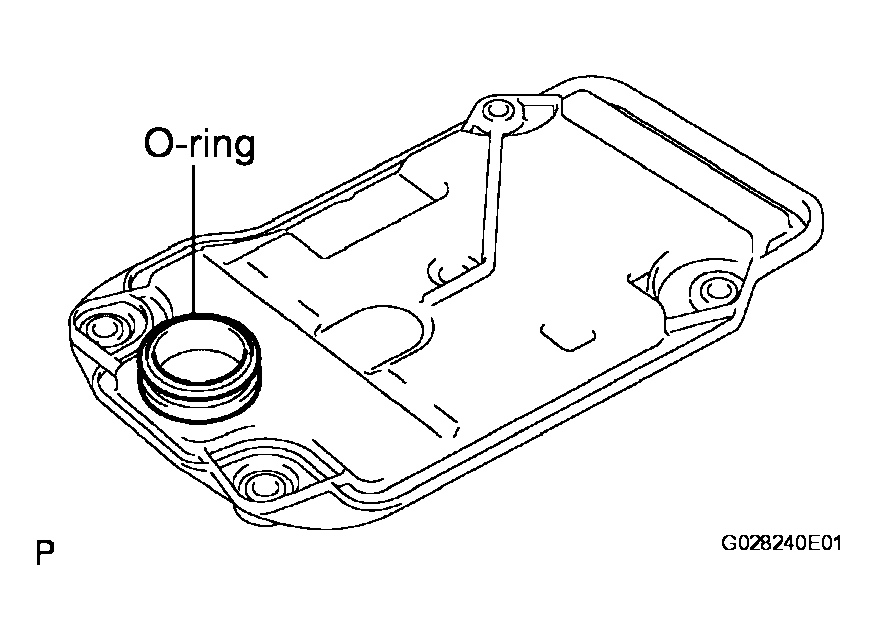

   Fig 6: Identifying O-Ring

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the oil strainer with the 4 bolts.

   Torque: 10 N*m (100 kgf*cm, 7 ft.*lbf)

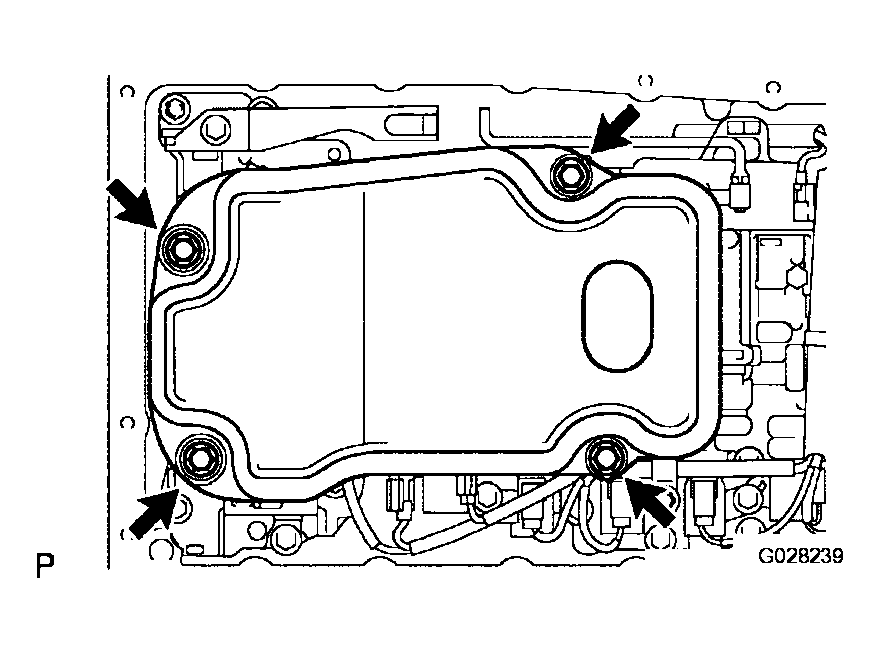

   Fig 7: Identifying Oil Strainer

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the 3 magnets in the oil pan.

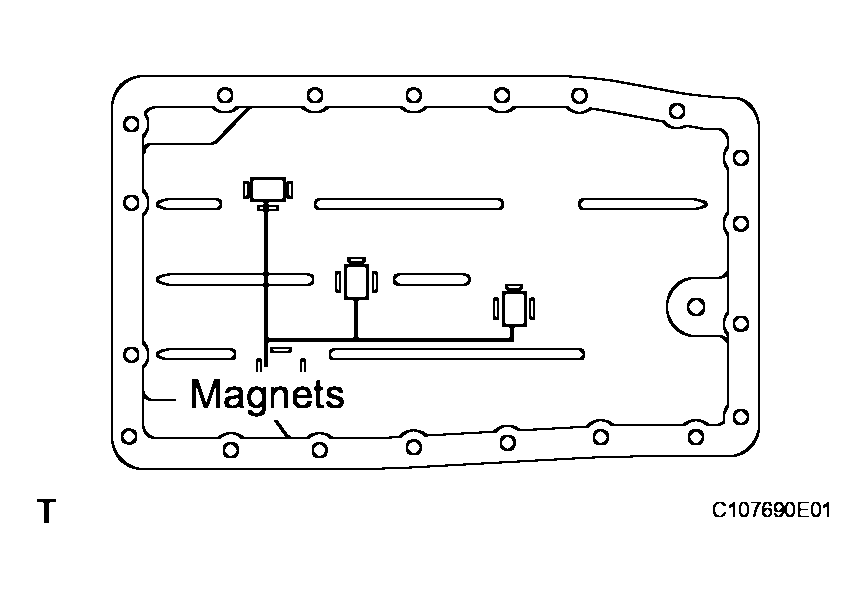

   Fig 8: Identifying Magnets In Oil Pan

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install a new gasket and the oil pan to the transmission case with the 20 bolts.

   Torque: 4.4 N*m (45 kgf*cm, 39 in.*lbf)

   Fig 9: Identifying Oil Pan Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

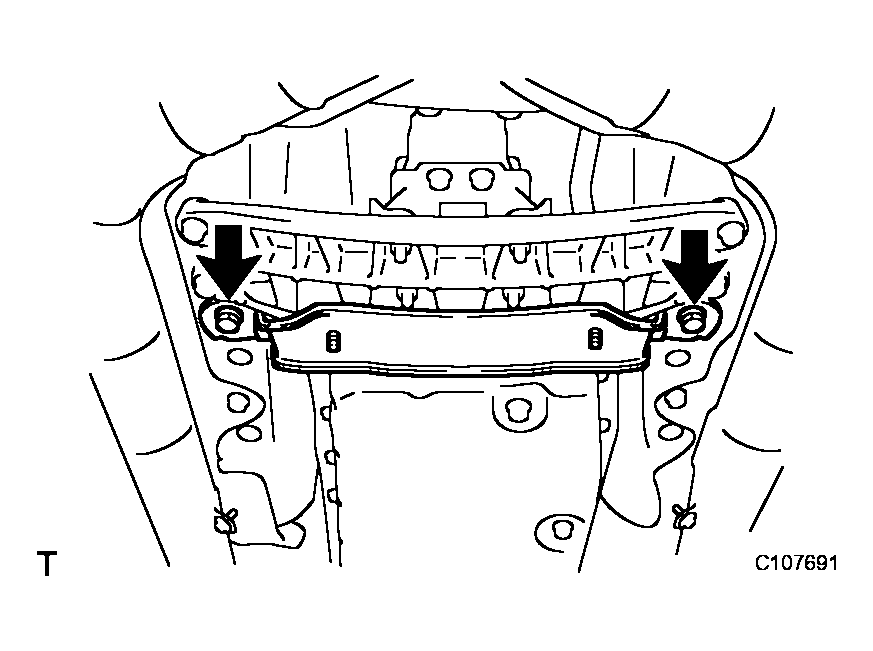

1. Install the engine under cover air guide bracket with the 2 bolts.

   Torque: 26 N*m (260 kgf*cm, 19 ft.*lbf)

(See AUTOMATIC TRANSMISSION FLUID  )

(See MECHANICAL SYSTEM TESTS  )

(INITIALIZATION )
