Valve Body: Disassembly

REMOVE SHIFT SOLENOID VALVE SL2
1. Remove the bolt, the 2 straight pins and the lock plate.
2. Remove the shift solenoid valve SL2.

  Fig 1: Identifying Shift Solenoid Valve SL2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT SOLENOID VALVE SLU
1. Remove the shift solenoid valve SLU.

  Fig 2: Identifying Shift Solenoid Valve SLU
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT SOLENOID VALVE SLT
1. Remove the bolt, the 2 straight pins and the lock plate.
2. Remove the shift solenoid valve SLT.

  Fig 3: Identifying Shift Solenoid Valve SLT
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT SOLENOID VALVE SL1
1. Remove the shift solenoid valve SL1.

  Fig 4: Identifying Shift Solenoid Valve SL1
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT SOLENOID VALVE SR
1. Remove the bolt and the shift solenoid valve SR.

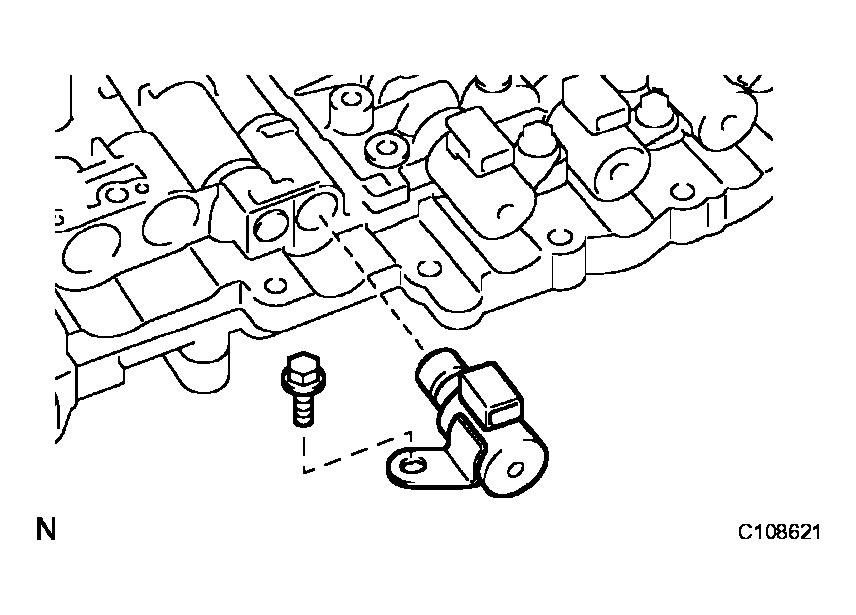

  Fig 5: Identifying Bolt And Shift Solenoid Valve SR
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT SOLENOID VALVE S1
1. Remove the shift solenoid valve S1.

  Fig 6: Identifying Shift Solenoid Valve S1
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT SOLENOID VALVE S4
1. Remove the bolt and the shift solenoid valve S4.

  Fig 7: Identifying Shift Solenoid Valve S4
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT SOLENOID VALVE S2
1. Remove the shift solenoid valve S2.

  Fig 8: Identifying Shift Solenoid Valve S2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT SOLENOID VALVE S3
1. Remove the bolt and the shift solenoid valve S3.

  Fig 9: Identifying Shift Solenoid Valve S3
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
