Valve Body: Reassembly

INSTALL SHIFT SOLENOID VALVE S3
1. Install the shift solenoid valve S3 with the bolt.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

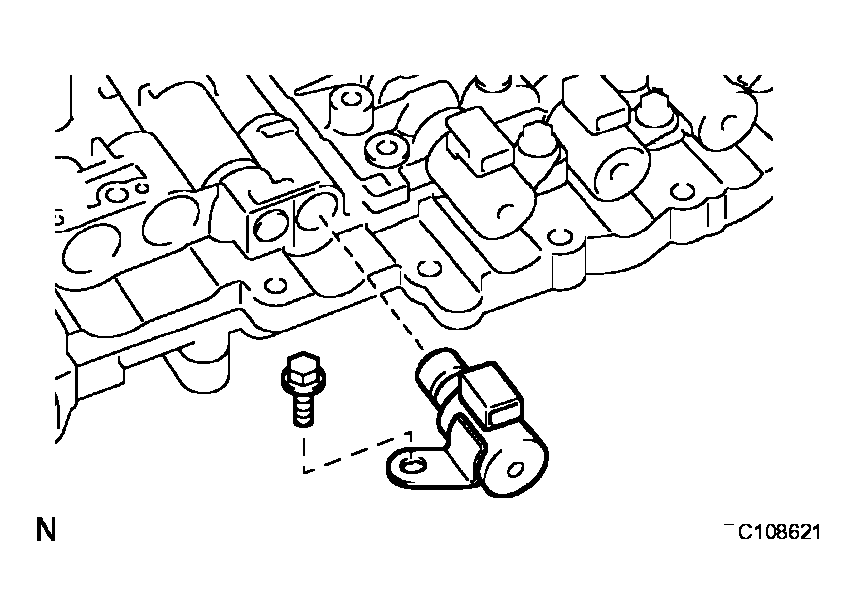

  Fig 1: Identifying Shift Solenoid Valve S3
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT SOLENOID VALVE S2
1. Install the shift solenoid valve S2.

  Fig 2: Identifying Shift Solenoid Valve S2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT SOLENOID VALVE S4
1. Install the shift solenoid valve S4 with the bolt.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  Fig 3: Identifying Shift Solenoid Valve S4
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT SOLENOID VALVE S1
1. Install the shift solenoid valve S1.

  Fig 4: Identifying Shift Solenoid Valve S1
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT SOLENOID VALVE SR
1. Install the shift solenoid valve SR with the bolt.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  Fig 5: Identifying Shift Solenoid Valve SR With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT SOLENOID VALVE SL1
1. Install the shift solenoid valve SL1.

  Fig 6: Identifying Shift Solenoid Valve SL1
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT SOLENOID VALVE SLT
1. Install the shift solenoid valve SLT.
2. Install the bolt, the 2 straight pins and the lock plate.
  Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)

  Fig 7: Identifying Shift Solenoid Valve SLT
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT SOLENOID VALVE SLU
1. Install the shift solenoid valve SLU.

  Fig 8: Identifying Shift Solenoid Valve SLU
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT SOLENOID VALVE SL2
1. Install the shift solenoid valve SL2.
2. Install the bolt, the 2 straight pins and the lock plate.
  Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)

  Fig 9: Identifying Shift Solenoid Valve SL2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
