Transfer Case Front Oil Seal: Components

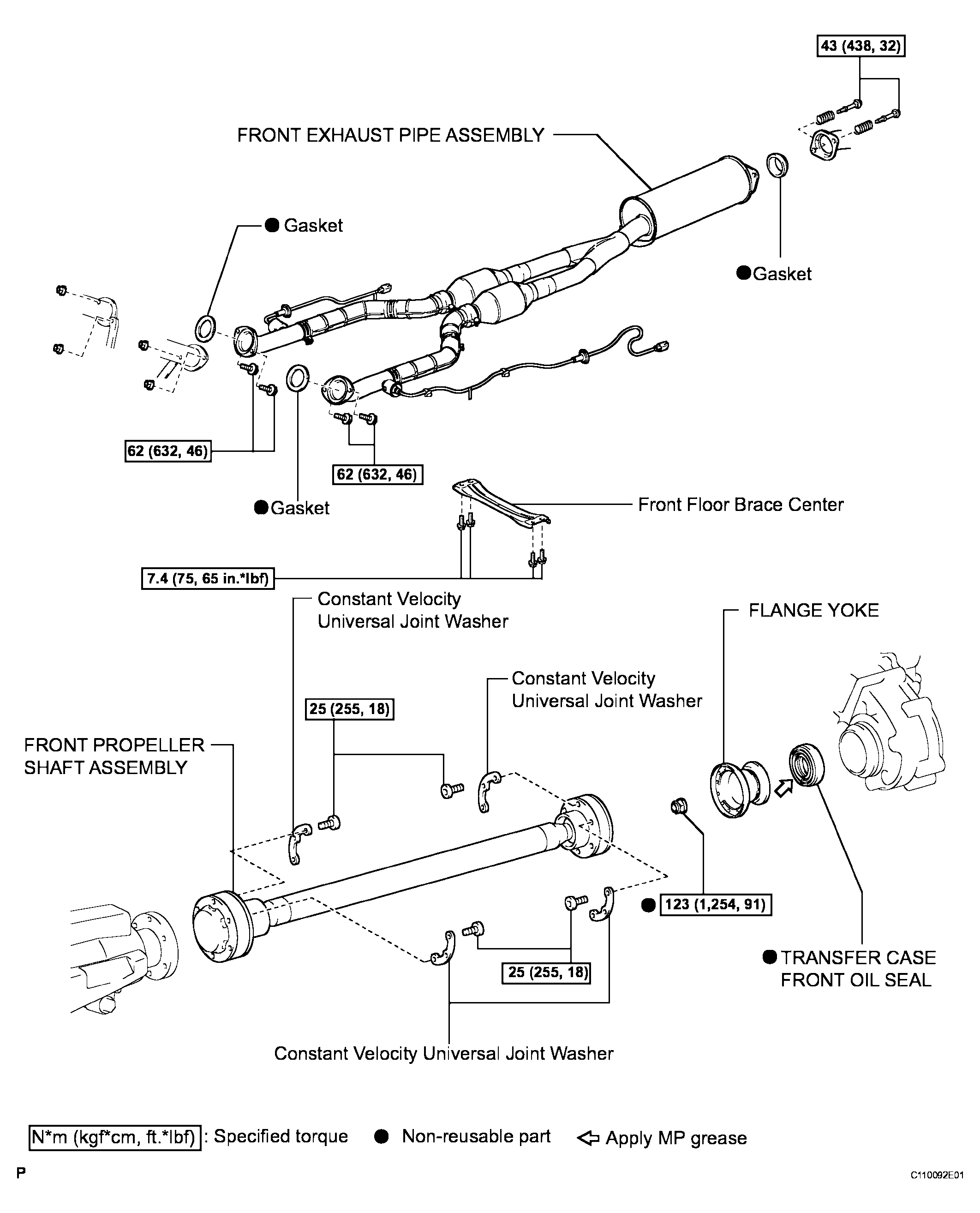

Fig 1: Transfer Case Front Oil Seal Components With Torque Specifications
G04028842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
