Transfer Valve Body Assembly: Removal

REMOVE FRONT EXHAUST PIPE ASSEMBLY
(REMOVAL )
DRAIN AUTOMATIC TRANSMISSION FLUID ( AUTOMATIC TRANSMISSION FLUID )
SUPPORT AUTOMATIC WITH TRANSFER TRANSMISSION ASSEMBLY ( AUTOMATIC TRANSMISSION ASSEMBLY )
REMOVE ENGINE REAR MOUNTING MEMBER (See REMOVAL )
REMOVE TRANSFER DYNAMIC DAMPER (See REMOVAL )
REMOVE TRANSFER OIL PAN (See REMOVAL )
REMOVE TRANSFER VALVE BODY ASSEMBLY
1. Remove the 4 bolts and the transfer upper valve body.
2. Disconnect the transfer wire connector from the transfer control solenoid.

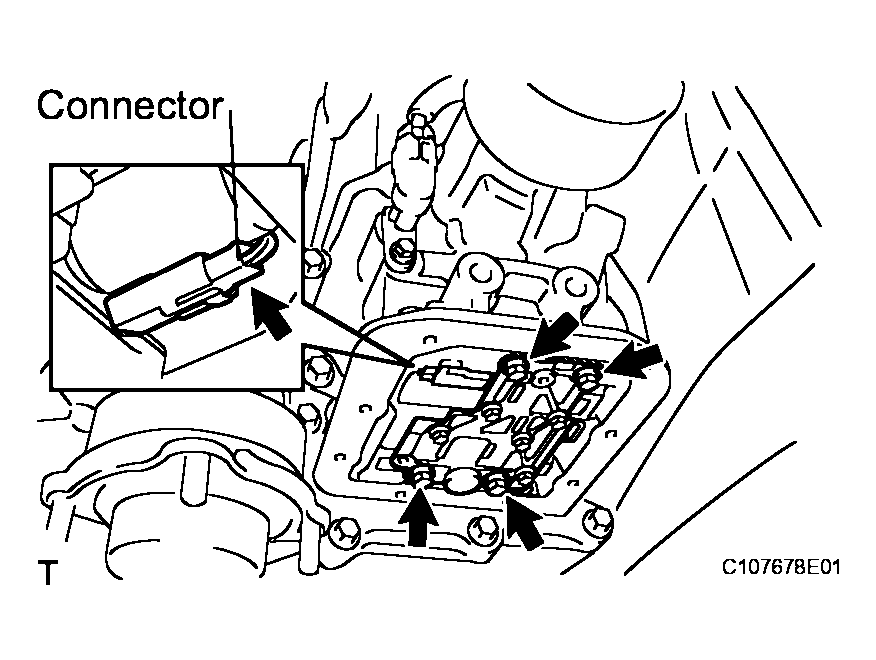

  Fig 1: Identifying Transfer Valve Body Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSFER CONTROL SOLENOID (See )
