Transfer Wire: Installation

1. Coat the transfer wire O-ring with ATF.

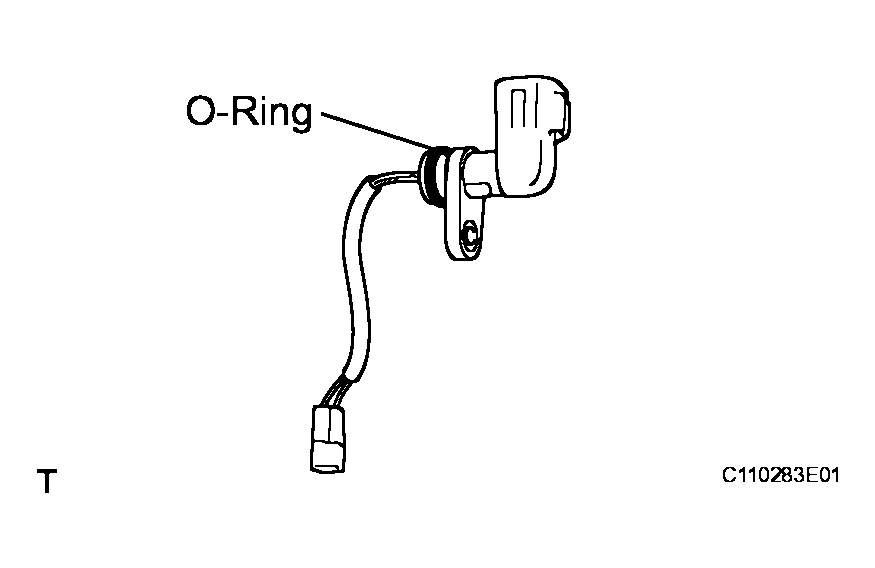

   Fig 1: Identifying Transfer Wire O-Ring

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the transfer wire with the bolt.

   Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

3. Connect the 2 transfer wire connectors to the transfer control solenoid.
4. Install the transfer upper valve body with the 4 bolts.

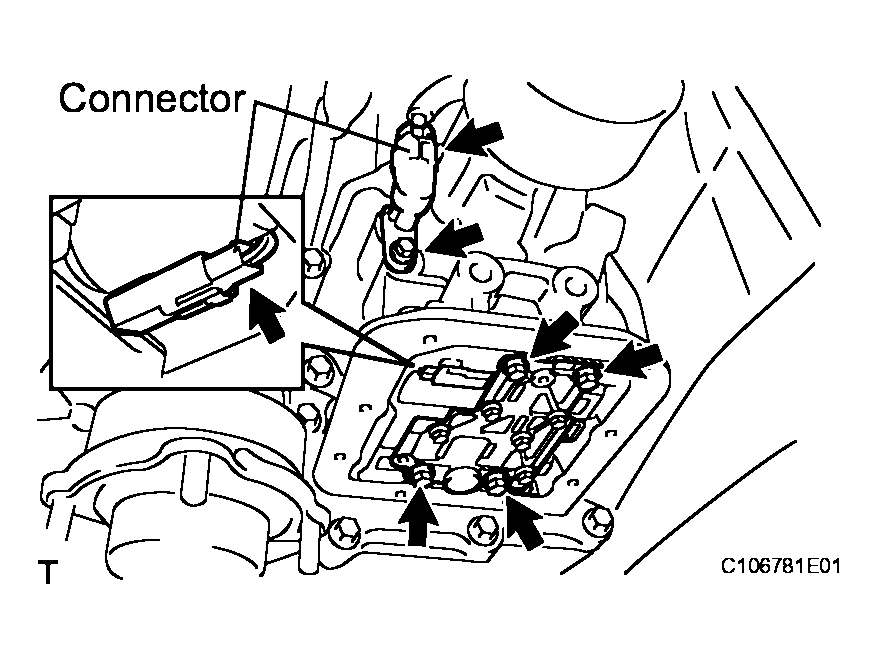

   Fig 2: Identifying Transfer Wire With Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

1. Install the transfer oil cleaner magnet to the transfer oil pan.

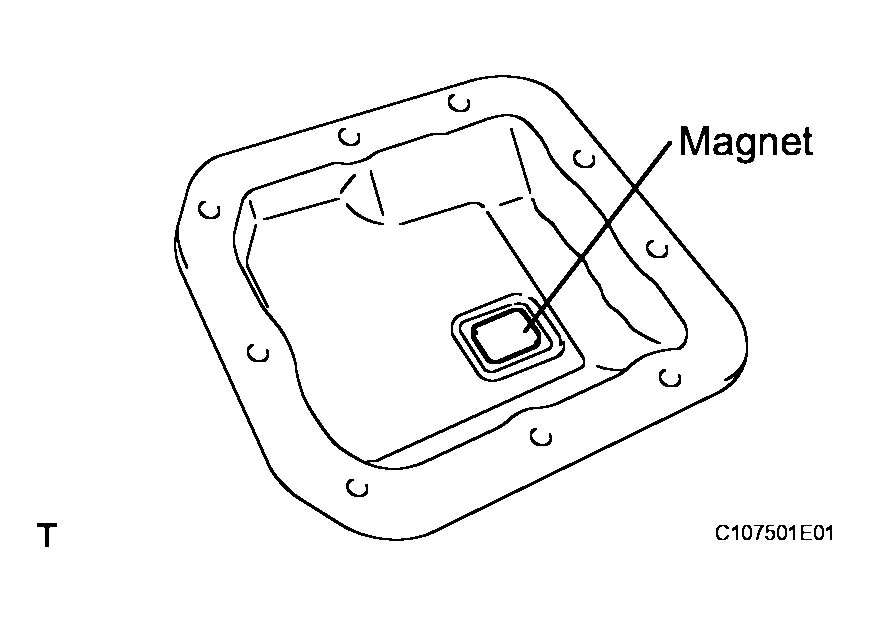

   Fig 3: Locating Transfer Oil Cleaner Magnet

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove all residual FIPG material from the contacting surfaces using gasoline or alcohol.
3. Apply seal packing to the transfer chain case front as shown in the illustration.

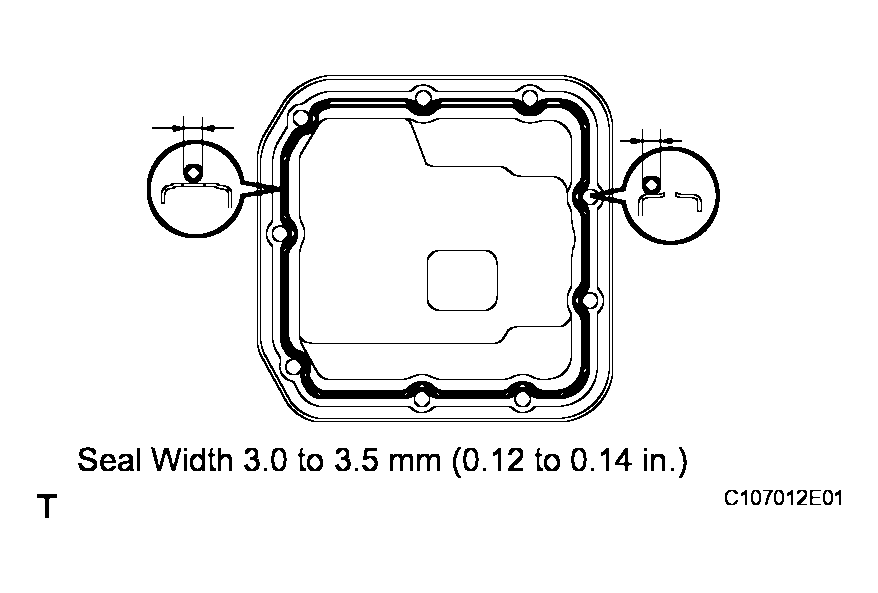

   Fig 4: Applying Seal Packing To Transfer Chain Case Front

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Seal packing:

   Part No. 08826-00090, THREE BOND or equivalent

4. Temporarily tighten the 9 bolts in several steps, and then tighten to the specified torque.

   Torque: 7.4 N*m (75 kgf*cm, 65 in.*lbf)

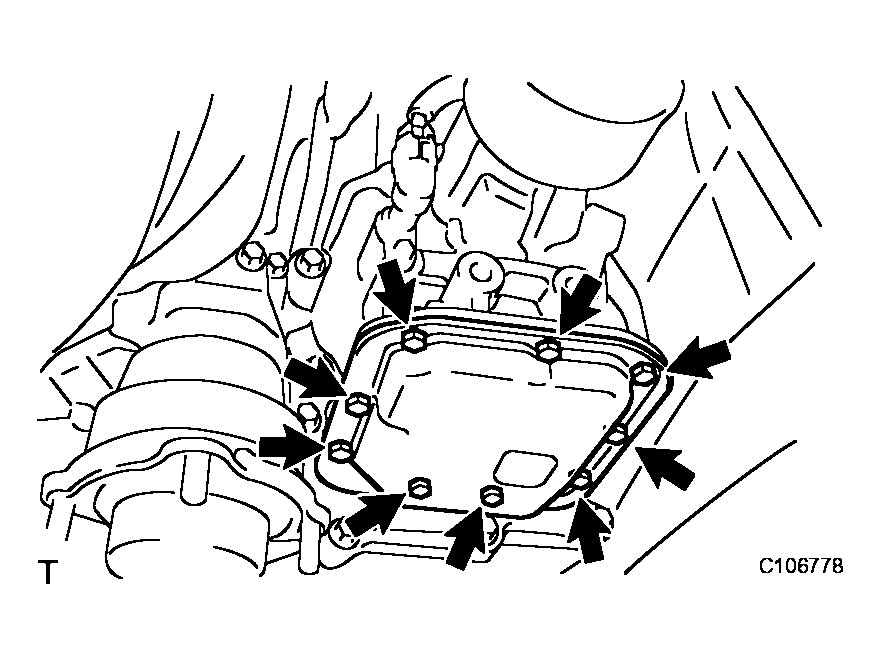

   Fig 5: Identifying Tightening Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the transfer dynamic damper with the 2 bolts.

   Torque: 52 N*m (530 kgf*cm, 38 ft.*lbf)

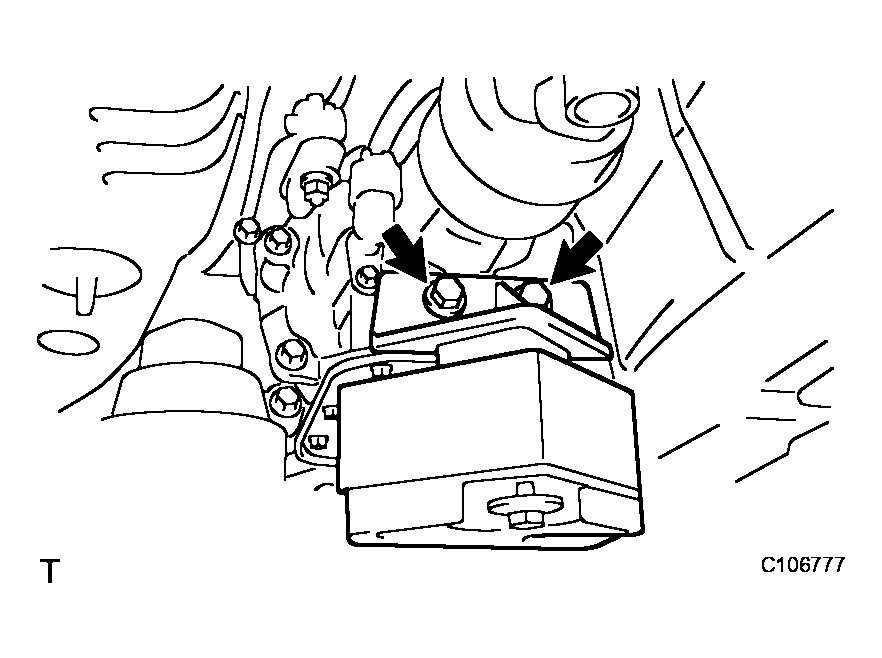

   Fig 6: Identifying Transfer Dynamic Damper With 2 Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the engine rear mounting member with the 4 bolts and 3 nuts.

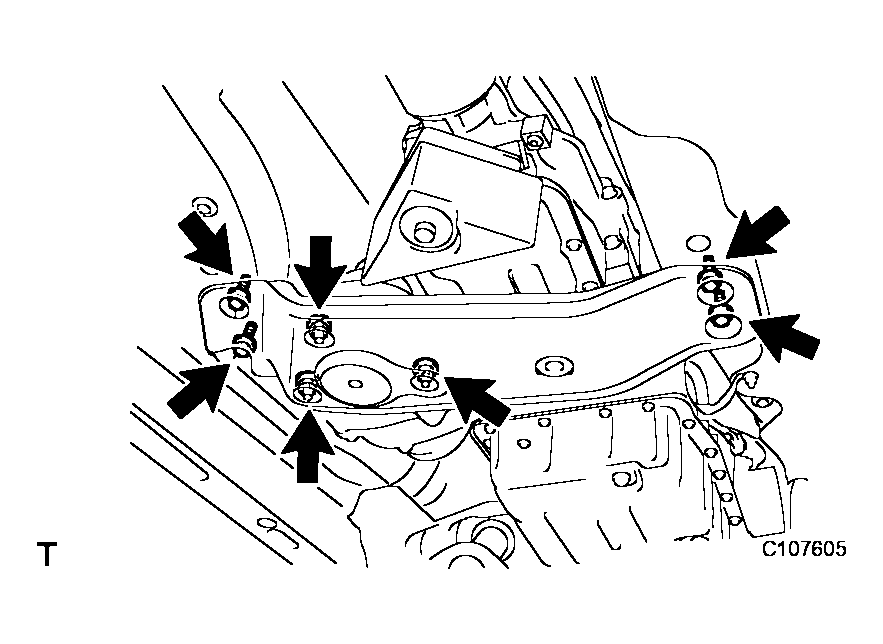

   Fig 7: Identifying Engine Rear Mounting Member With Bolts And Nuts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf) (Bolt) 38 N*m (387 kgf*cm, 28 ft.*lbf) (Nut)

(INSTALLATION )
