Transfer Wire: Removal

REMOVE FRONT EXHAUST PIPE ASSEMBLY
(REMOVAL )
DRAIN AUTOMATIC TRANSMISSION FLUID ( AUTOMATIC TRANSMISSION FLUID )
SUPPORT AUTOMATIC WITH TRANSFER TRANSMISSION ASSEMBLY ( AUTOMATIC TRANSMISSION ASSEMBLY )
REMOVE ENGINE REAR MOUNTING MEMBER
1. Remove the 4 bolts, 3 nuts and engine rear mounting member.

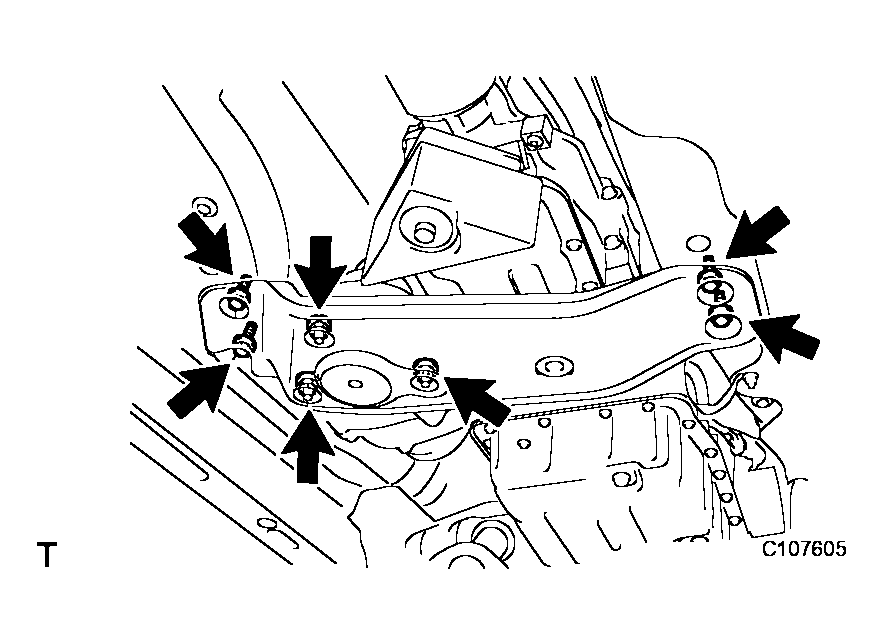

  Fig 1: Identifying Engine Rear Mounting Member Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSFER DYNAMIC DAMPER
1. Remove the 2 bolts and the transfer dynamic damper.

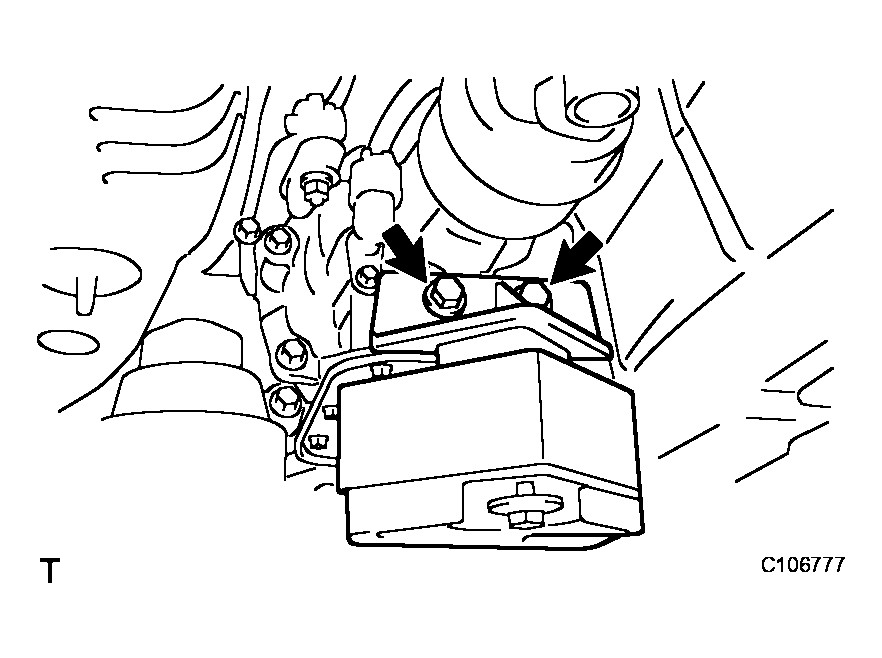

  Fig 2: Locating Transfer Dynamic Damper Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSFER OIL PAN
1. Remove the 9 bolts.

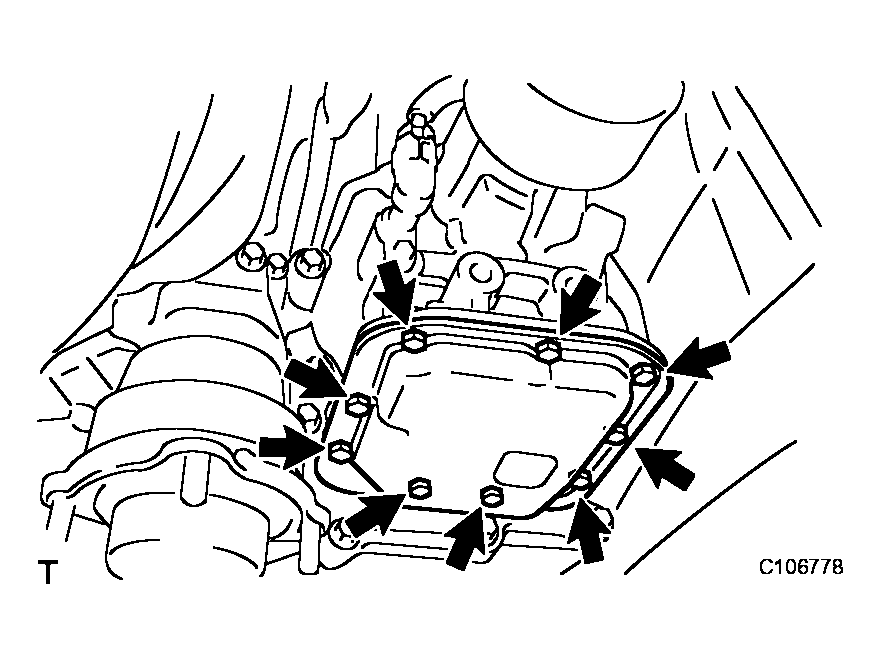

  Fig 3: Identifying Transfer Oil Pan Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Insert the blade of SST between the transfer oil pan and transfer case. Cut through the sealer and remove the transfer oil pan.

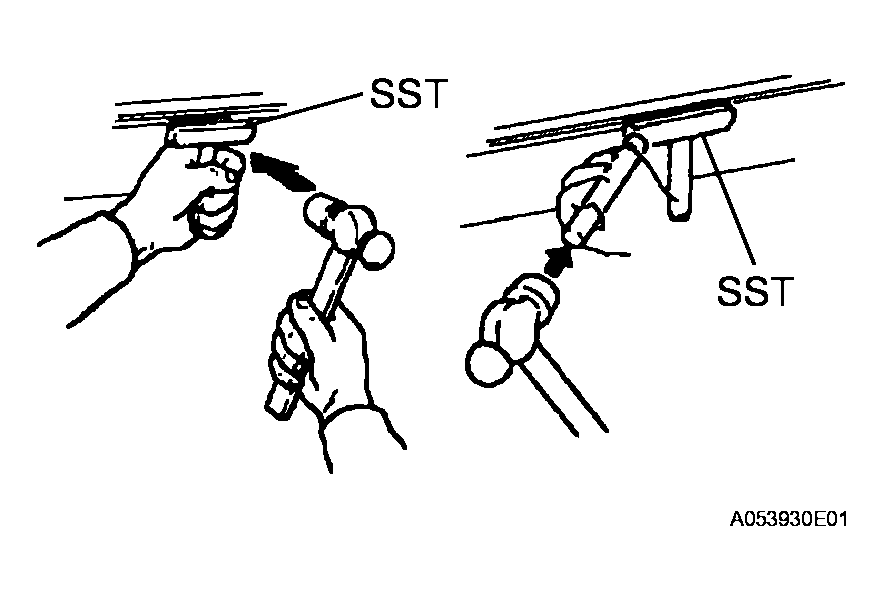

  Fig 4: Identifying Transfer Oil Pan Using Blade Of SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09032-00100

  NOTE: Do not damage the contact surface of the transfer oil pan.
3. Remove the transfer oil cleaner magnet from the transfer oil pan.
  NOTE:
  - Clean the inside of the oil pan thoroughly, removing all metal shavings, sludge and any other foreign objects.
  - Remove any metal shavings from the magnet.

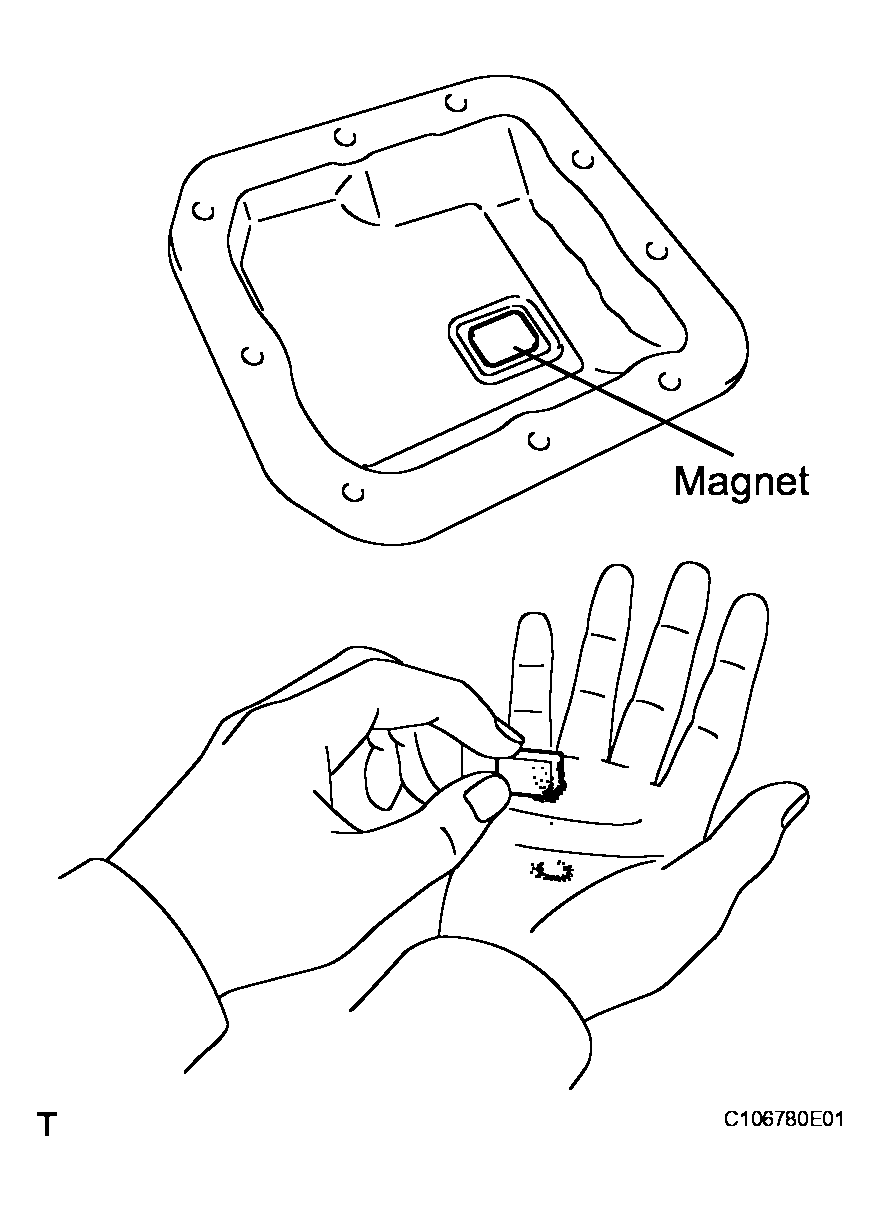

  Fig 5: Identifying Metal Shavings From Magnet
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSFER WIRE
1. Remove the 4 bolts and the transfer upper valve body.
2. Disconnect the 2 transfer wire connectors.
3. Remove the bolt and the transfer wire.

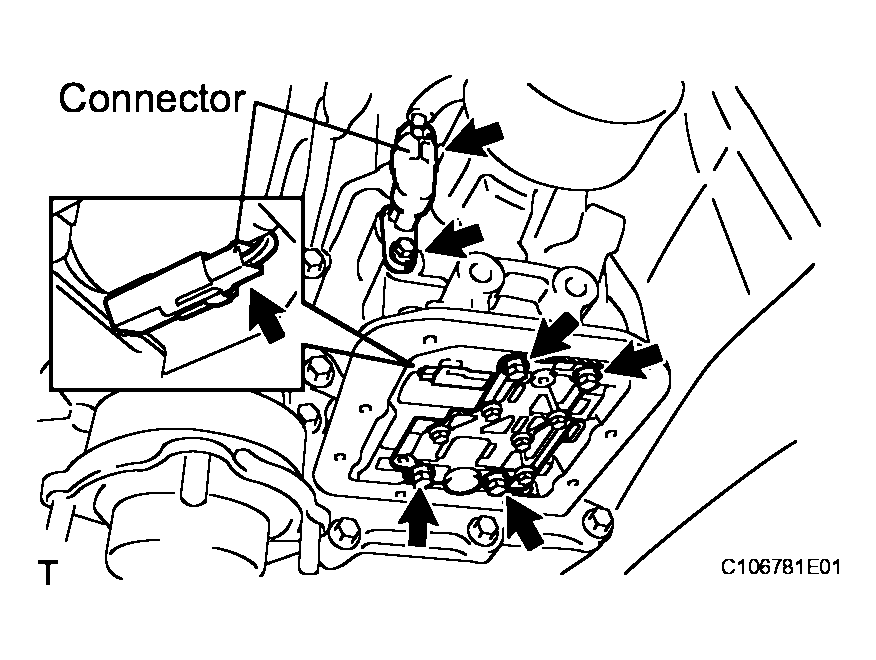

  Fig 6: Locating Transfer Wire Connectors And Upper Valve Body Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
