Engine Control: Notes

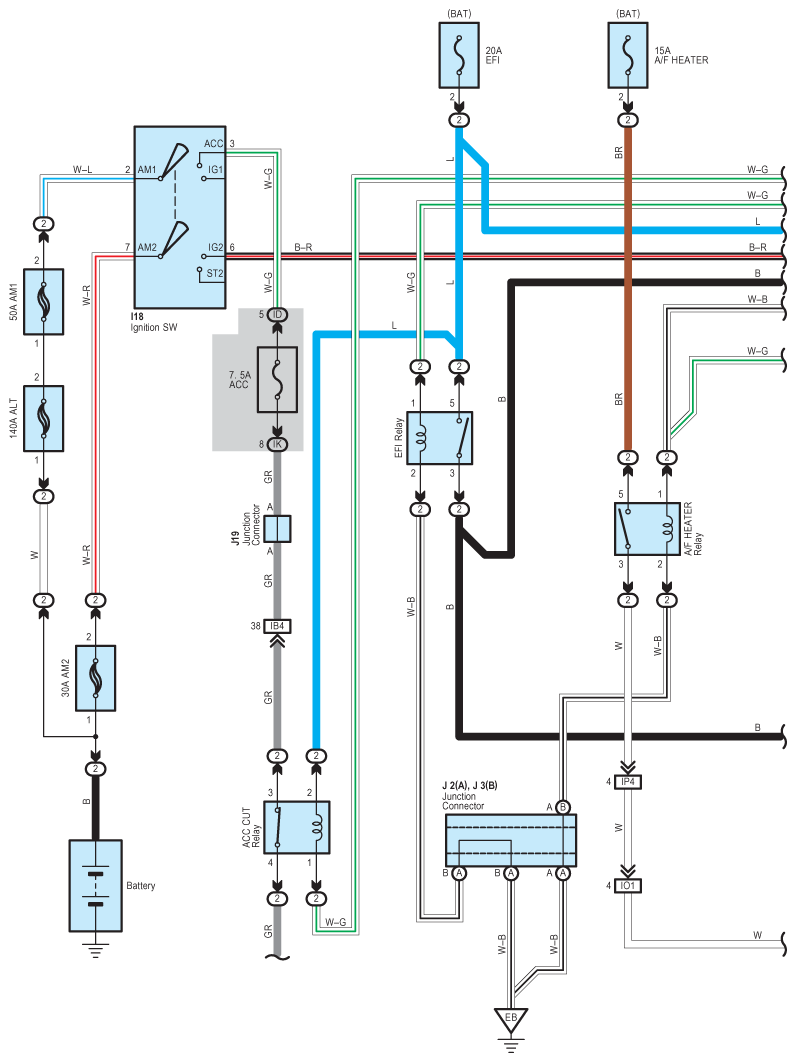

Fig 1: Engine Control Wiring Diagram (1 Of 11)

G08910013

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

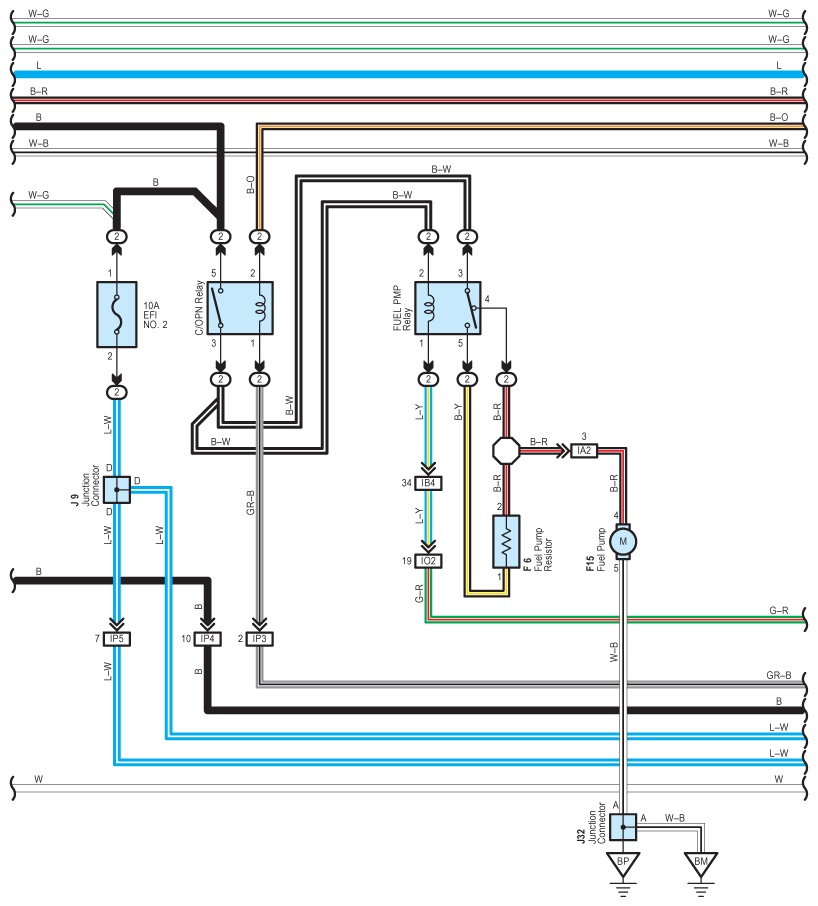

Fig 2: Engine Control Wiring Diagram (2 Of 11)

G08910014

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

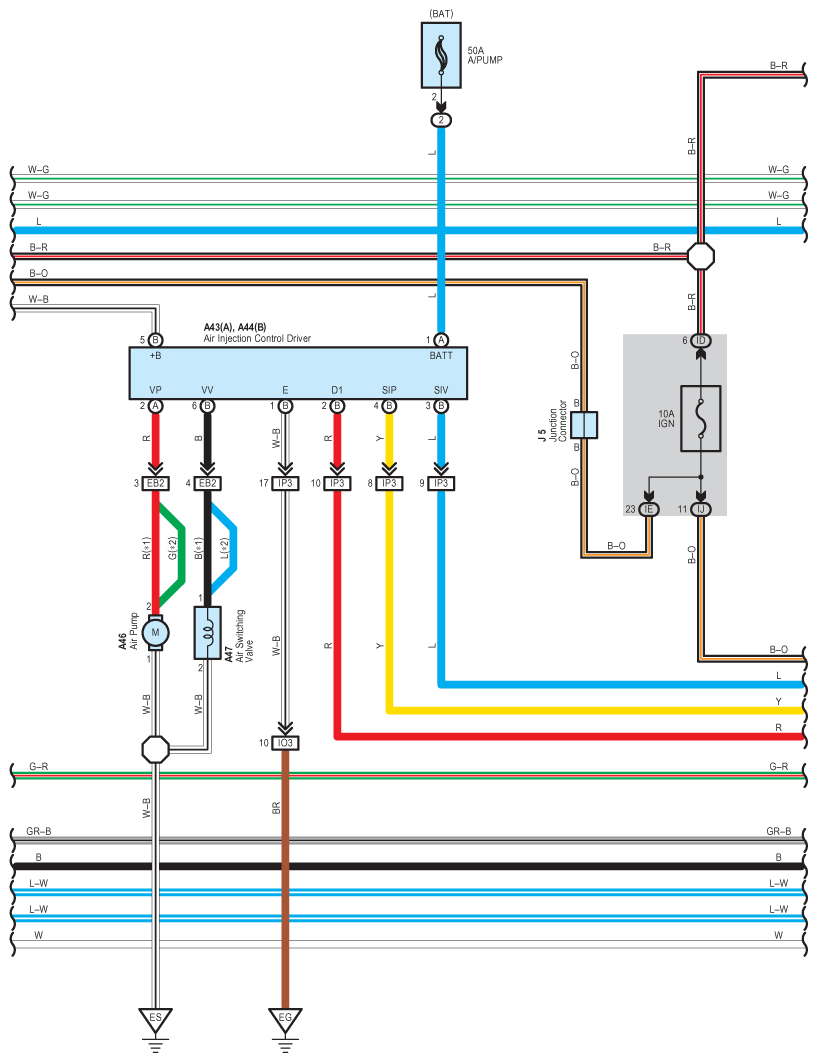

Fig 3: Engine Control Wiring Diagram (3 Of 11)

G08910015

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

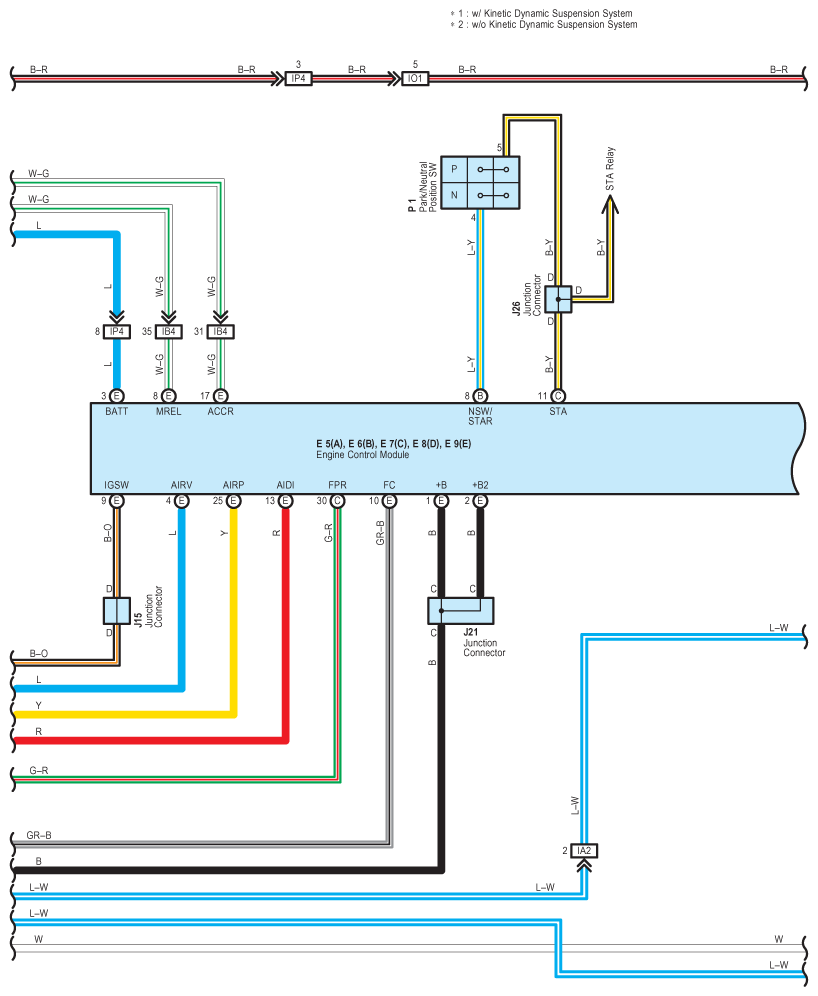

Fig 4: Engine Control Wiring Diagram (4 Of 11)

G08910016

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

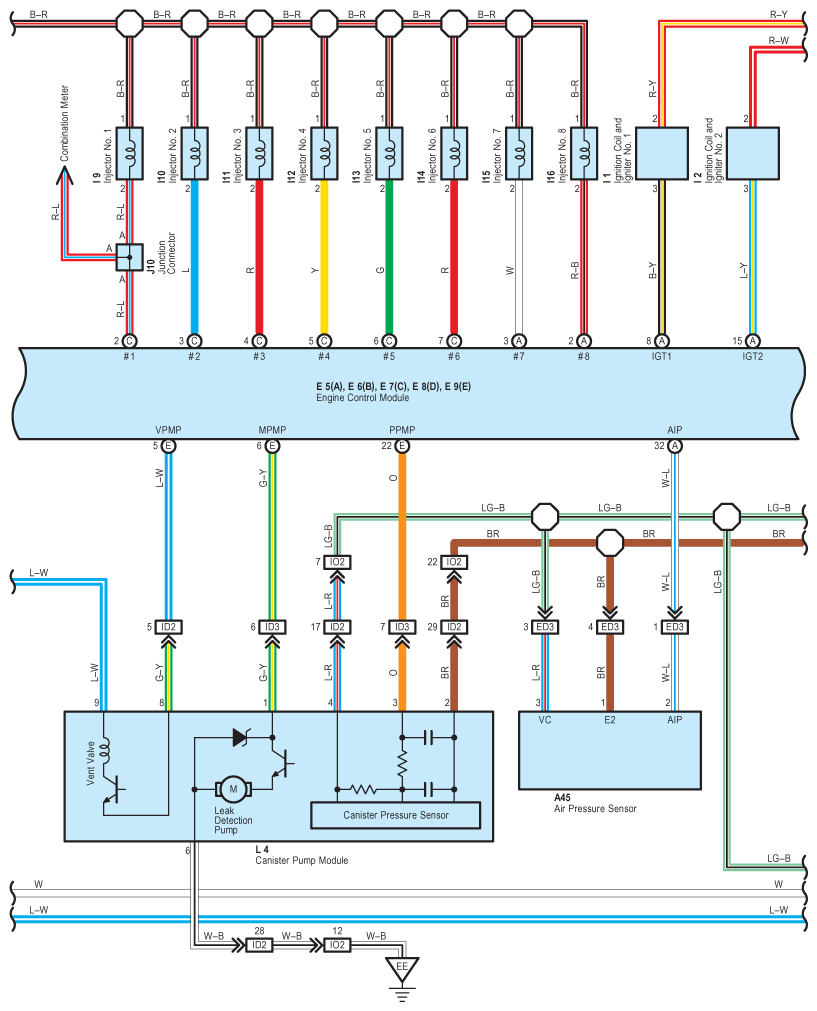

Fig 5: Engine Control Wiring Diagram (5 Of 11)

G08910017

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

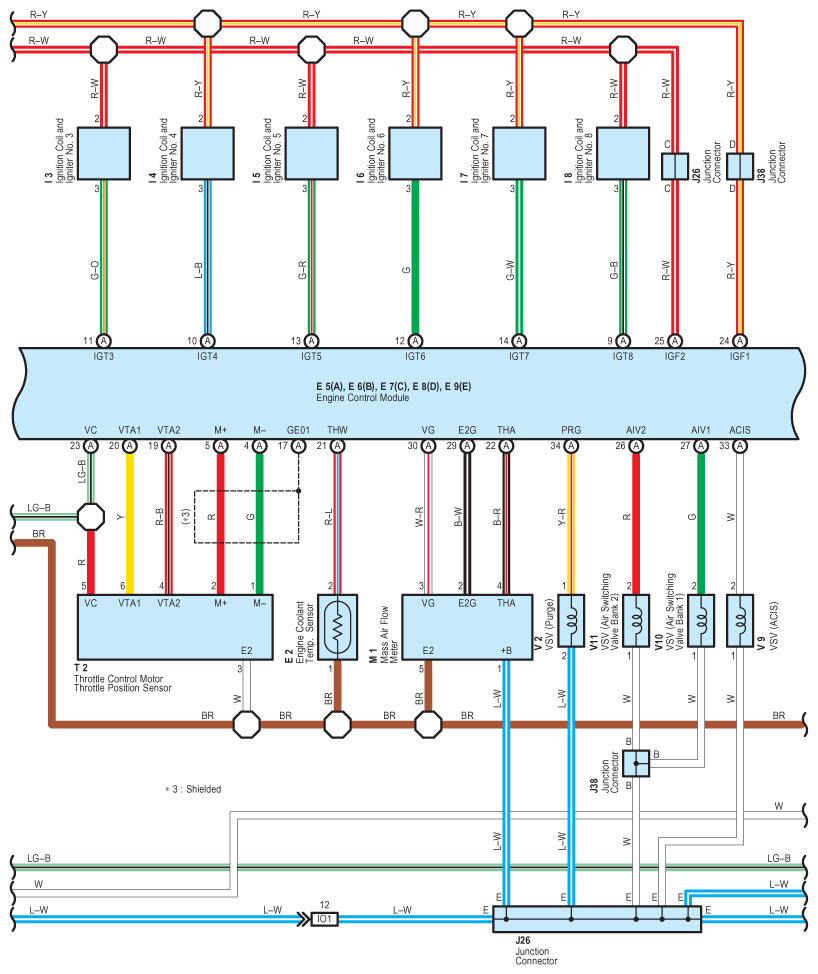

Fig 6: Engine Control Wiring Diagram (6 Of 11)

G08910018

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

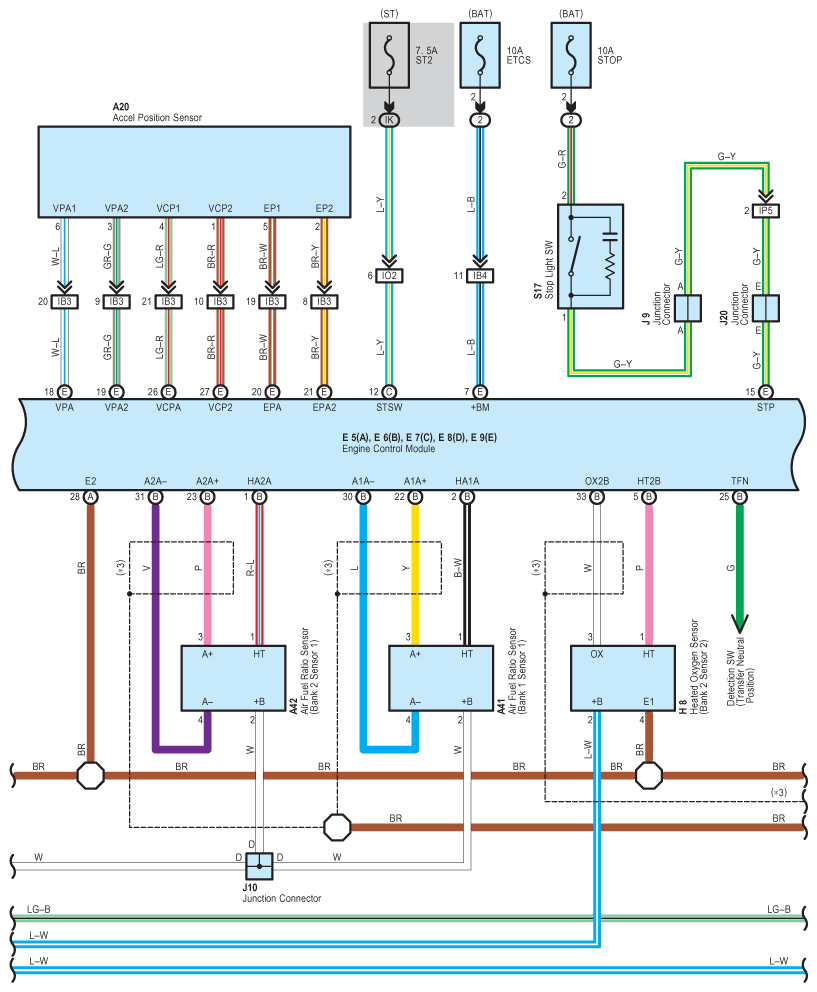

Fig 7: Engine Control Wiring Diagram (7 Of 11)

G08910019

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

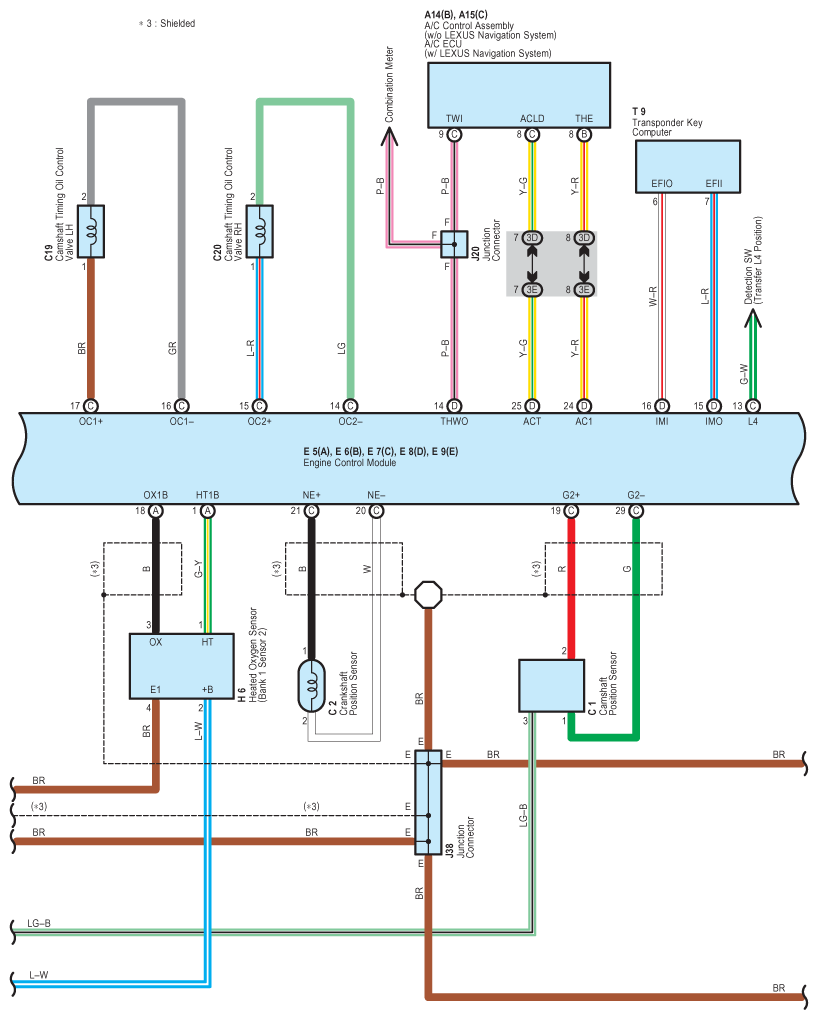

Fig 8: Engine Control Wiring Diagram (8 Of 11)

G08910020

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

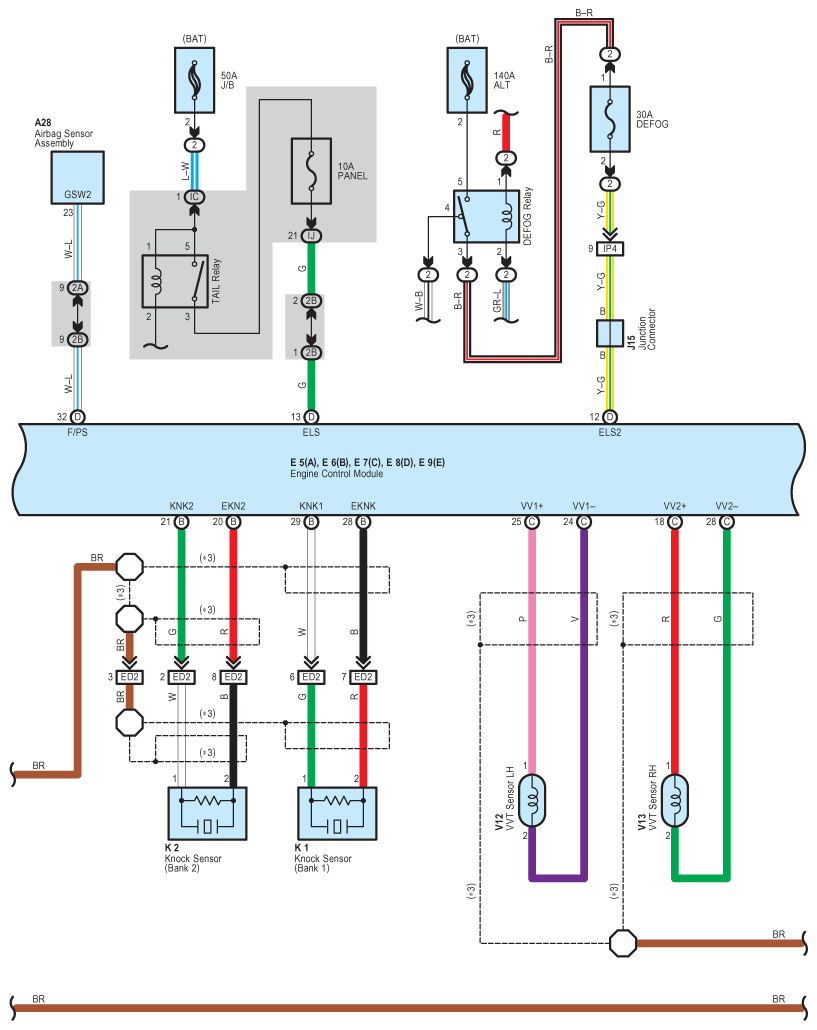

Fig 9: Engine Control Wiring Diagram (9 Of 11)

G08910021

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

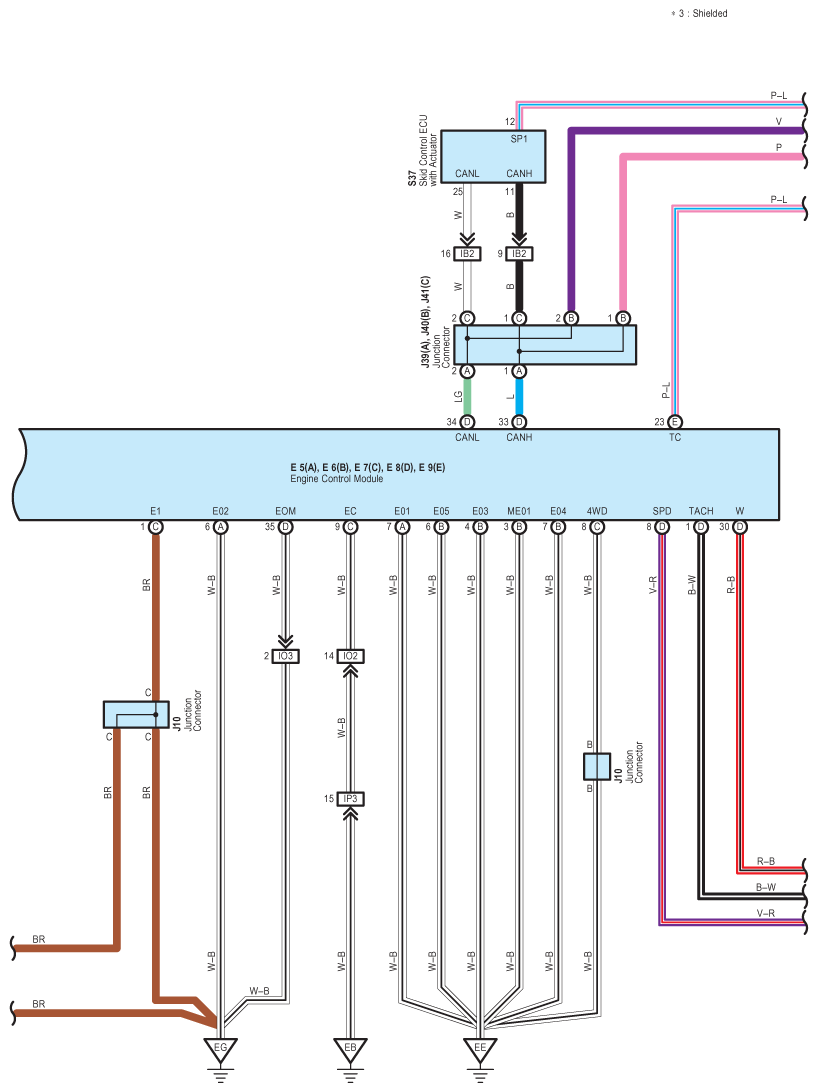

Fig 10: Engine Control Wiring Diagram (10 Of 11)

G08910022

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

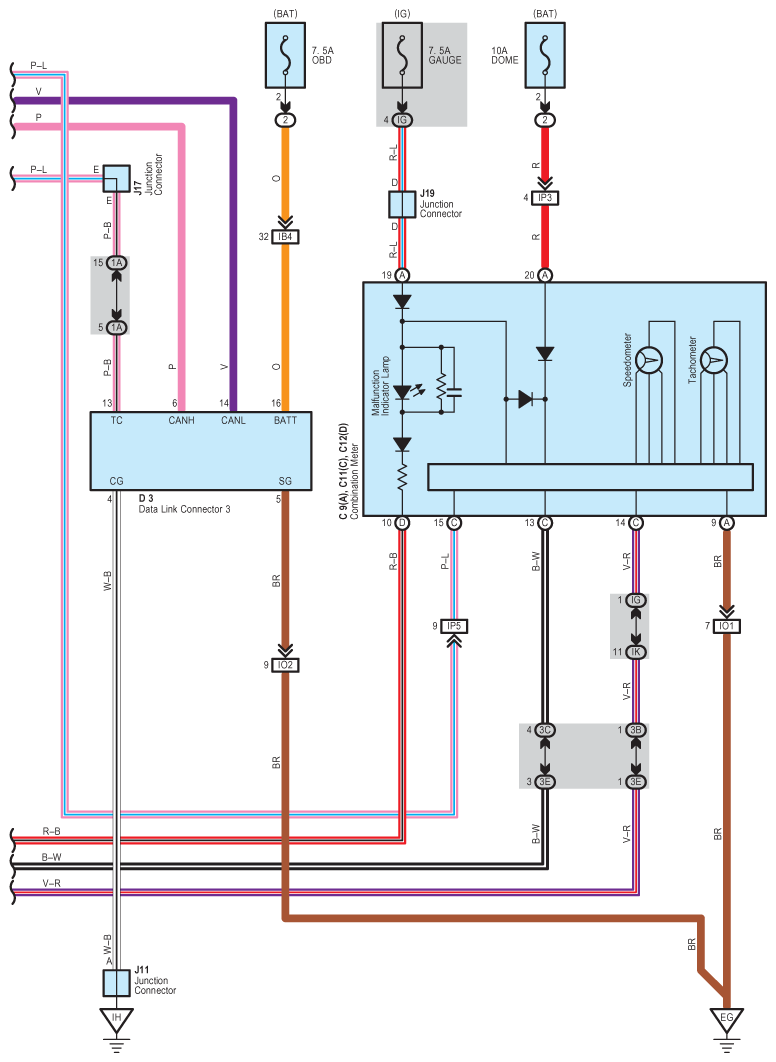

Fig 11: Engine Control Wiring Diagram (11 Of 11)

G08910023

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
