Manual Up/Down Function Does Not Operate At Driver Side: Wiring Diagram

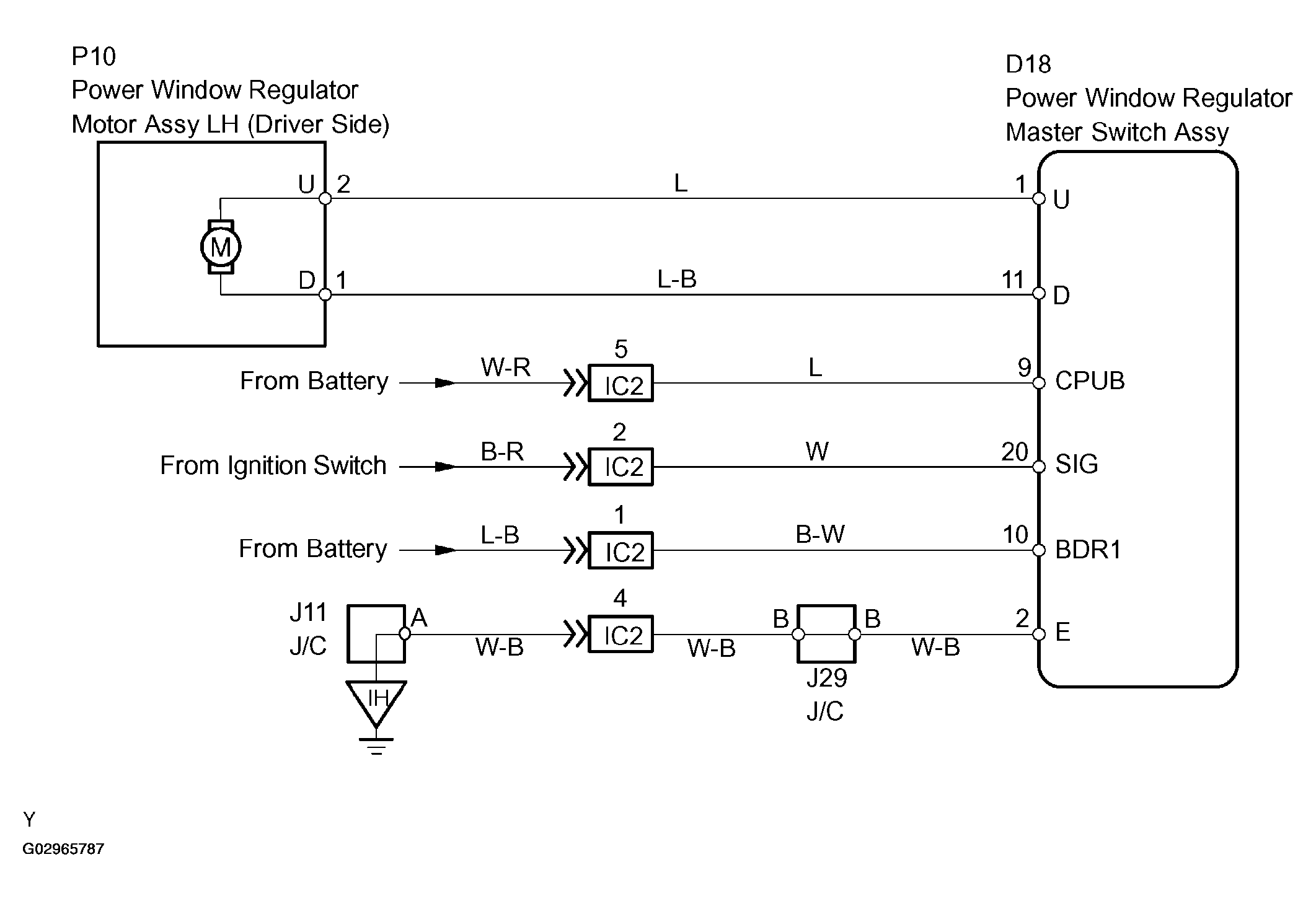

Fig 1: Manual Up/Down Function Does Not Operate At Driver Side Wiring Diagram
G02965787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
