Inspection Procedure

INSPECT POWER WINDOW REGULATOR SWITCH ASSY REAR (PASSENGER SIDE) (FOR GROUND)
1. Remove the power window switch (the connector is connected).
2. Check the continuity between terminal 7 and the body ground.
  Standard: Continuity

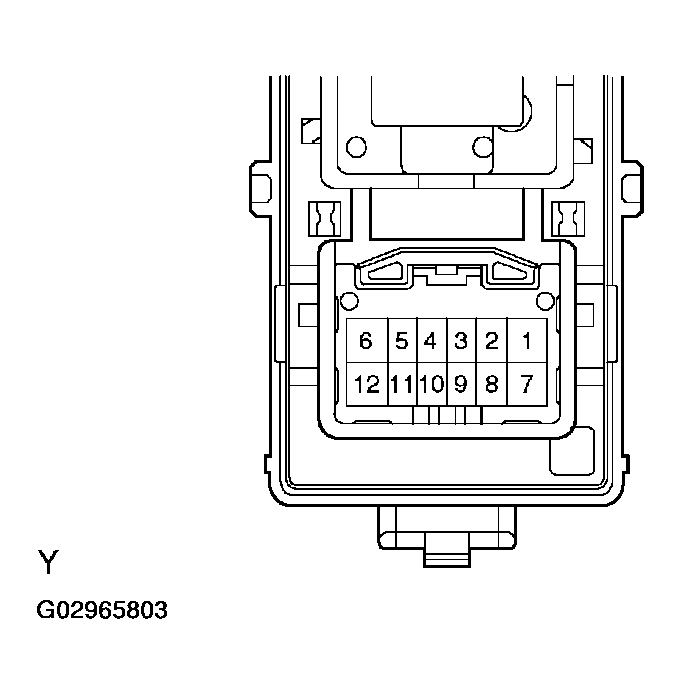

  Fig 1: Identifying Terminals Of Power Window Regulator Switch Assy Rear Connector (Passenger Side) (For Ground)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
2. OK: Go to next step.
INSPECT POWER WINDOW REGULATOR SWITCH ASSY REAR (REAR LH SIDE) (FOR POWER SOURCE)
1. Check the voltage between terminals 12 and 7.
  Standard: 10 - 14 V (Constant)

  Fig 2: Identifying Terminals Of Power Window Regulator Switch Assy Rear Connector (Rear LH Side) (For Power Source)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPAIR OR REPLACE HARNESS AND/CONNECTOR (SWITCH <==> POWER SOURCE)
2. OK: Go to next step.
INSPECT POWER WINDOW REGULATOR SWITCH ASSY REAR (REAR LH SIDE) (FOR WINDOW LOCK SWITCH)
1. Turn the ignition switch ON.
2. Check the voltage between terminals 11 and 7 when operating the window lock switch on the master switch.
  Standard:

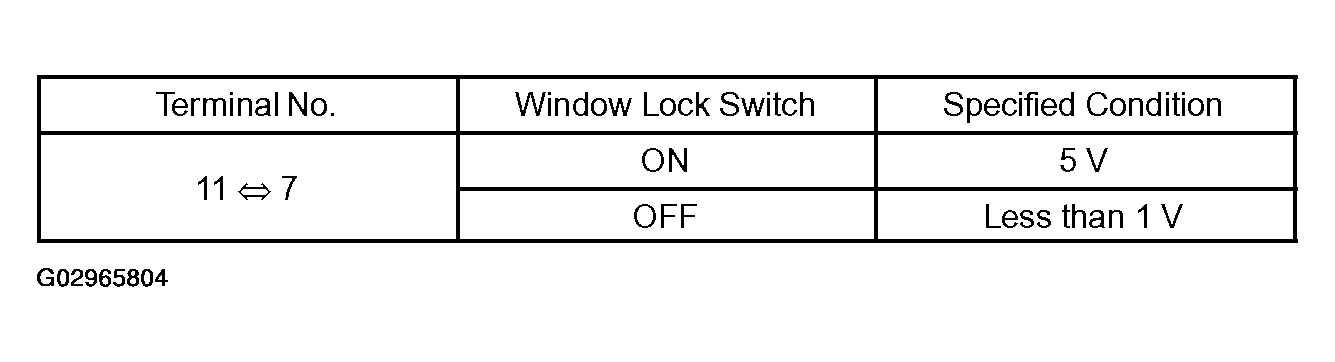

  Fig 3: Power Window Regulator Switch Assy Rear (Rear LH Side) (For Window Lock Switch) Specified Condition Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 4: Identifying Terminals Of Power Window Regulator Switch Assy Rear (Rear LH Side) Connector (For Window Lock Switch)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR (SWITCH <==> MASTER SWITCH)
2. OK: Go to next step.

CHECK WIRE HARNESS (SWITCH <==> MOTOR)

Disconnect the P8 power window switch connector.
Remove the rear door trim LH.
Disconnect the P12 power window motor connector.

Check the continuity between the wire harness side connectors.

Standard:

SWITCH TO MOTOR CONTINUITY

Terminal No.	Specified Condition
P8-1 <==> P12-2	Continuity
P8-6 <==> P12-1	Continuity
P8-1 <==> Body ground	No continuity
P8-6 <==> Body ground	No continuity

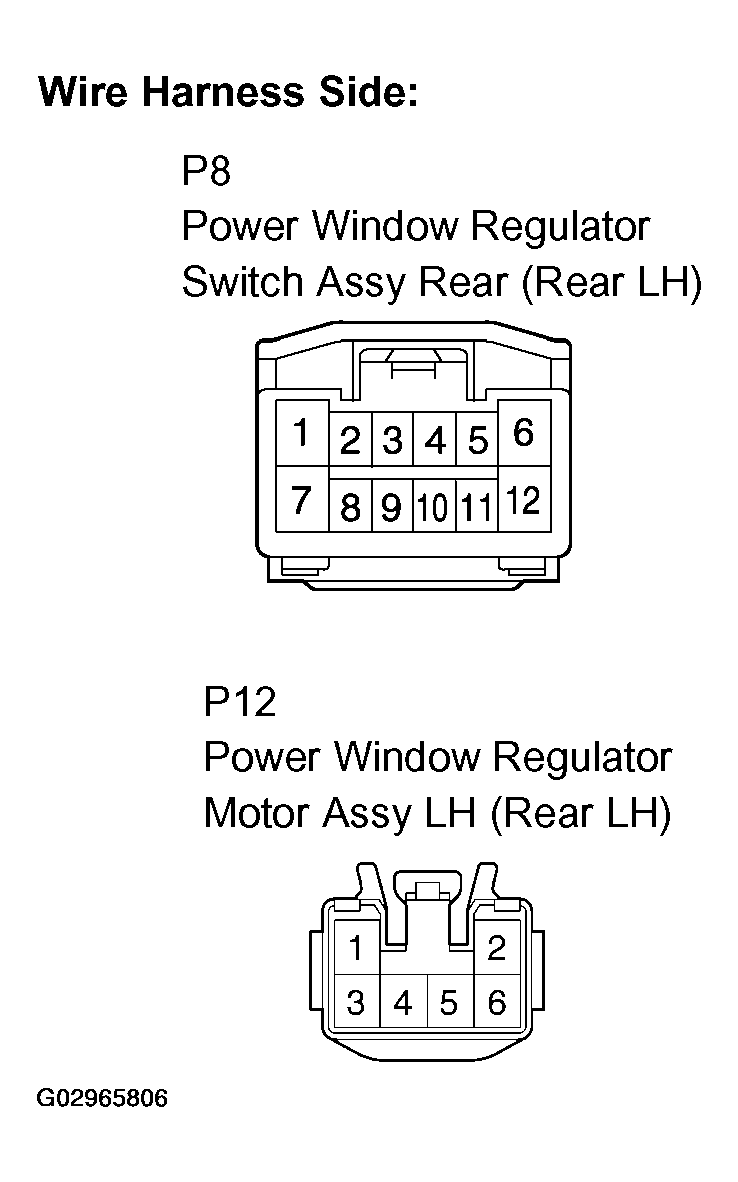

Fig 5: Identifying Terminals Of Power Window Regulator Switch Assy Rear & Power Window Regulator Motor Assy LH Connector

NG: REPAIR OR REPLACE HARNESS AND HARNESS AND CONNECTOR
OK: Go to next step.

INSPECT POWER WINDOW REGULATOR MOTOR ASSY LH (REAR LH)
1. Remove the motor (See OVERHAUL ).
2. Apply battery voltage to the connector between terminals 1 and 2.
3. Check that the motor rotates smoothly.
  NOTE: Do not apply battery voltage to the terminals except 1 and 2.

  Standard:

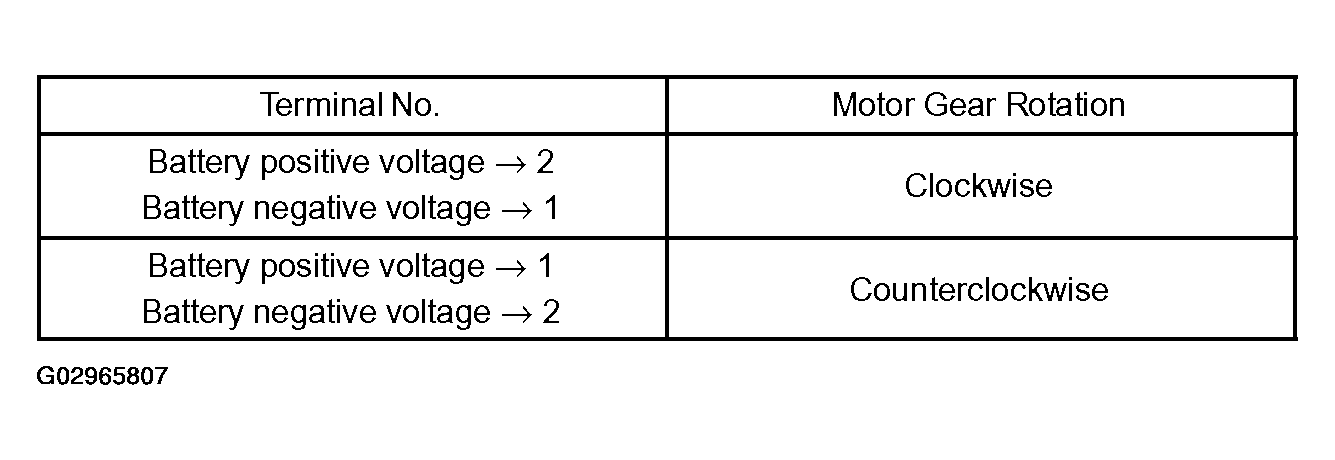

  Fig 6: Power Window Regulator Motor Assy LH (Rear LH) Motor Gear Rotation Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

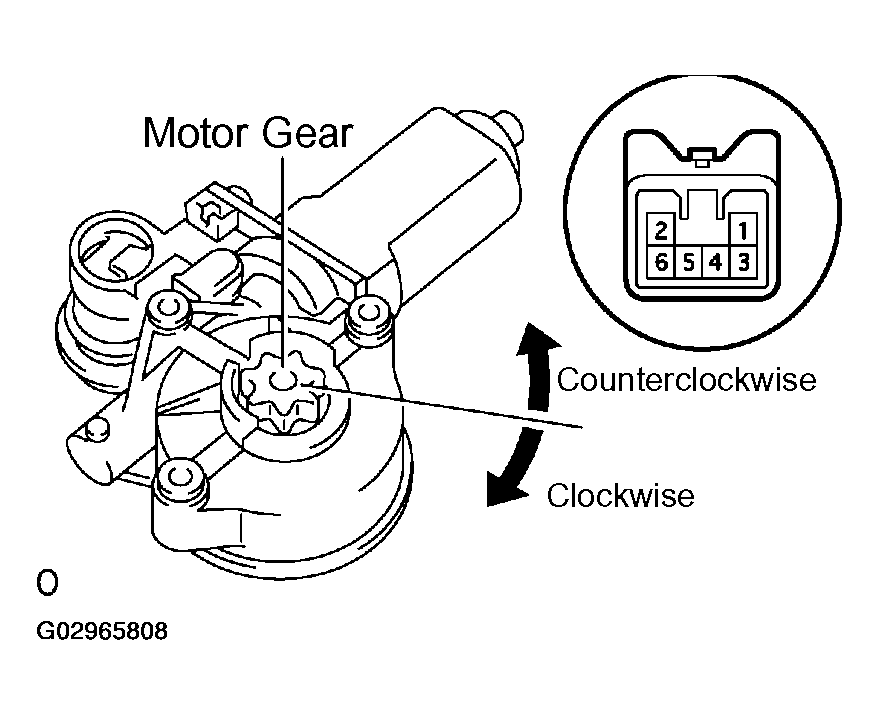

  Fig 7: Inspecting Power Window Regulator Motor Assy LH (Rear LH)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPLACE POWER WINDOW REGULATOR MOTOR ASSY LH (REAR LH)
2. OK: REPLACE POWER WINDOW REGULATOR SWITCH ASSY REAR (REAR LH)
