Back Door Glass: Components

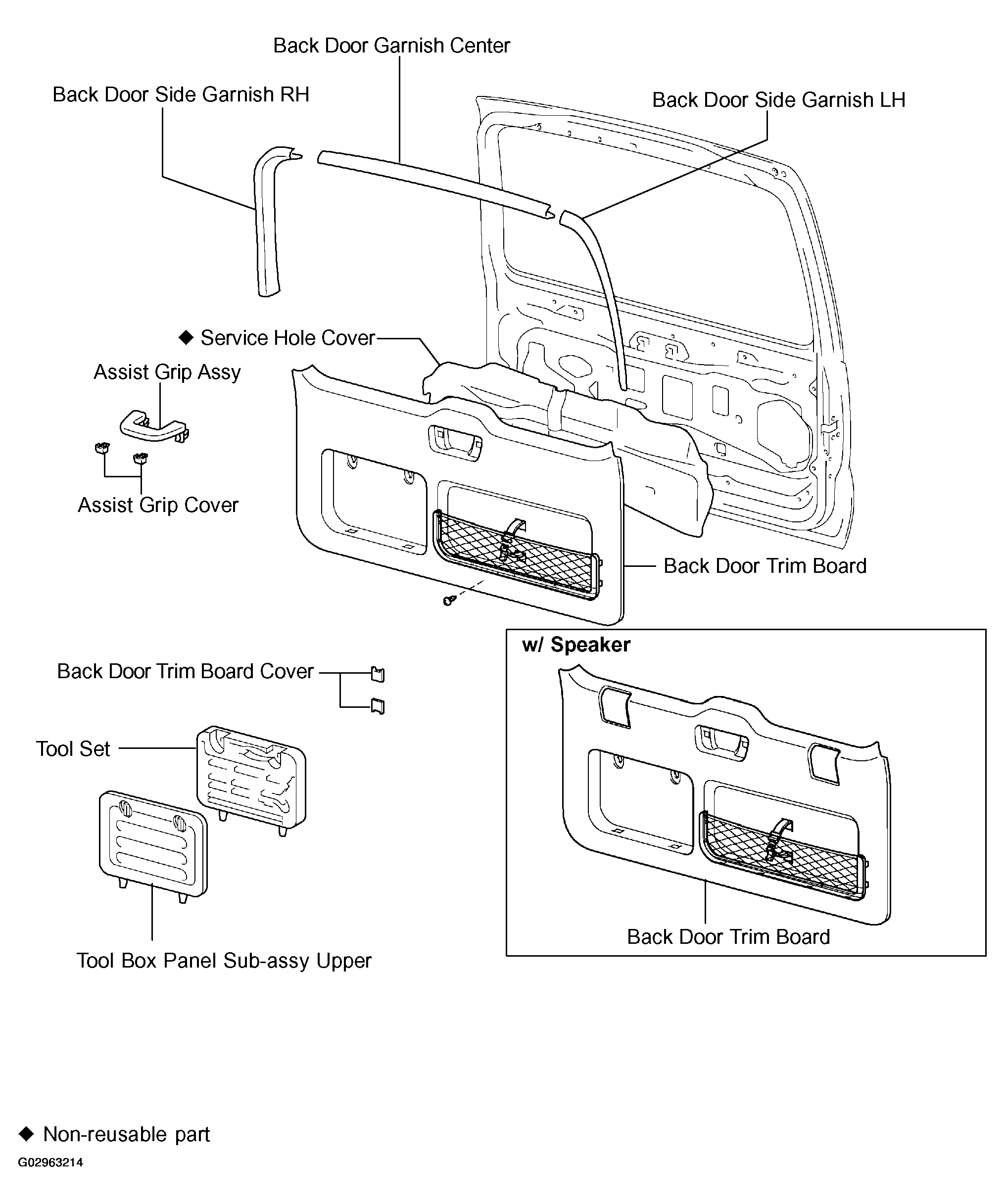

Fig 1: Exploded View Of Back Door Glass Components (1 Of 2)
G02963214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

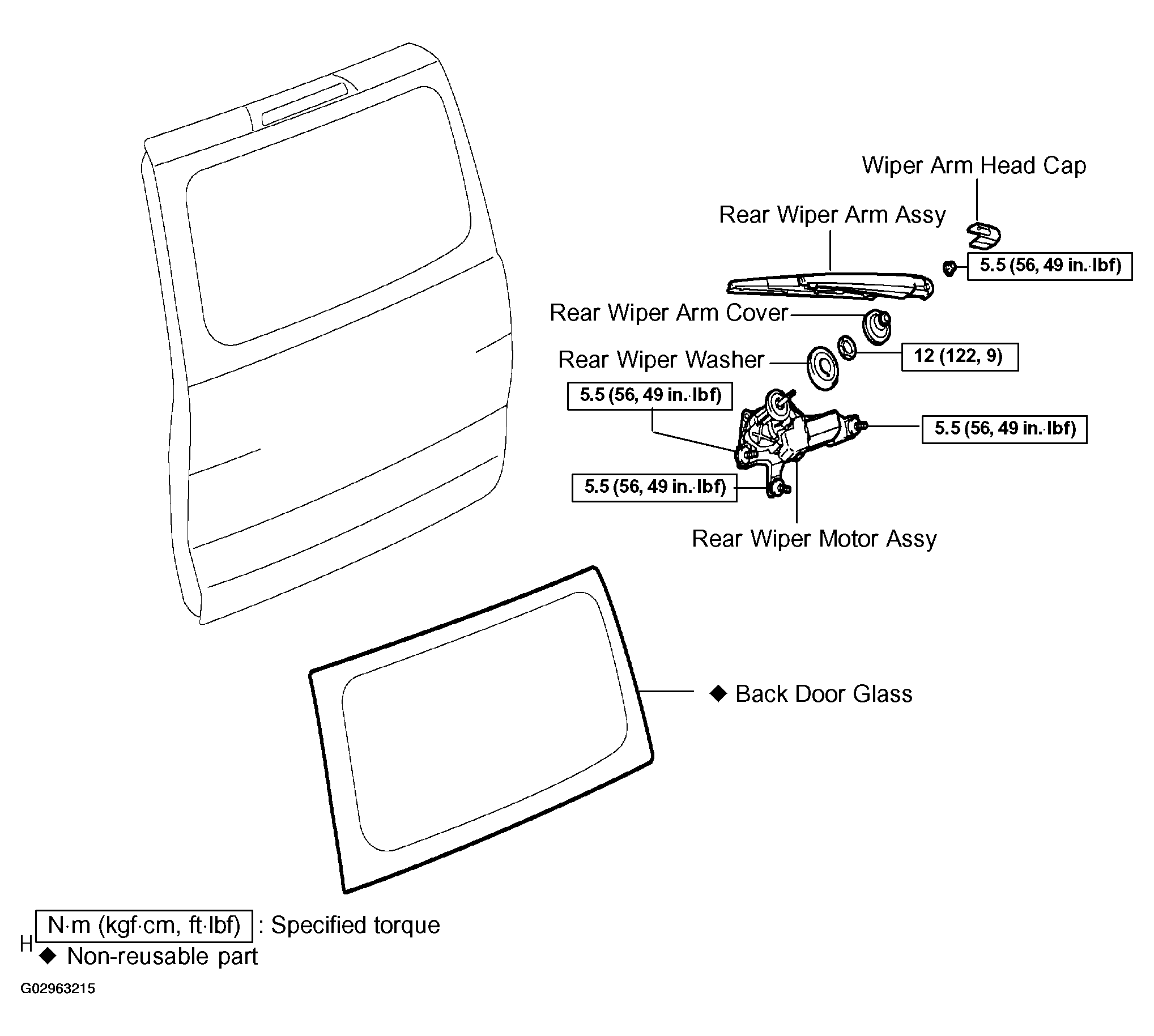

Fig 2: Exploded View Of Back Door Glass Components (2 Of 2)
G02963215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
