Cigarette Lighter and Power Outlet - 12V: Notes

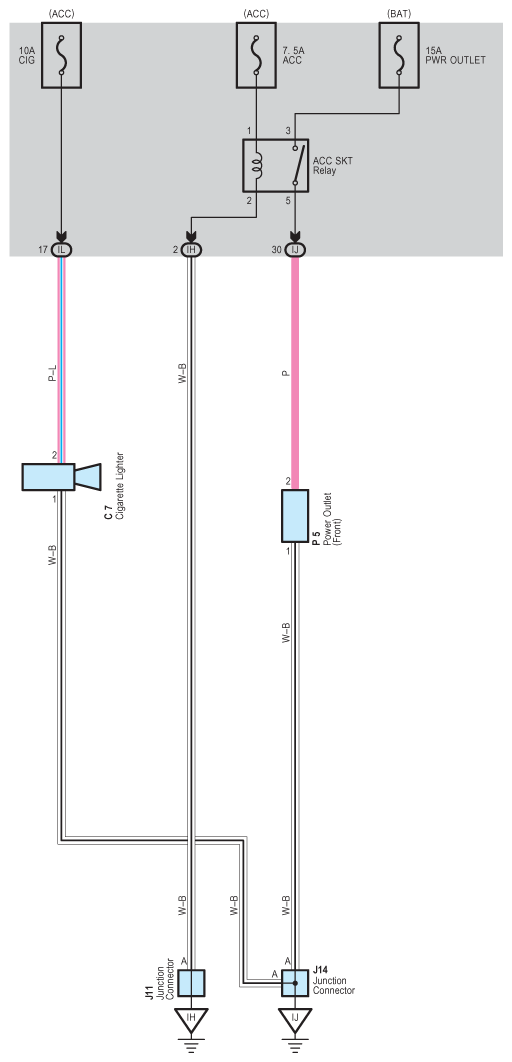

Fig 1: Cigarette Lighter And Power Outlet - 12V Wiring Diagram
G08910148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
