Door Lock Control and Theft Deterrent: Notes

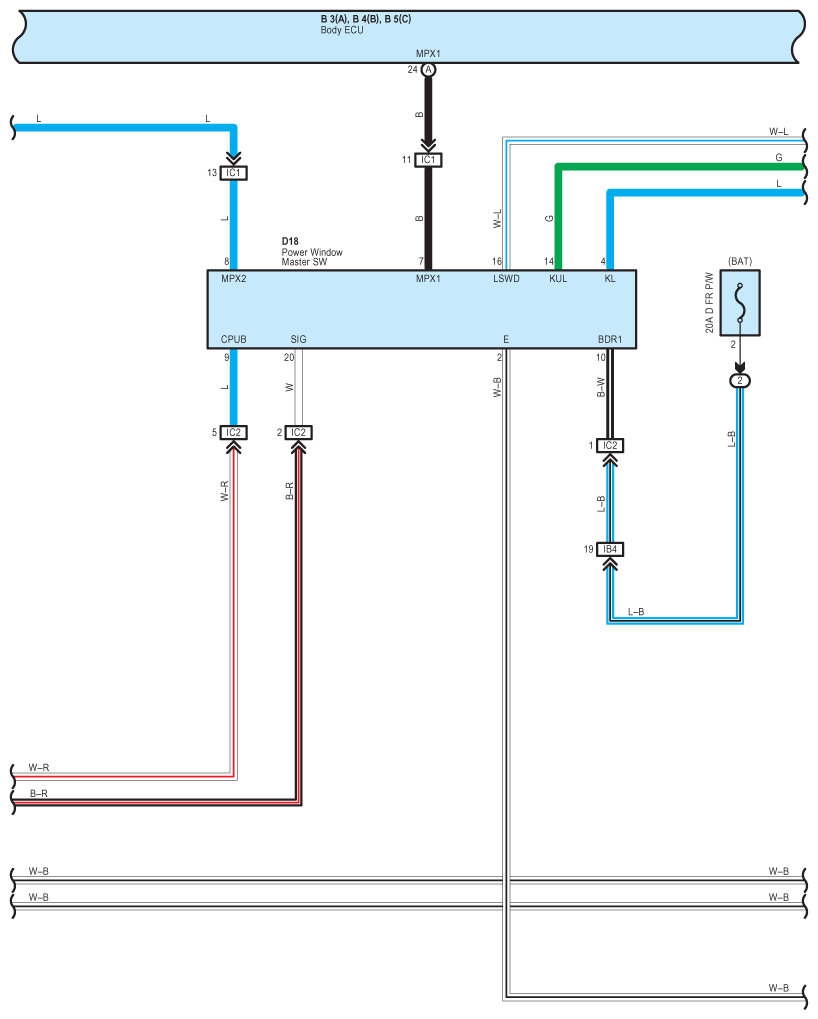

Fig 1: Door Lock Control And Theft Deterrent Wiring Diagram (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

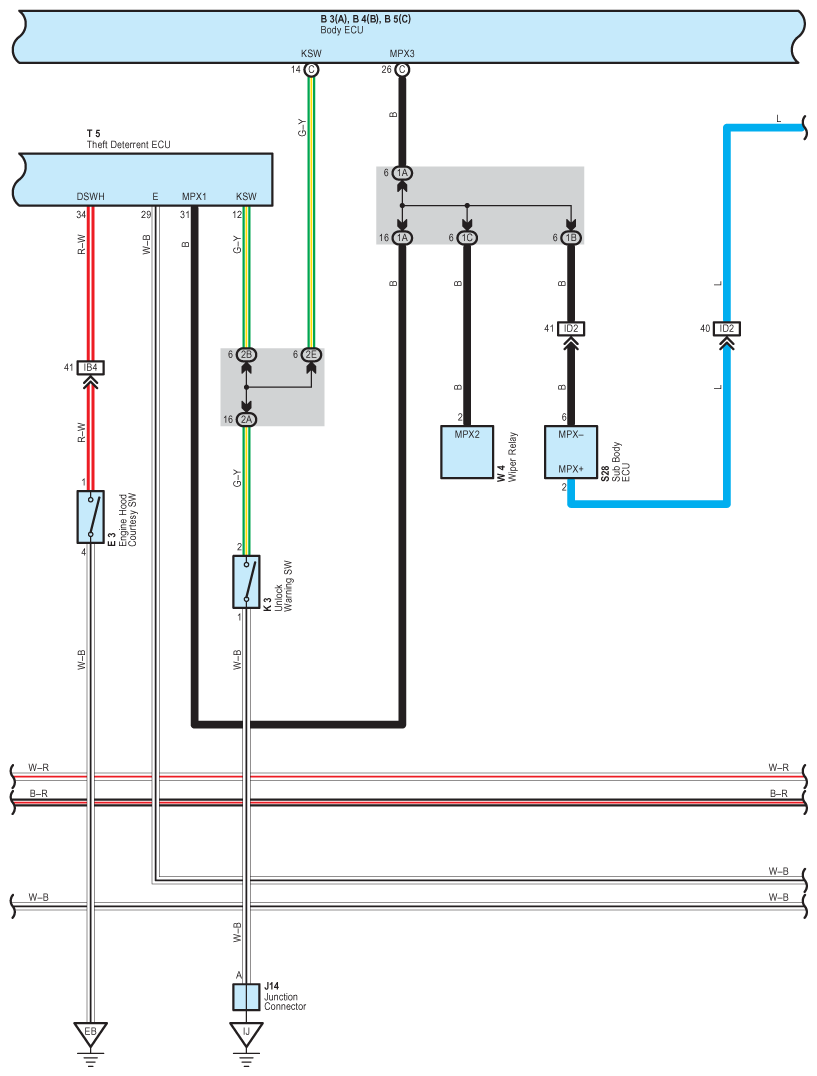

Fig 2: Door Lock Control And Theft Deterrent Wiring Diagram (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

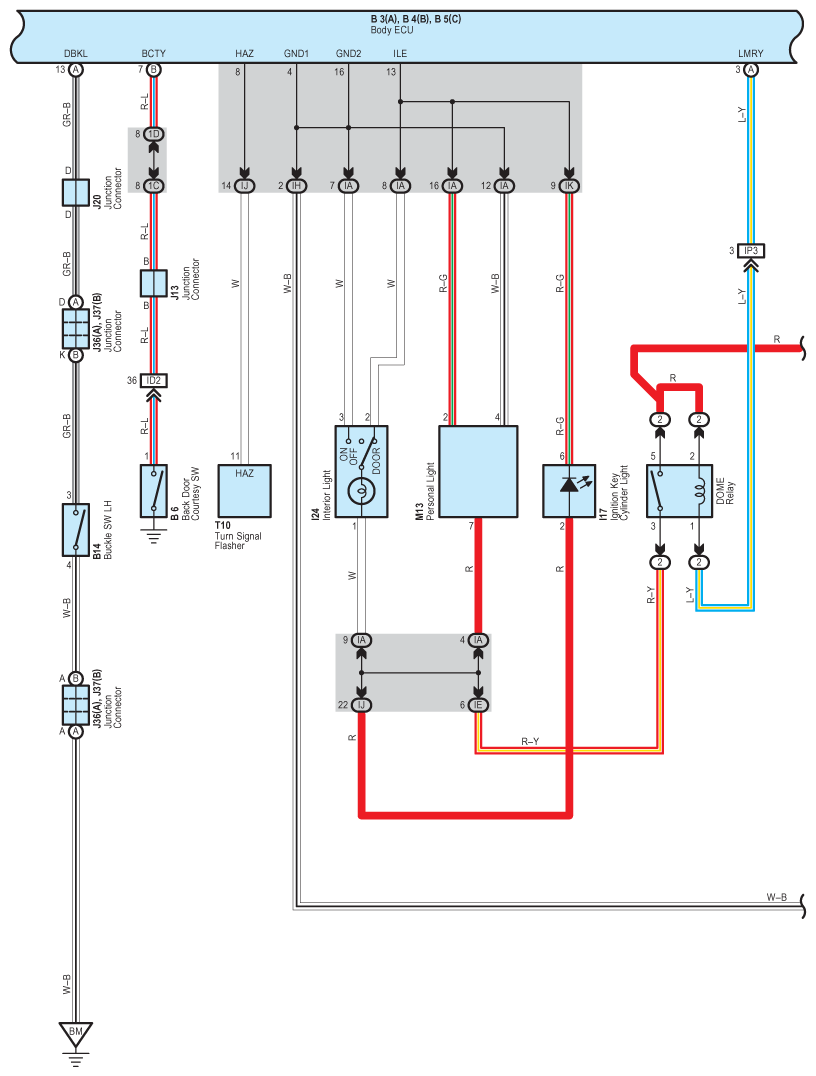

Fig 3: Door Lock Control And Theft Deterrent Wiring Diagram (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

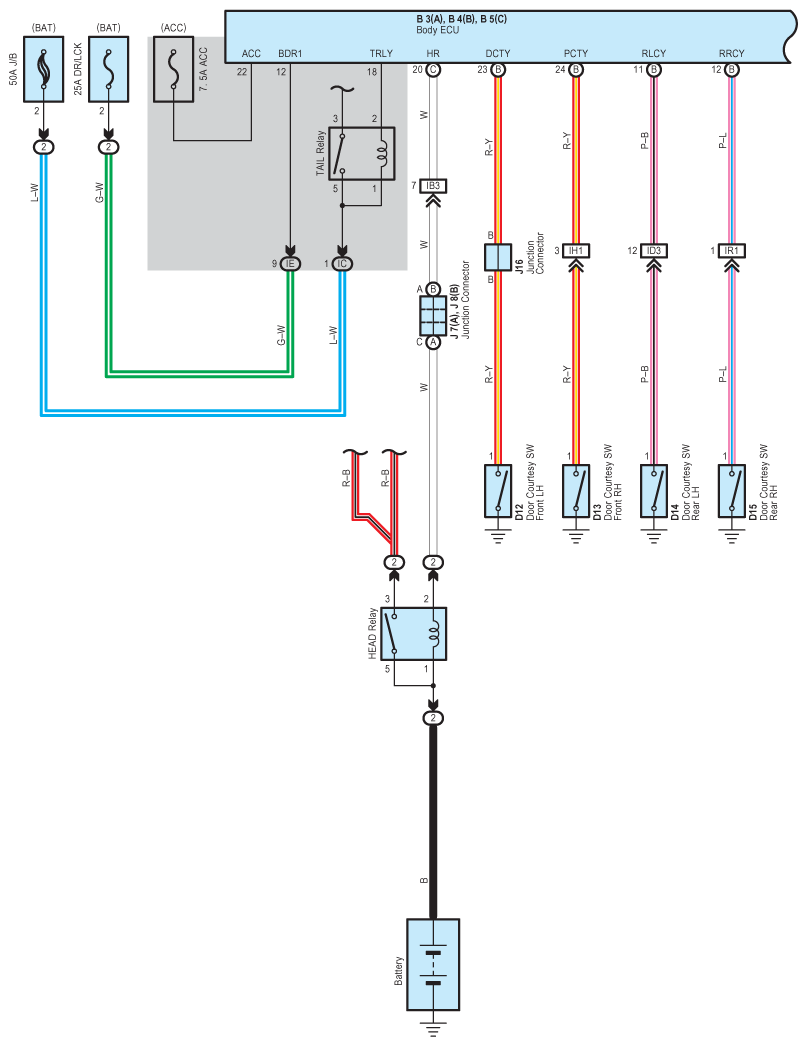

Fig 4: Door Lock Control And Theft Deterrent Wiring Diagram (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

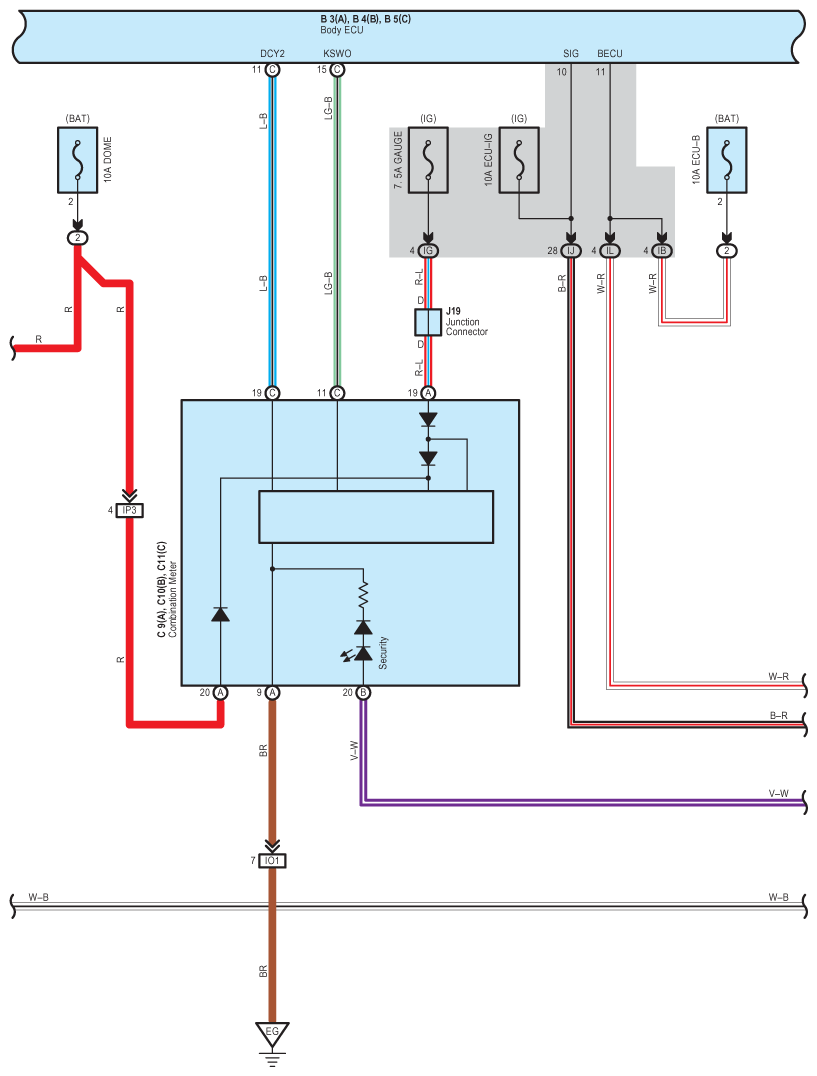

Fig 5: Door Lock Control And Theft Deterrent Wiring Diagram (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

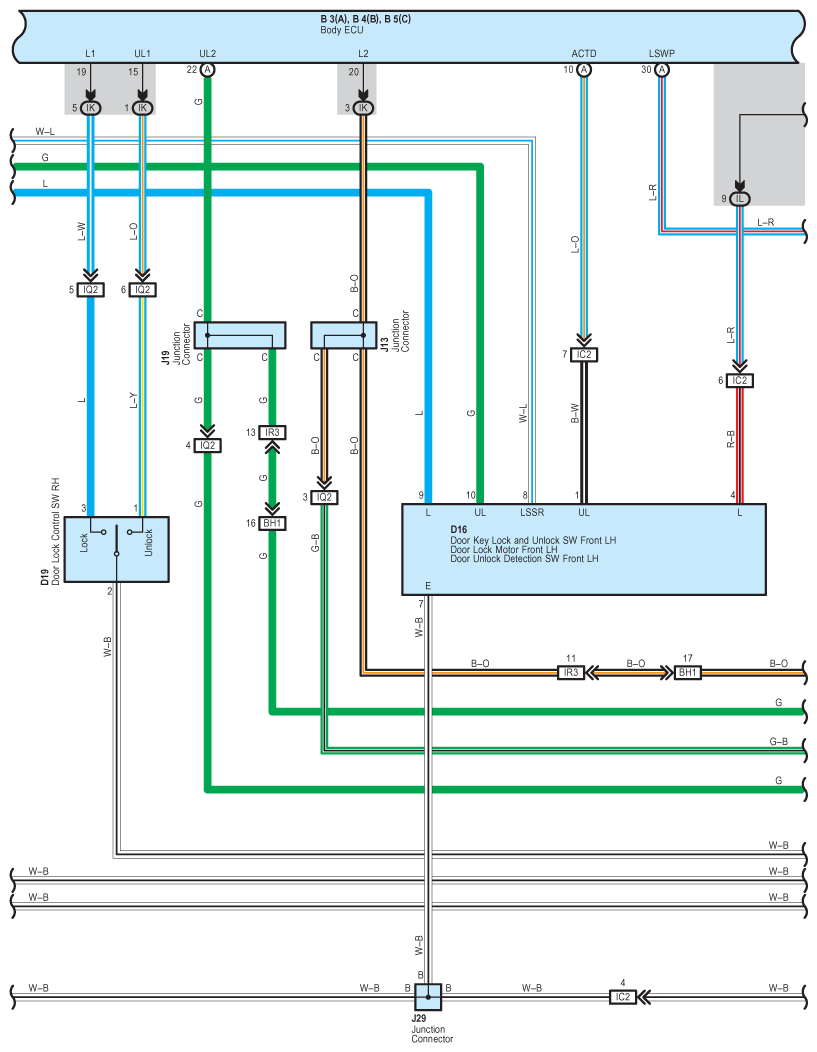

Fig 6: Door Lock Control And Theft Deterrent Wiring Diagram (6 Of 8)

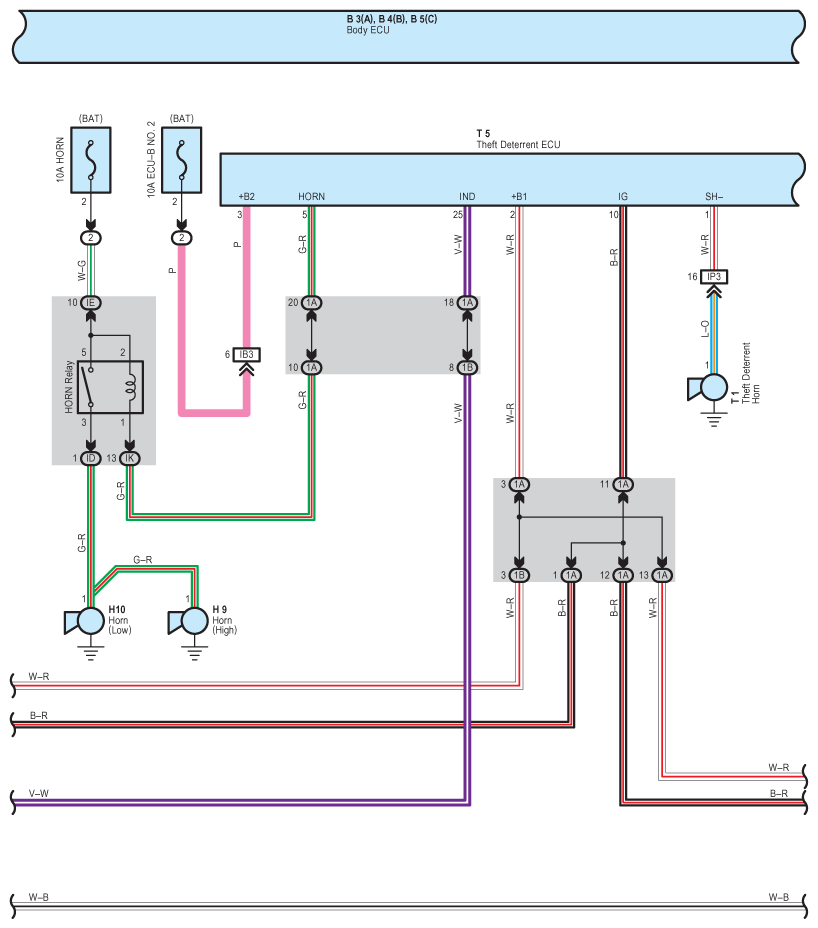

Fig 7: Door Lock Control And Theft Deterrent Wiring Diagram (7 Of 8)

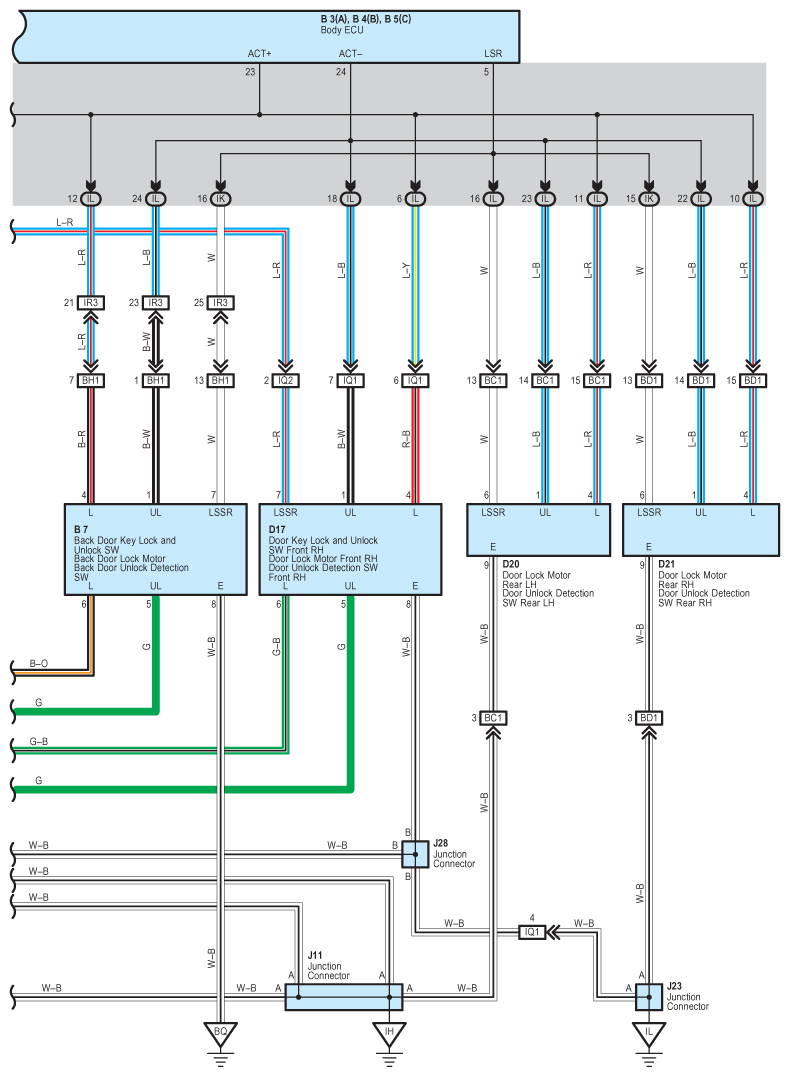

Fig 8: Door Lock Control And Theft Deterrent Wiring Diagram (8 Of 8)
