Front Air Conditioning: Notes

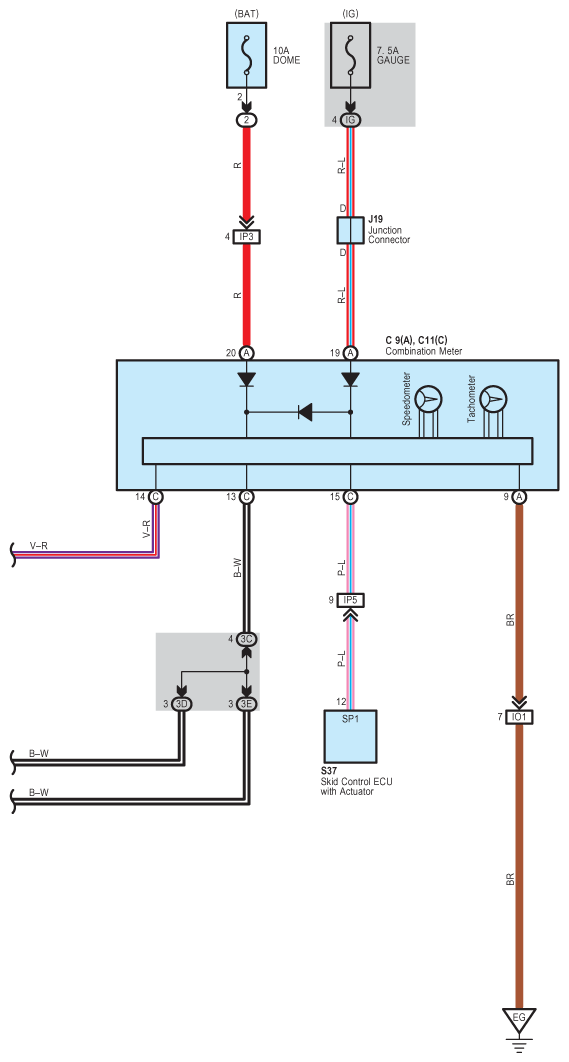

Fig 1: Front Air Conditioning Wiring Diagram (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

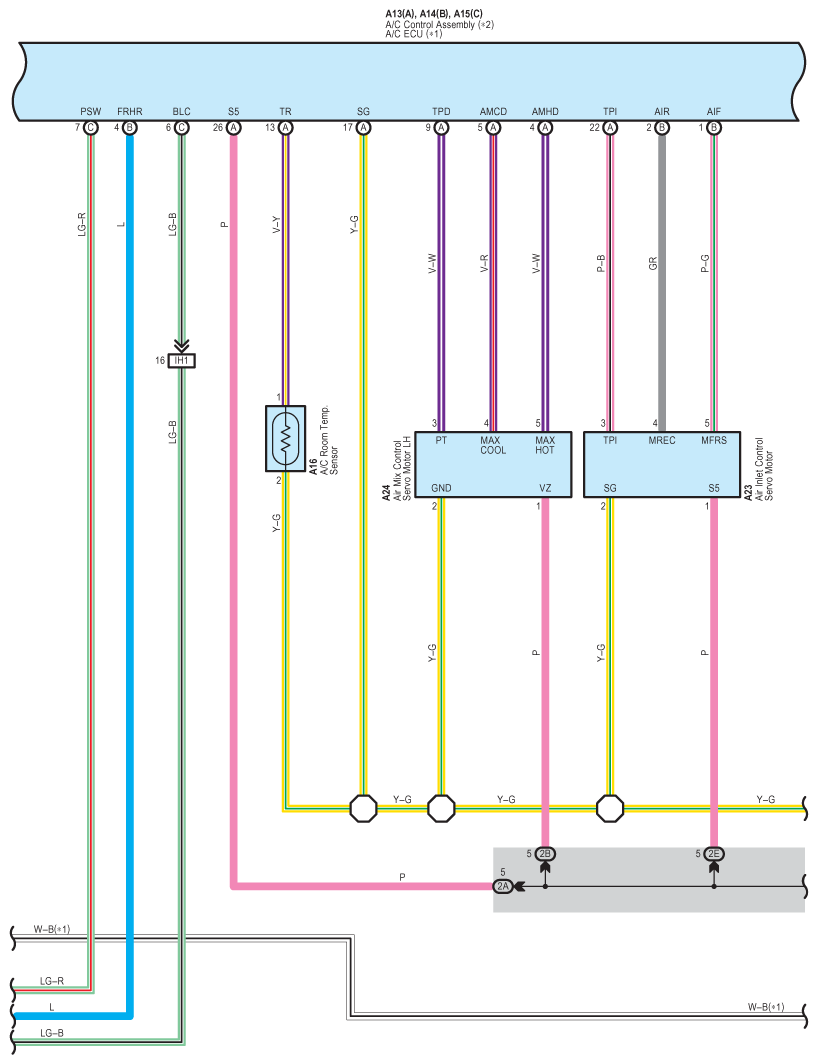

Fig 2: Front Air Conditioning Wiring Diagram (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

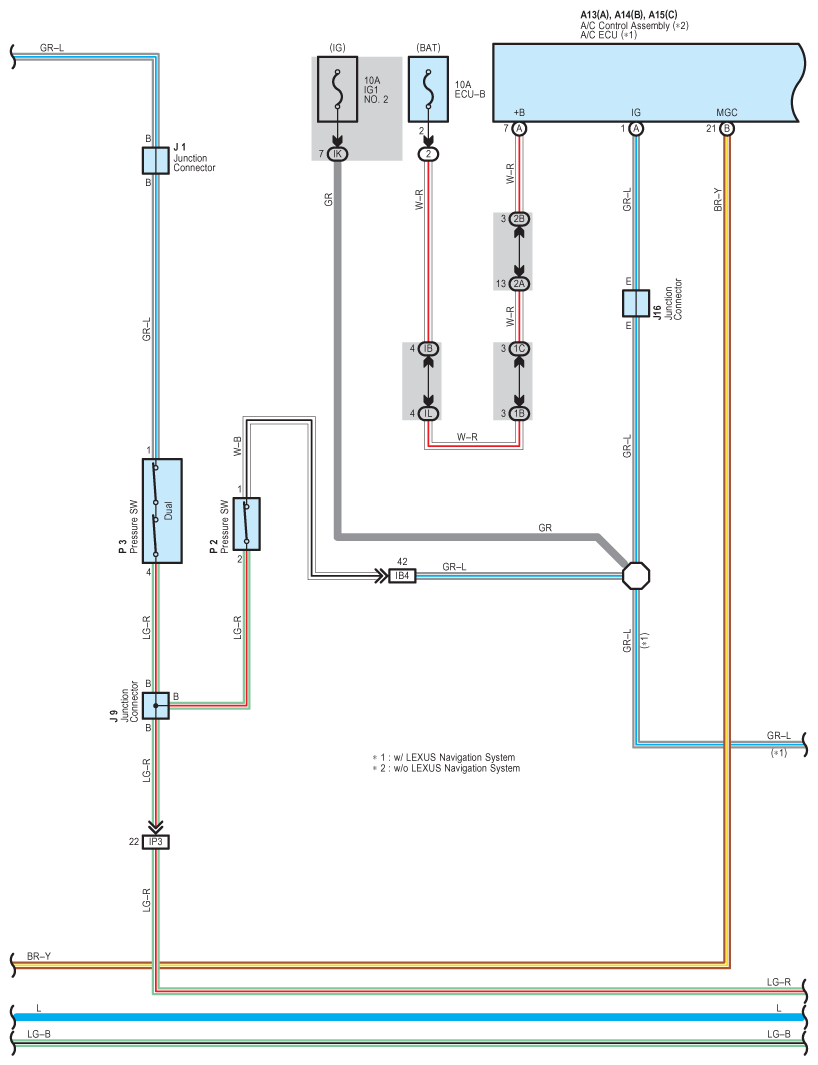

Fig 3: Front Air Conditioning Wiring Diagram (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

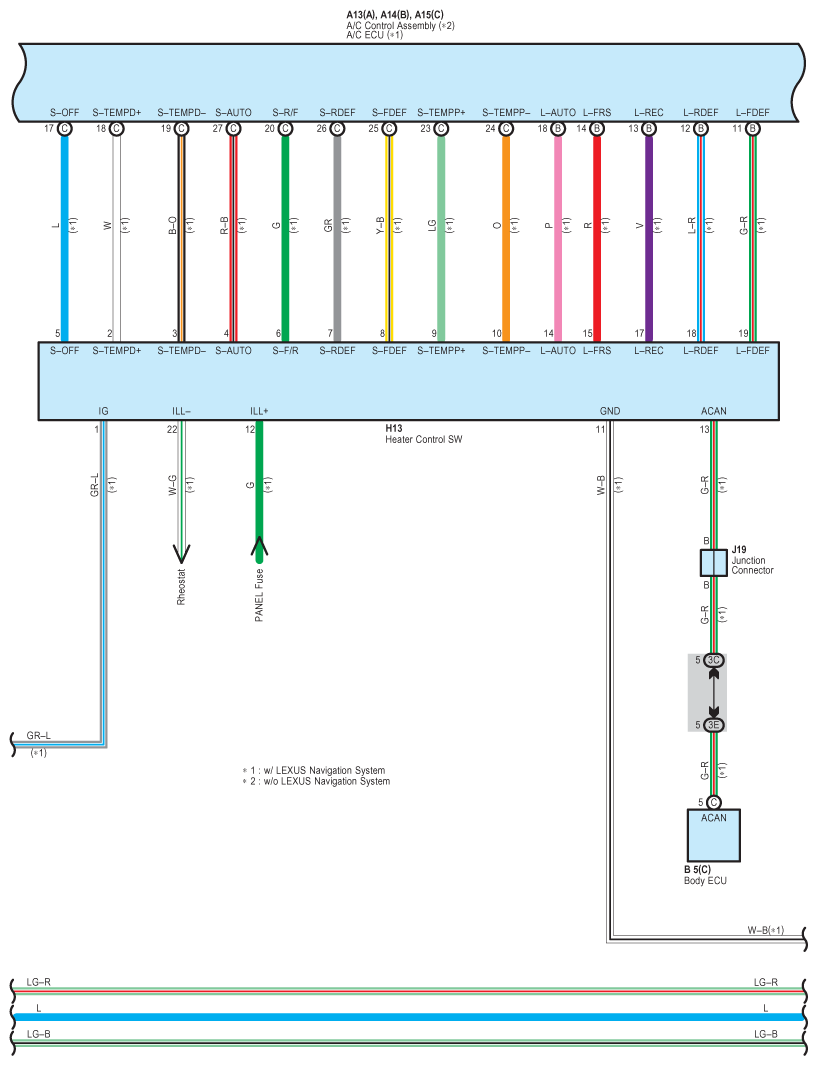

Fig 4: Front Air Conditioning Wiring Diagram (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

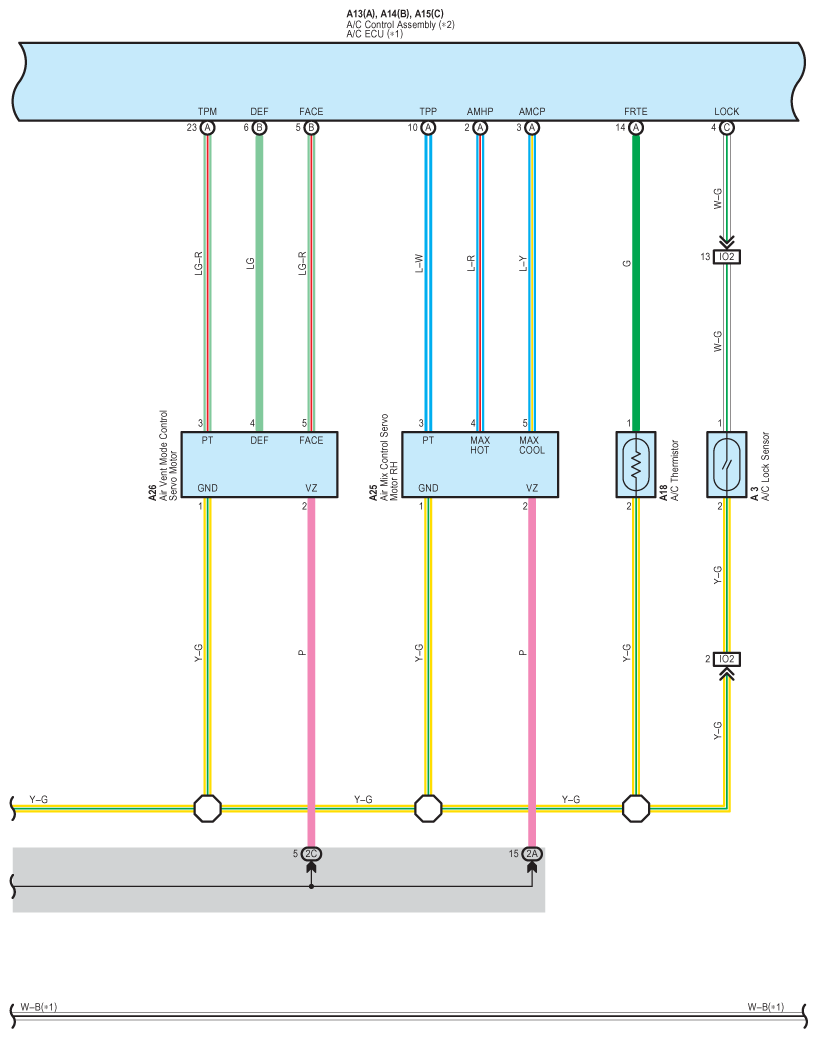

Fig 5: Front Air Conditioning Wiring Diagram (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

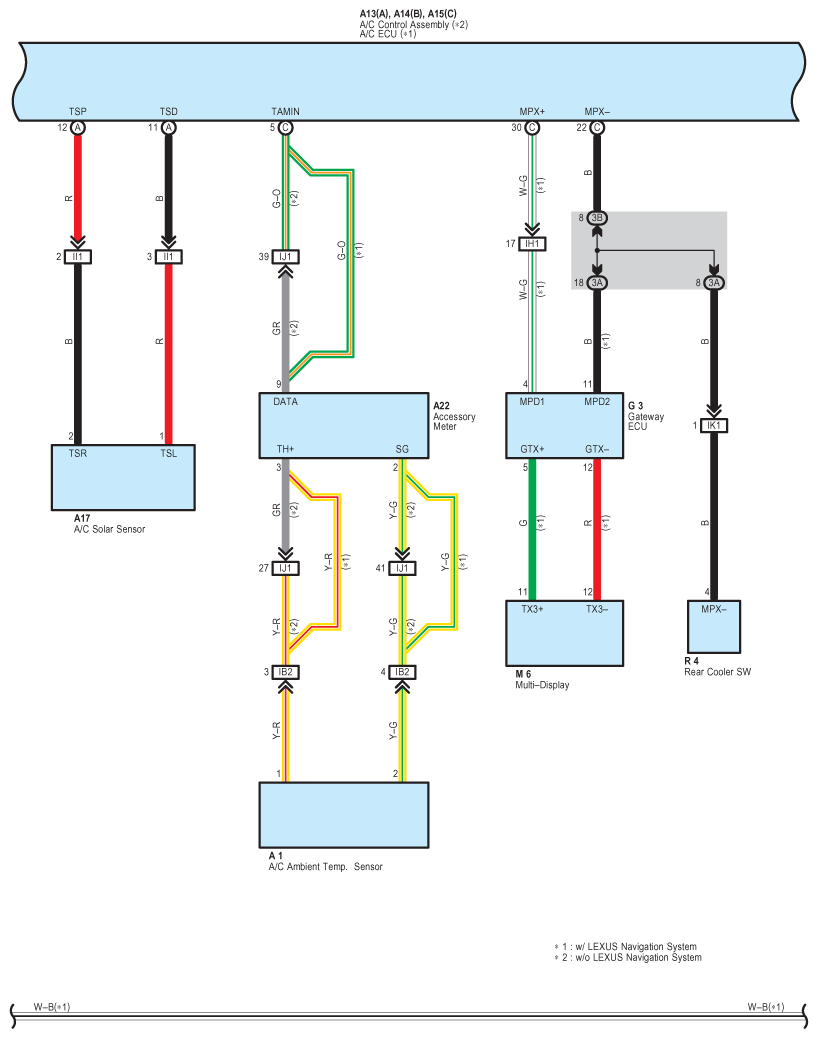

Fig 6: Front Air Conditioning Wiring Diagram (6 Of 8)

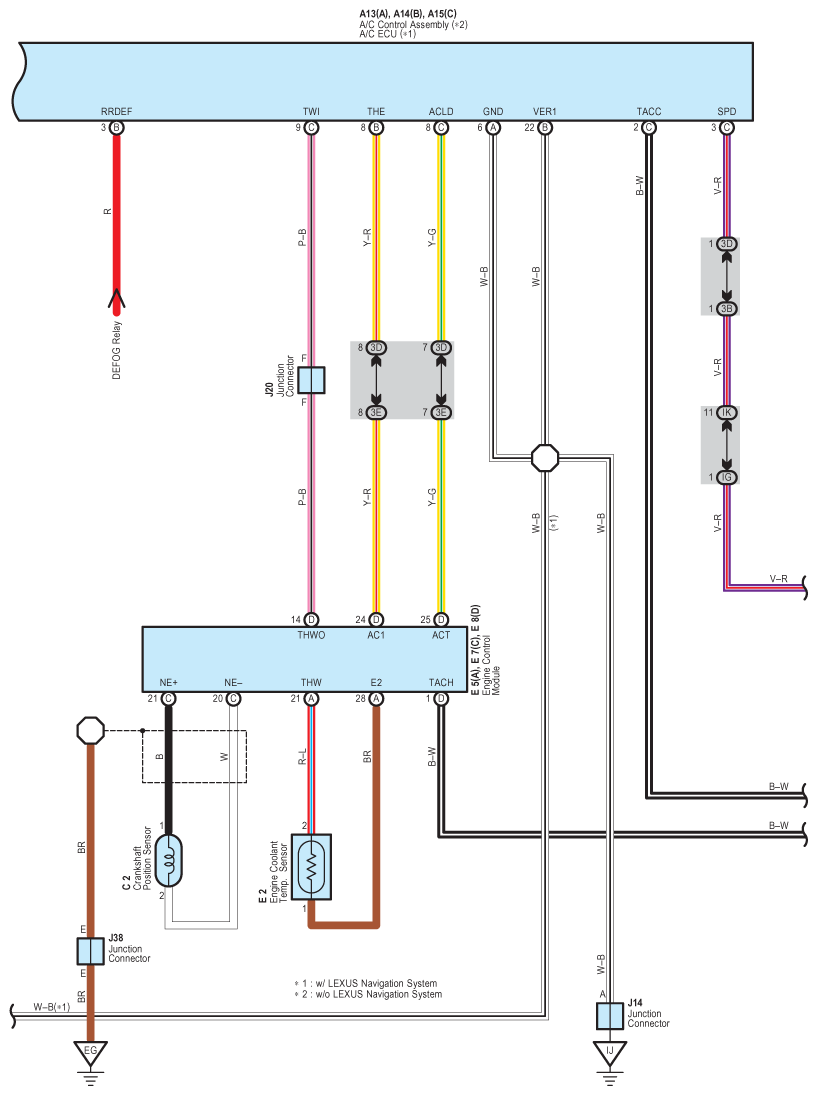

Fig 7: Front Air Conditioning Wiring Diagram (7 Of 8)

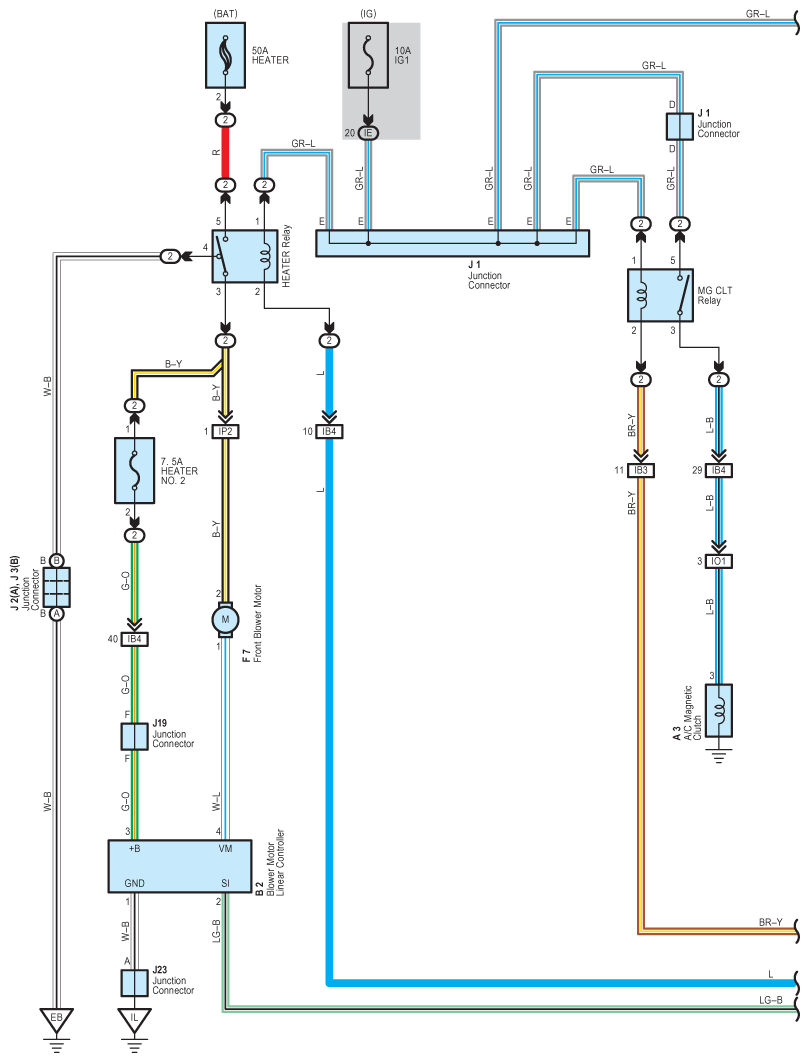

Fig 8: Front Air Conditioning Wiring Diagram (8 Of 8)
