Multiplex Communication System - BEAN: Notes

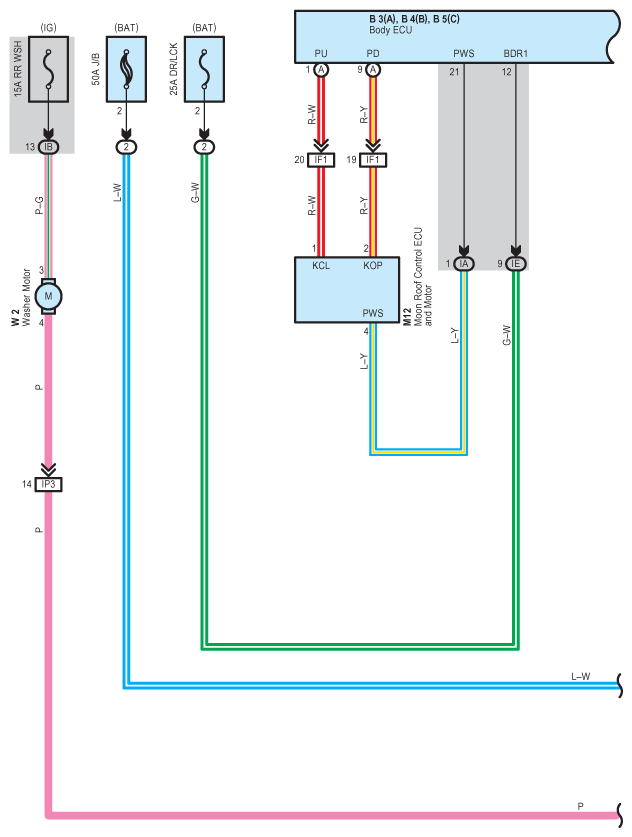

Fig 1: Multiplex Communication System - BEAN Wiring Diagram (1 Of 21)

G08910027

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

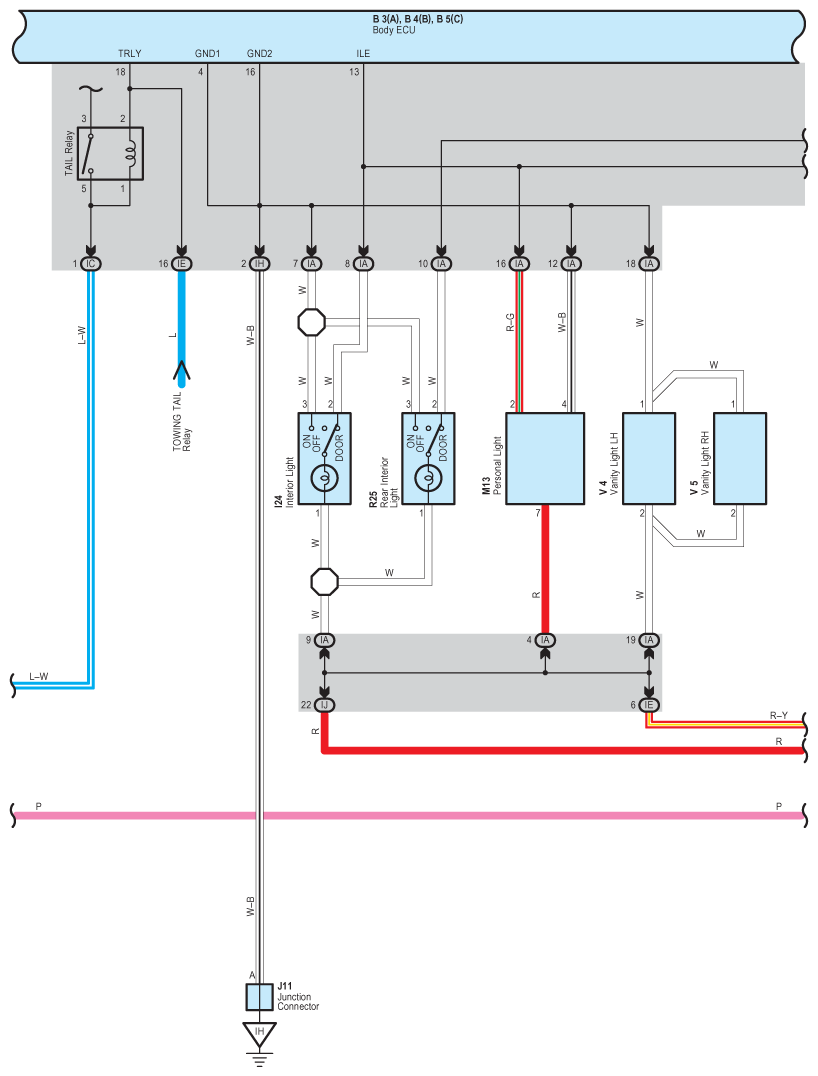

Fig 2: Multiplex Communication System - BEAN Wiring Diagram (2 Of 21)

G08910028

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

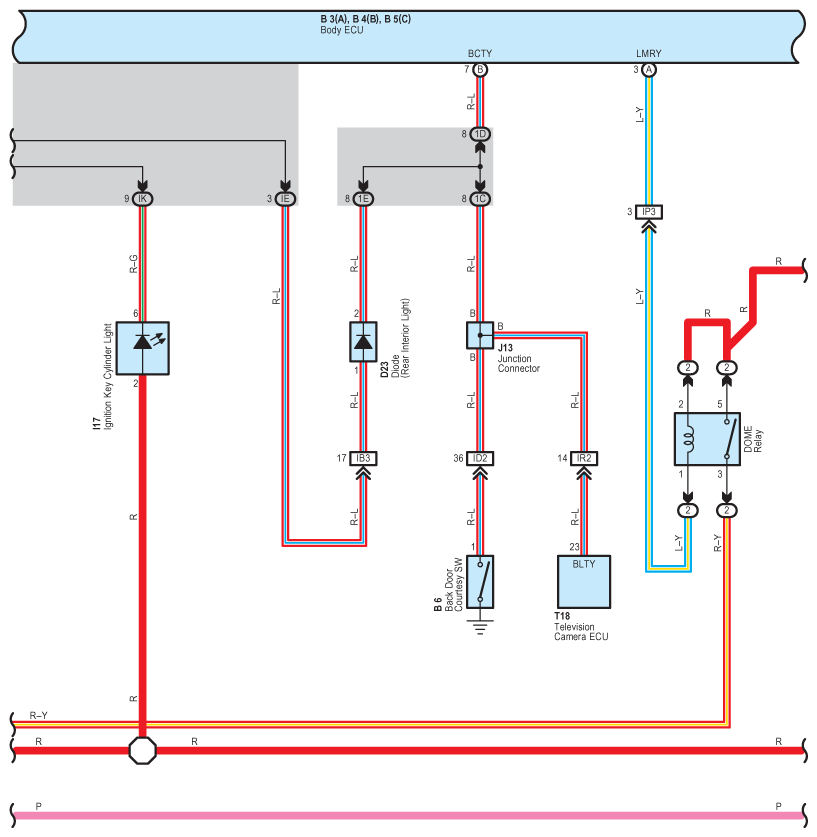

Fig 3: Multiplex Communication System - BEAN Wiring Diagram (3 Of 21)

G08910029

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

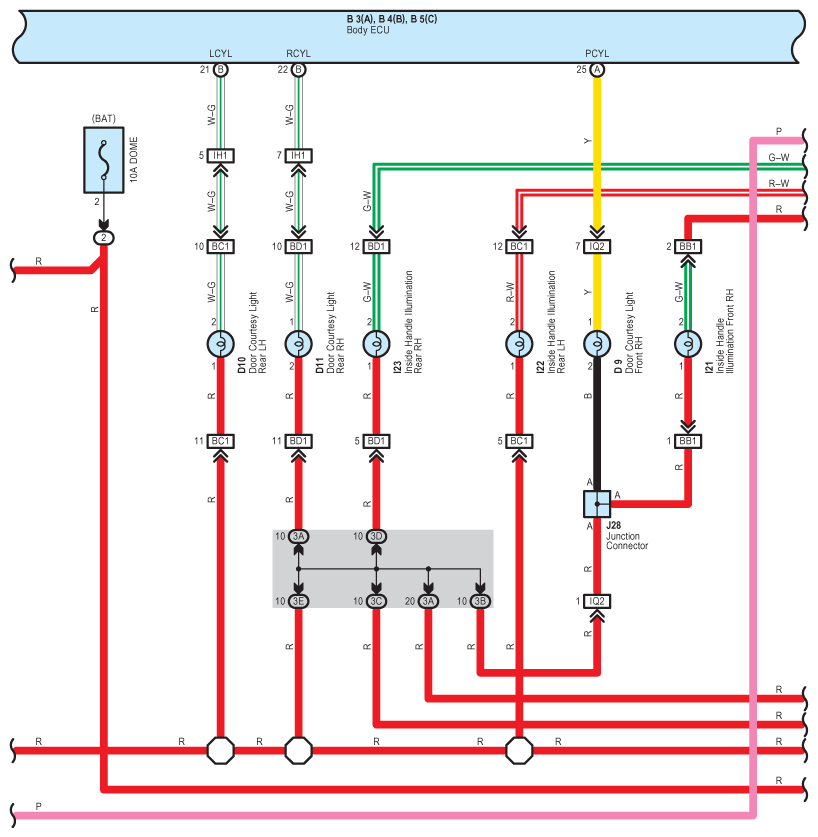

Fig 4: Multiplex Communication System - BEAN Wiring Diagram (4 Of 21)

G08910030

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

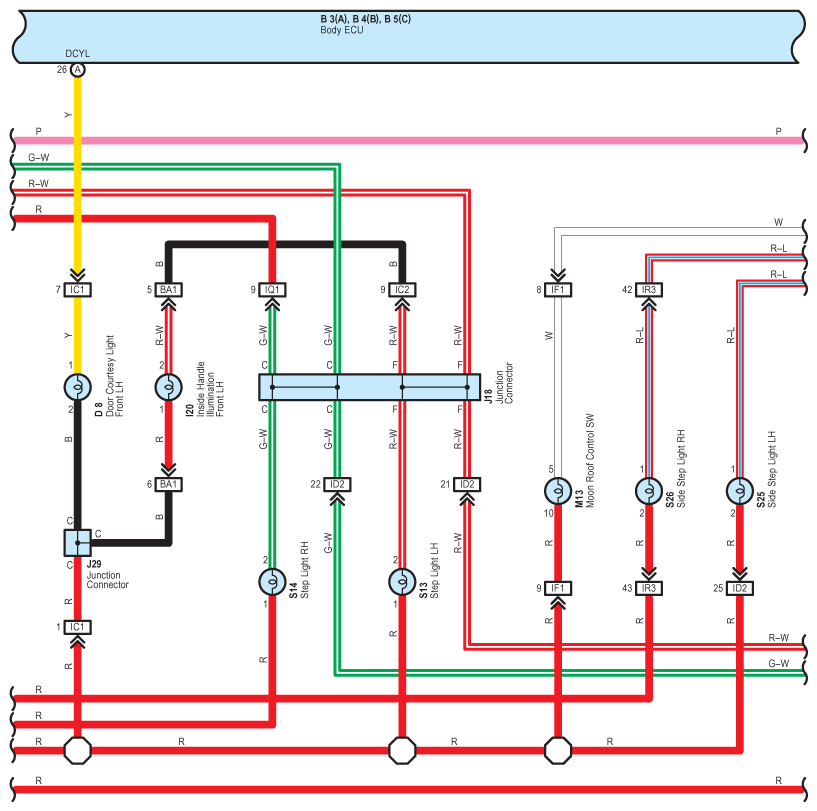

Fig 5: Multiplex Communication System - BEAN Wiring Diagram (5 Of 21)

G08910031

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

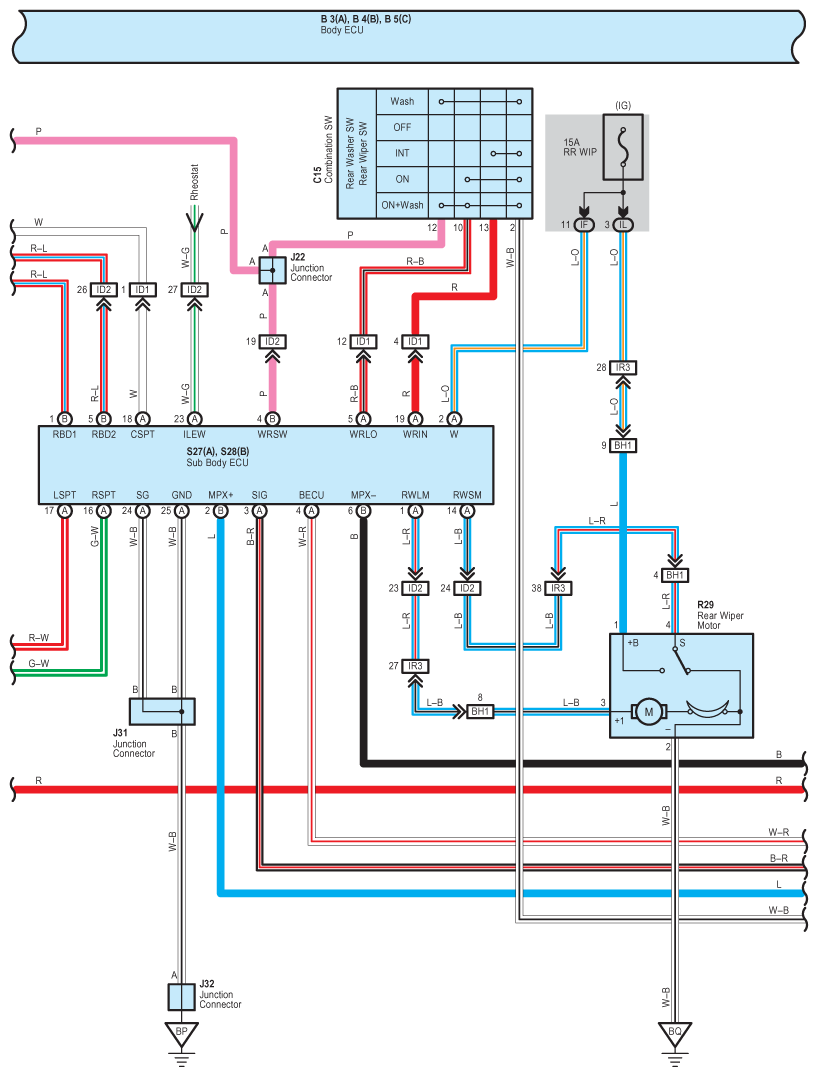

Fig 6: Multiplex Communication System - BEAN Wiring Diagram (6 Of 21)

G08910032

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

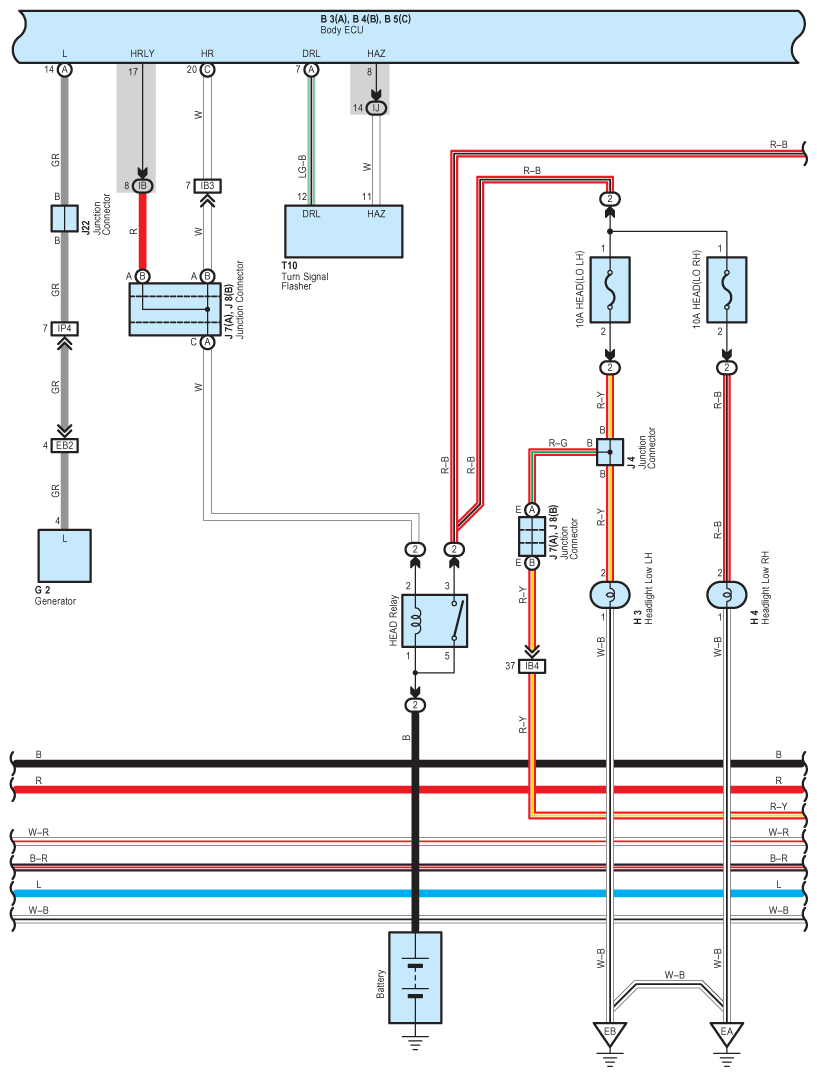

Fig 7: Multiplex Communication System - BEAN Wiring Diagram (7 Of 21)

G08910033

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

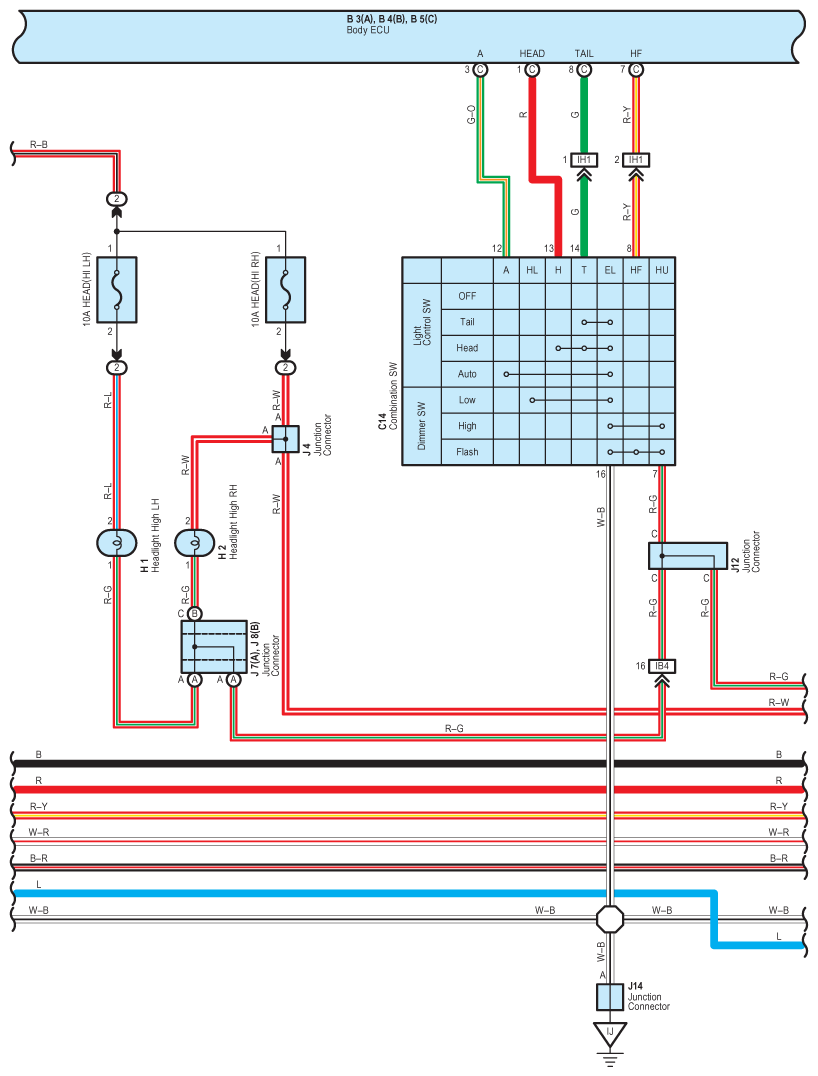

Fig 8: Multiplex Communication System - BEAN Wiring Diagram (8 Of 21)

G08910034

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

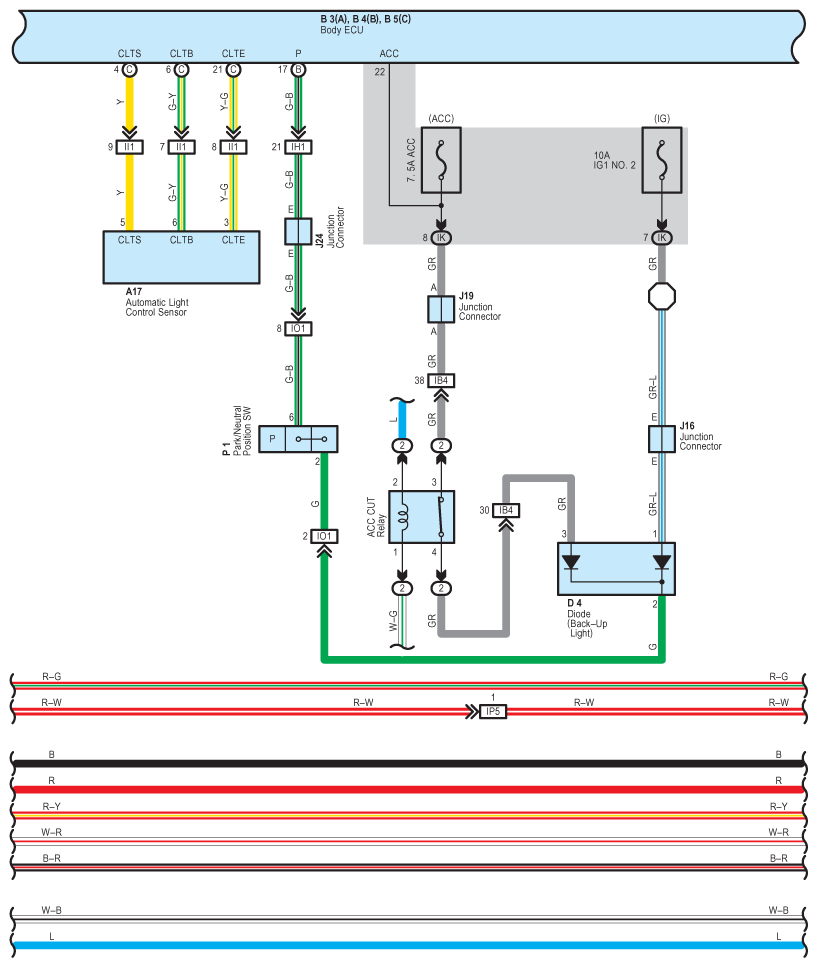

Fig 9: Multiplex Communication System - BEAN Wiring Diagram (9 Of 21)

G08910035

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

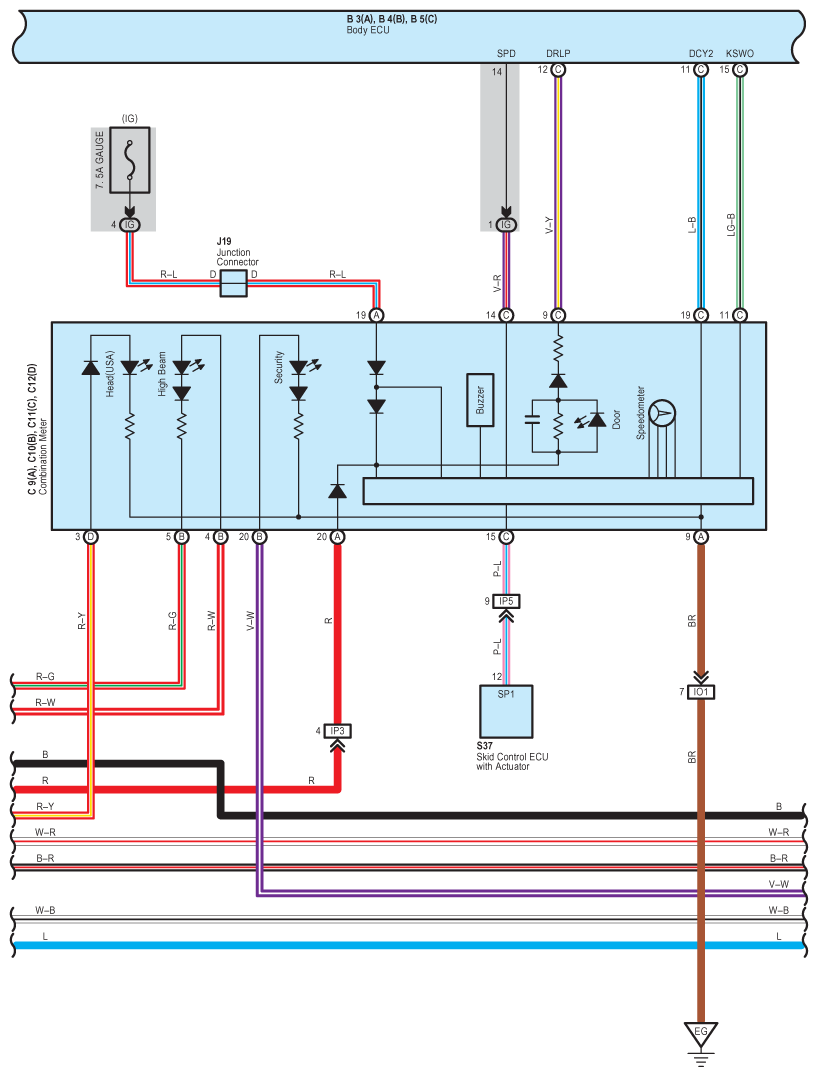

Fig 10: Multiplex Communication System - BEAN Wiring Diagram (10 Of 21)

G08910036

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

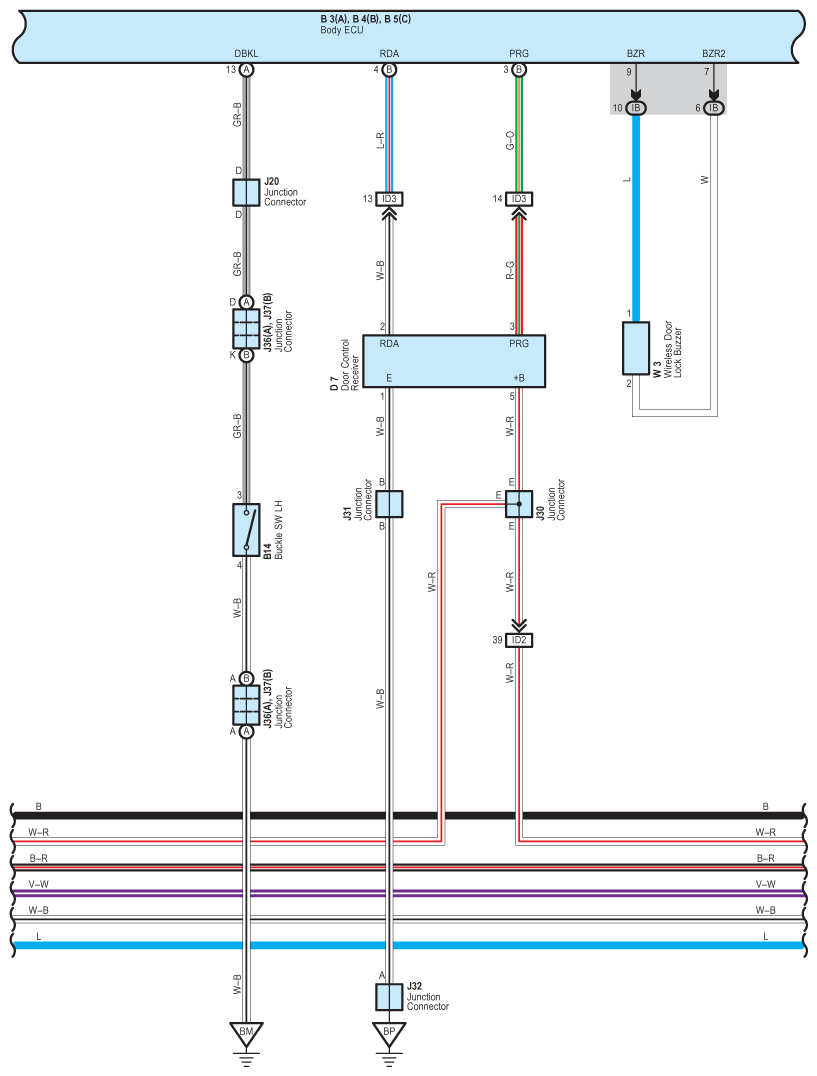

Fig 11: Multiplex Communication System - BEAN Wiring Diagram (11 Of 21)

G08910037

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

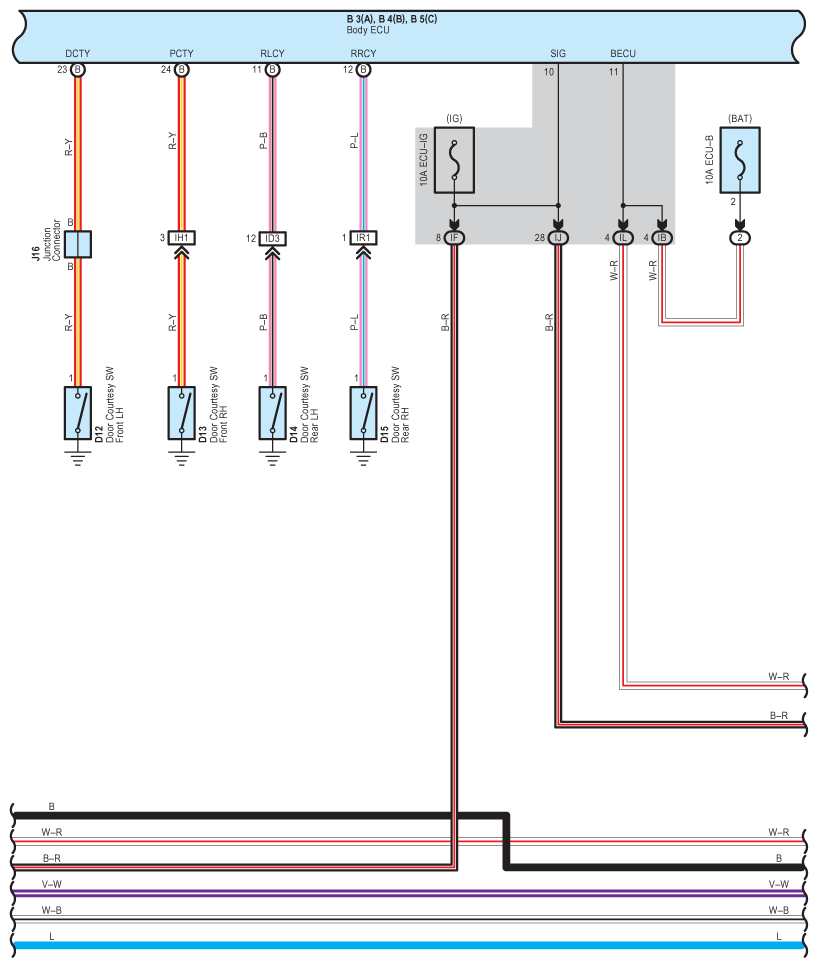

Fig 12: Multiplex Communication System - BEAN Wiring Diagram (12 Of 21)

G08910038

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

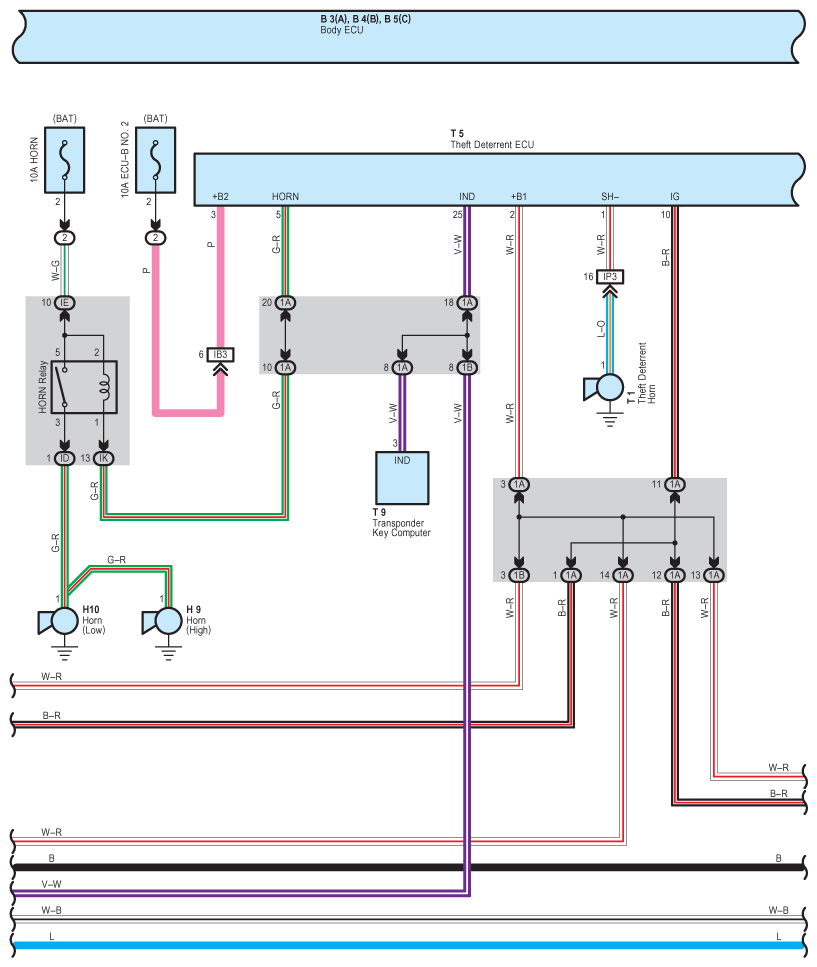

Fig 13: Multiplex Communication System - BEAN Wiring Diagram (13 Of 21)

G08910039

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

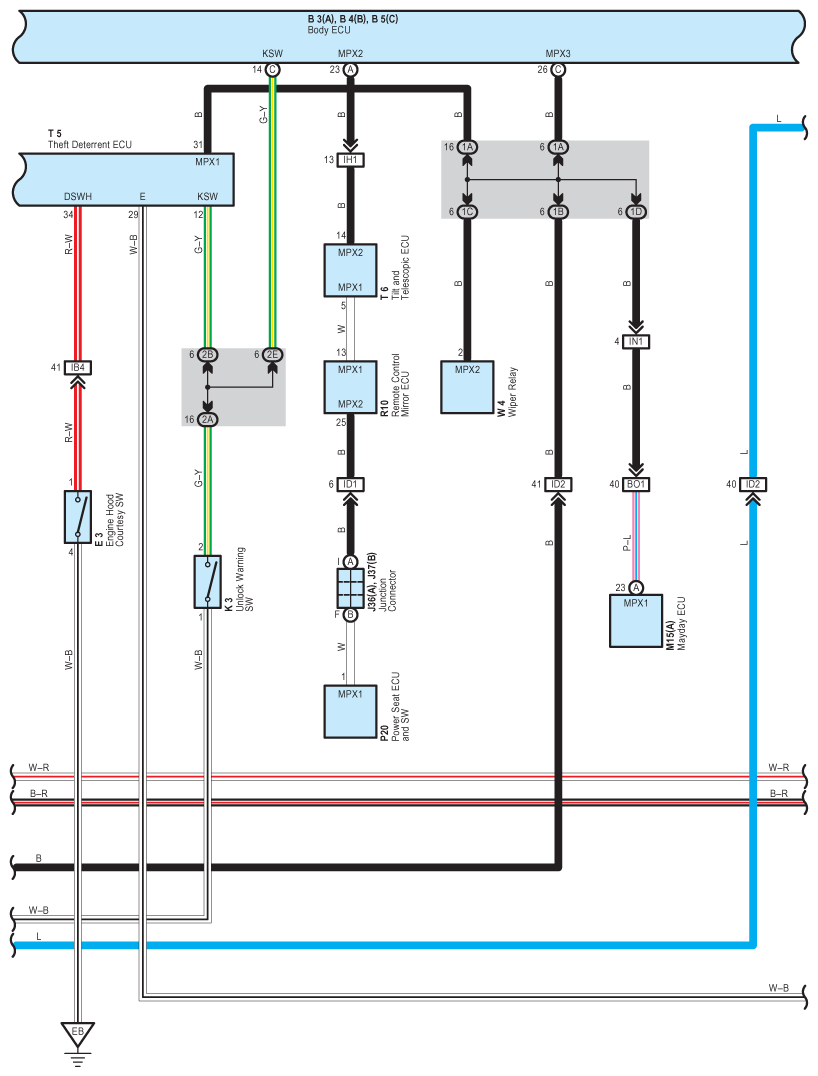

Fig 14: Multiplex Communication System - BEAN Wiring Diagram (14 Of 21)

G08910040

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

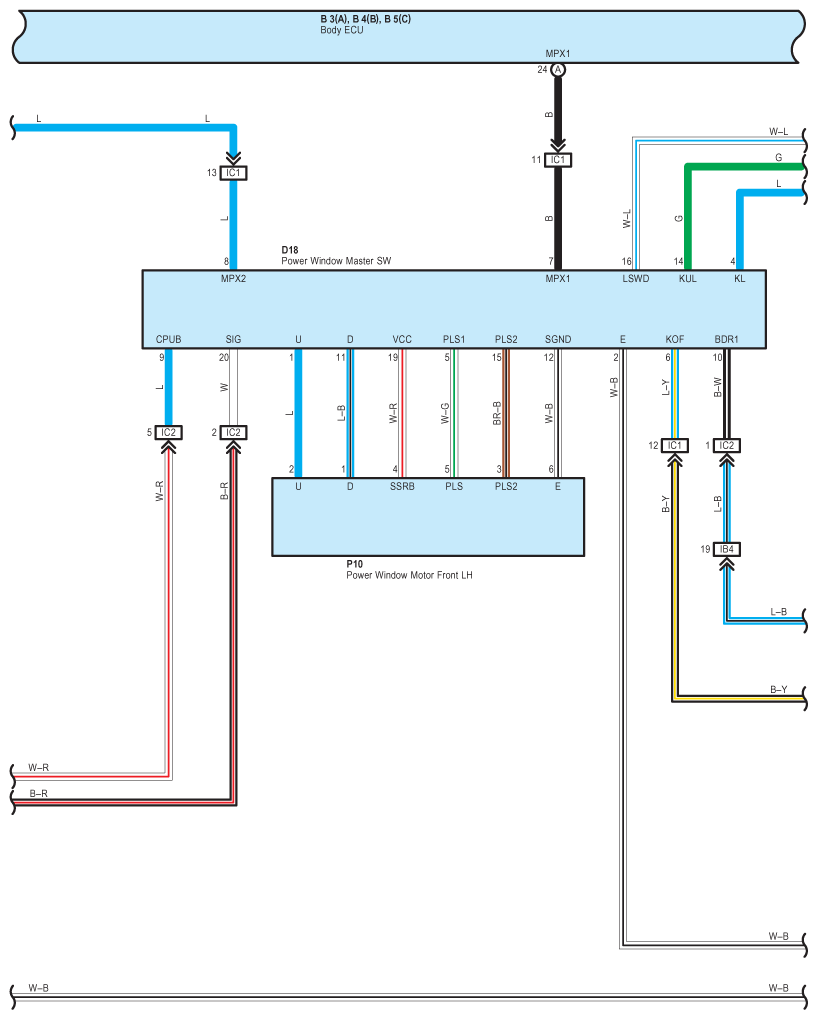

Fig 15: Multiplex Communication System - BEAN Wiring Diagram (15 Of 21)

G08910041

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

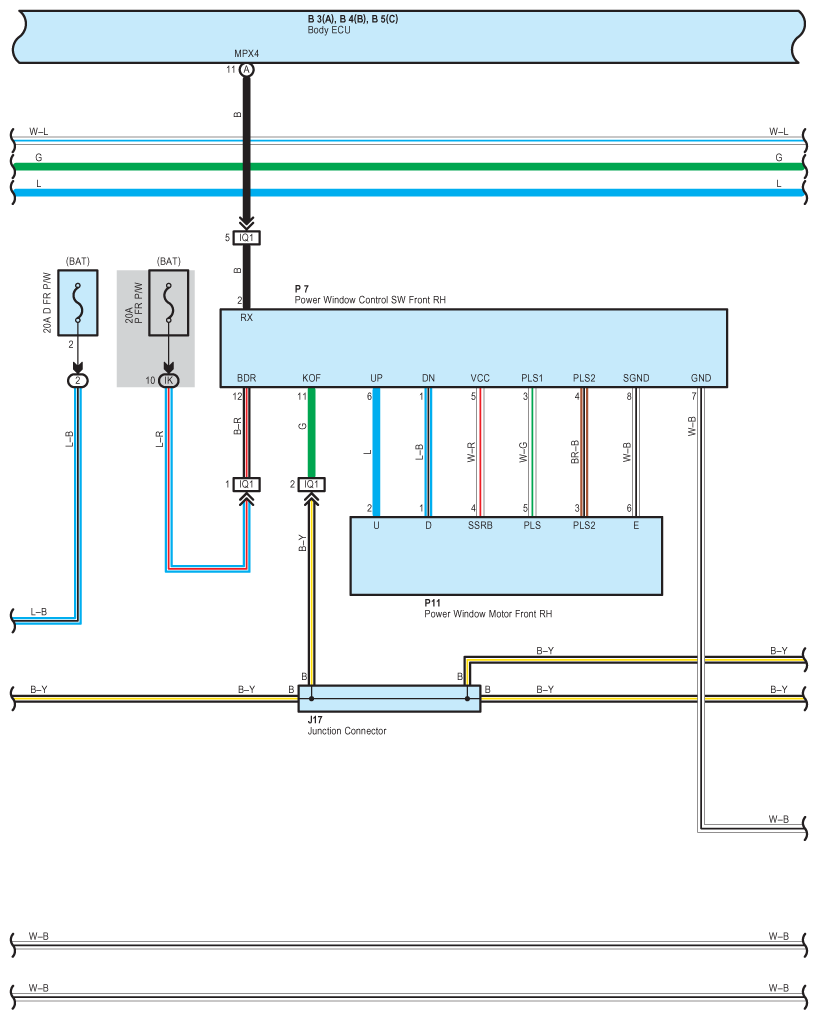

Fig 16: Multiplex Communication System - BEAN Wiring Diagram (16 Of 21)

G08910042

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

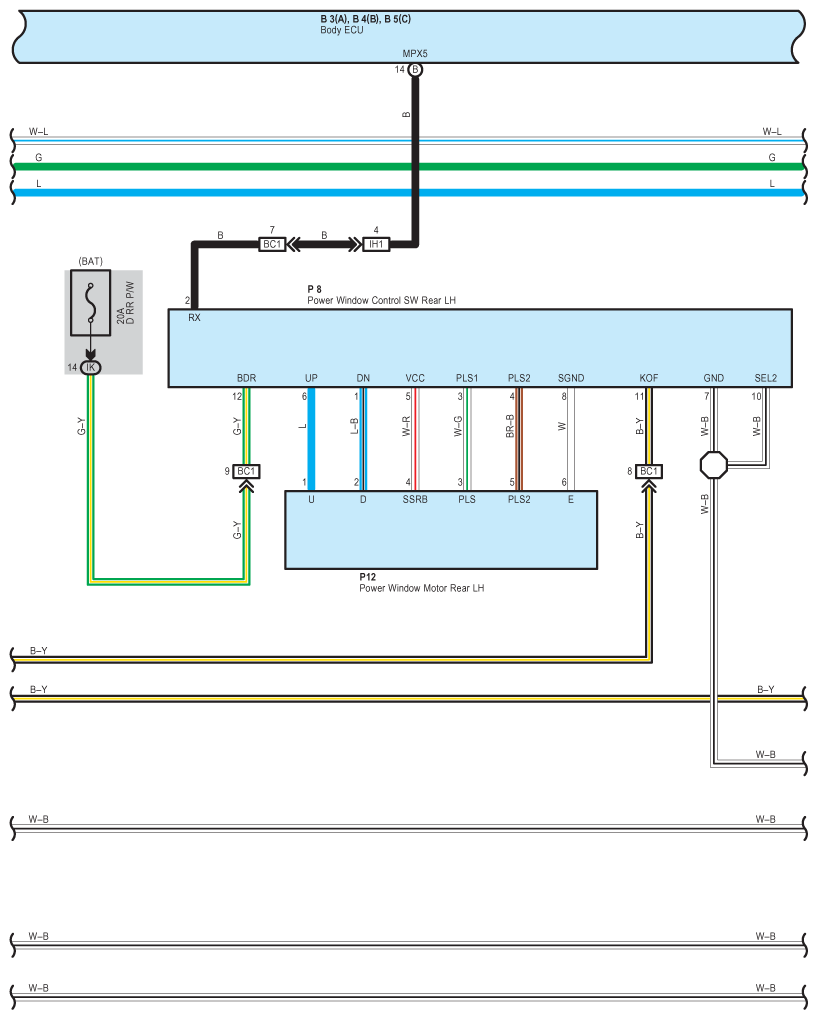

Fig 17: Multiplex Communication System - BEAN Wiring Diagram (17 Of 21)

G08910043

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

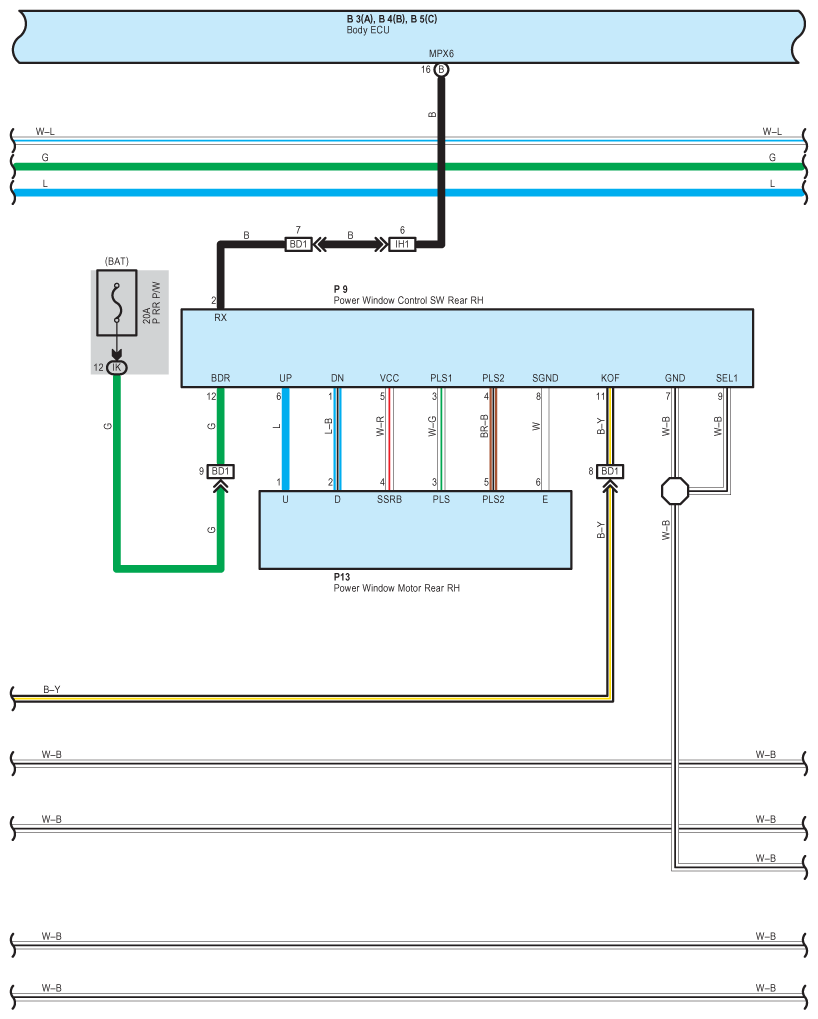

Fig 18: Multiplex Communication System - BEAN Wiring Diagram (18 Of 21)

G08910044

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

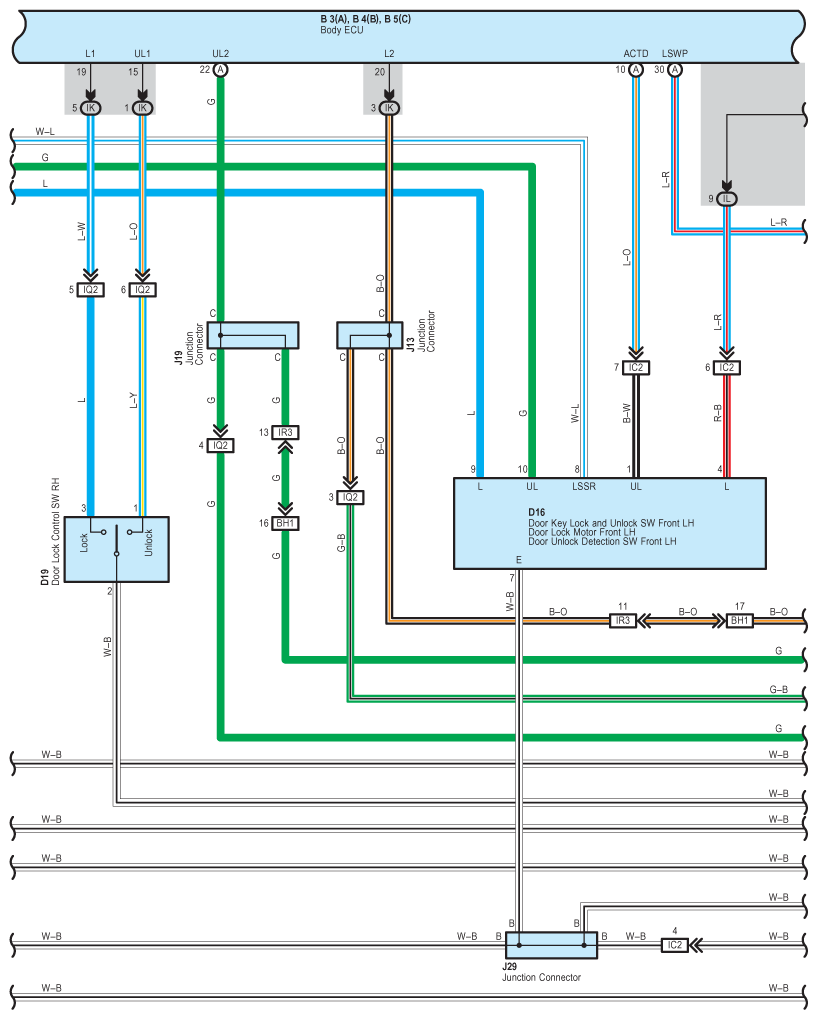

Fig 19: Multiplex Communication System - BEAN Wiring Diagram (19 Of 21)

G08910045

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

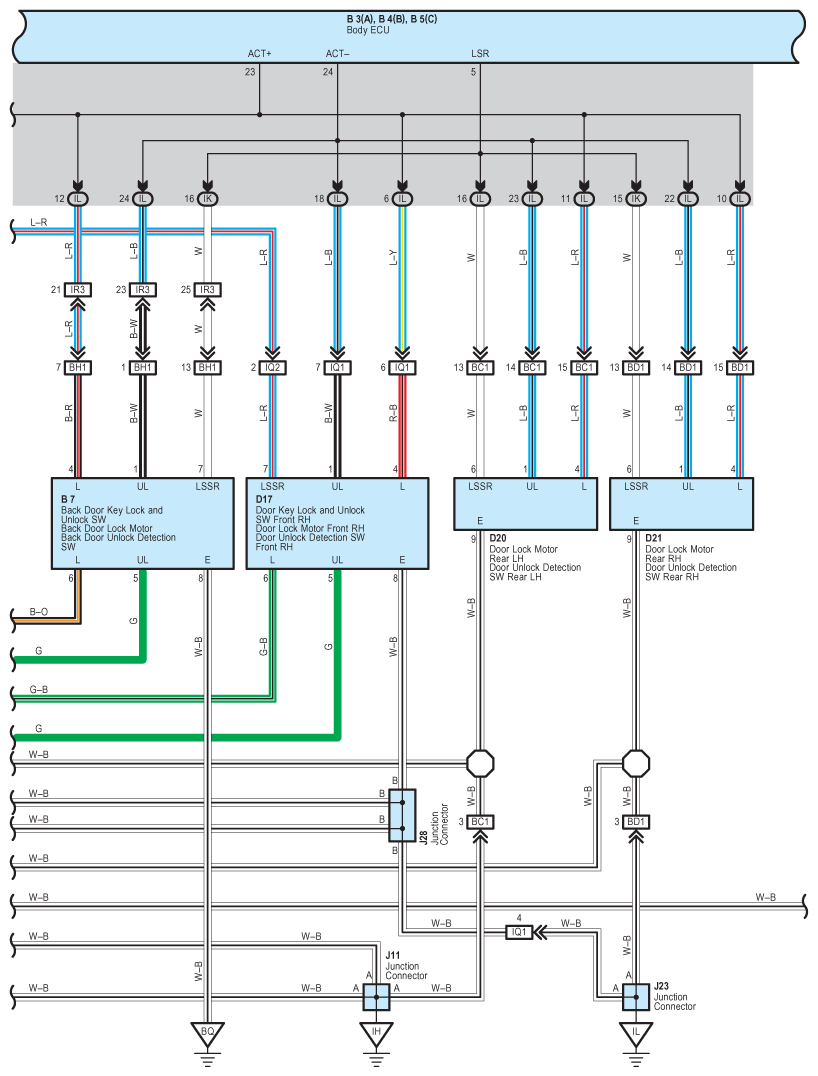

Fig 20: Multiplex Communication System - BEAN Wiring Diagram (20 Of 21)

G08910046

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

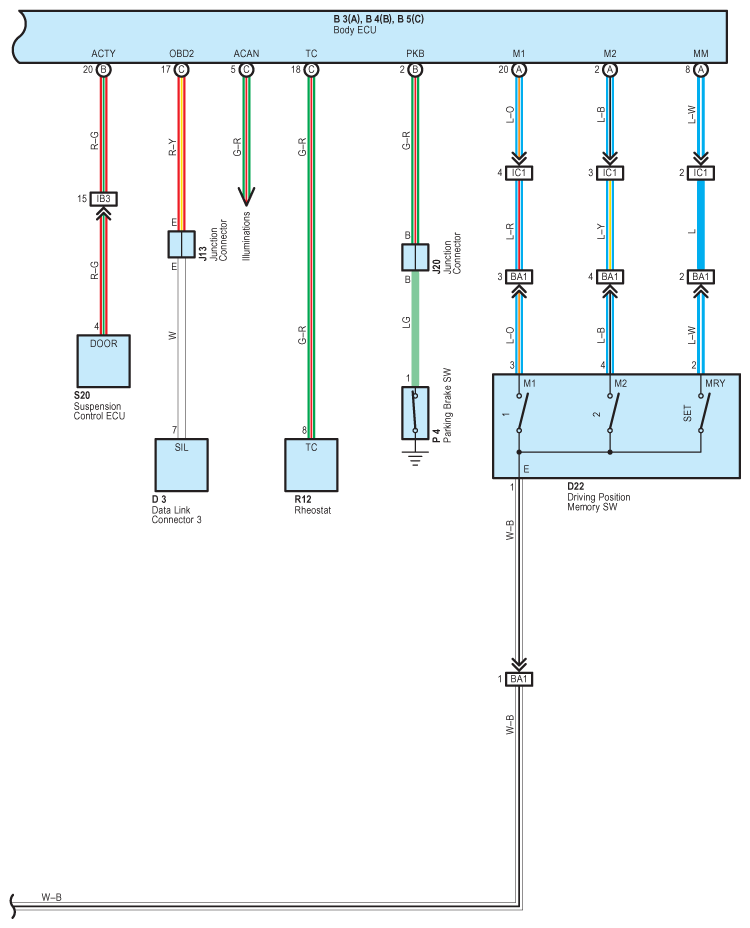

Fig 21: Multiplex Communication System - BEAN Wiring Diagram (21 Of 21)

G08910047

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
