Stop Light: Notes

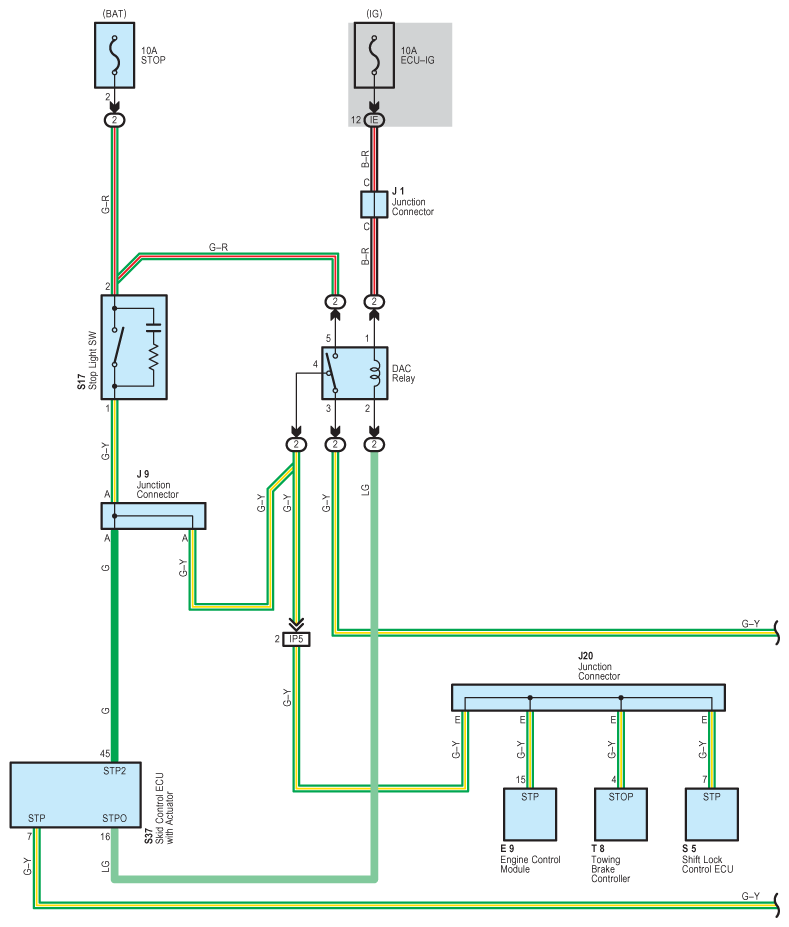

Fig 1: Stop Light Wiring Diagram (1 Of 2)
G08910072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

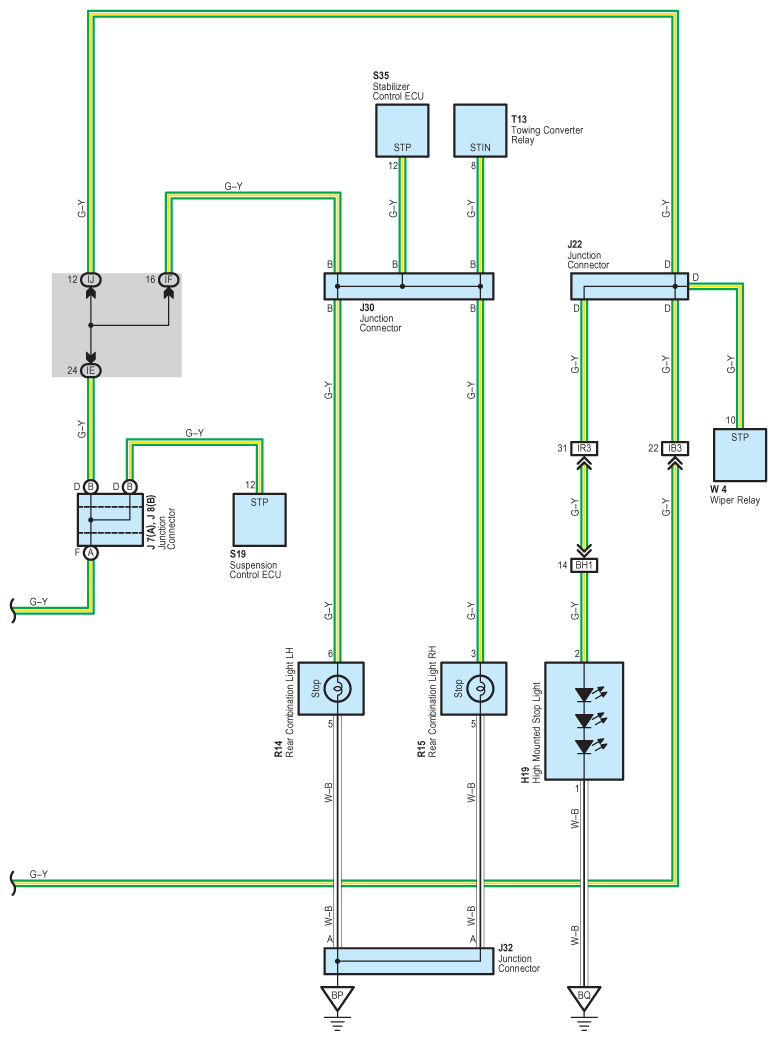

Fig 2: Stop Light Wiring Diagram (2 Of 2)
G08910073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
