Tire Pressure Warning System: Notes

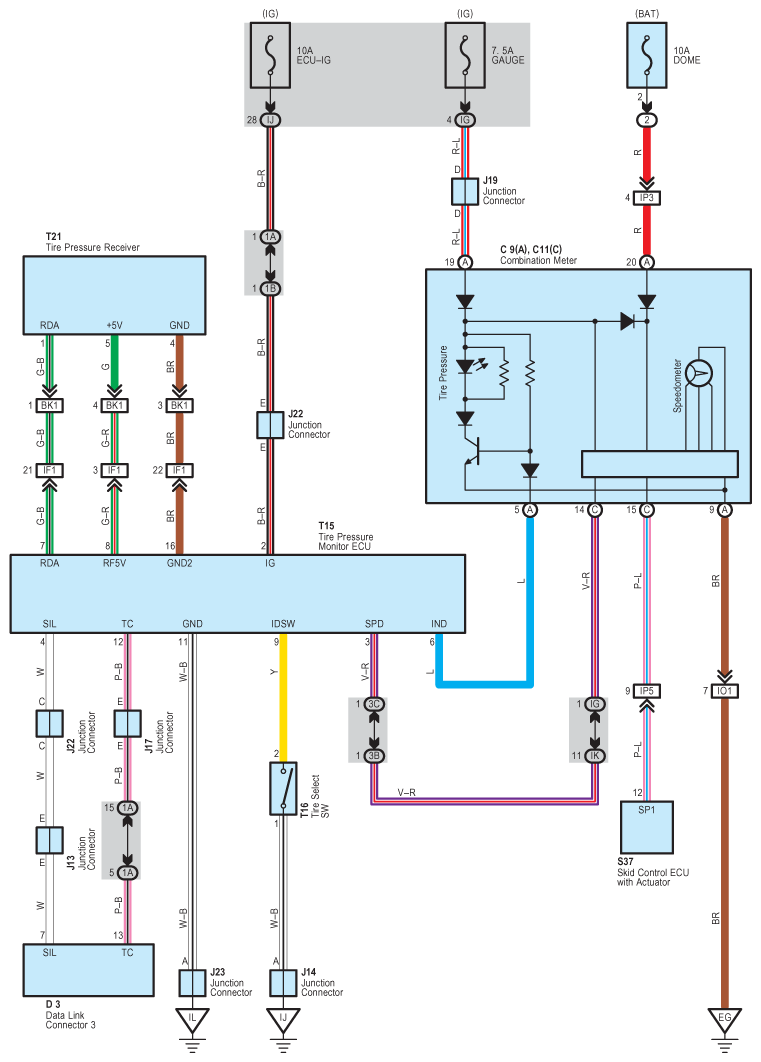

Fig 1: Tire Pressure Warning System Wiring Diagram
G08910077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
