GPS Antenna: Replacement

HINT:

The installation is in the reverse order of the removal. However, when there is a special point concerning the installation, it is indicated.

1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY W/ DEFROSTER NOZZLE DUCT (SEE STEP 47 IN  REPLACEMENT  )
2. REMOVE GPS ANTENNA
   1. Disengage the 4 clips.
   2. Remove the 2 screws and GPS antenna.

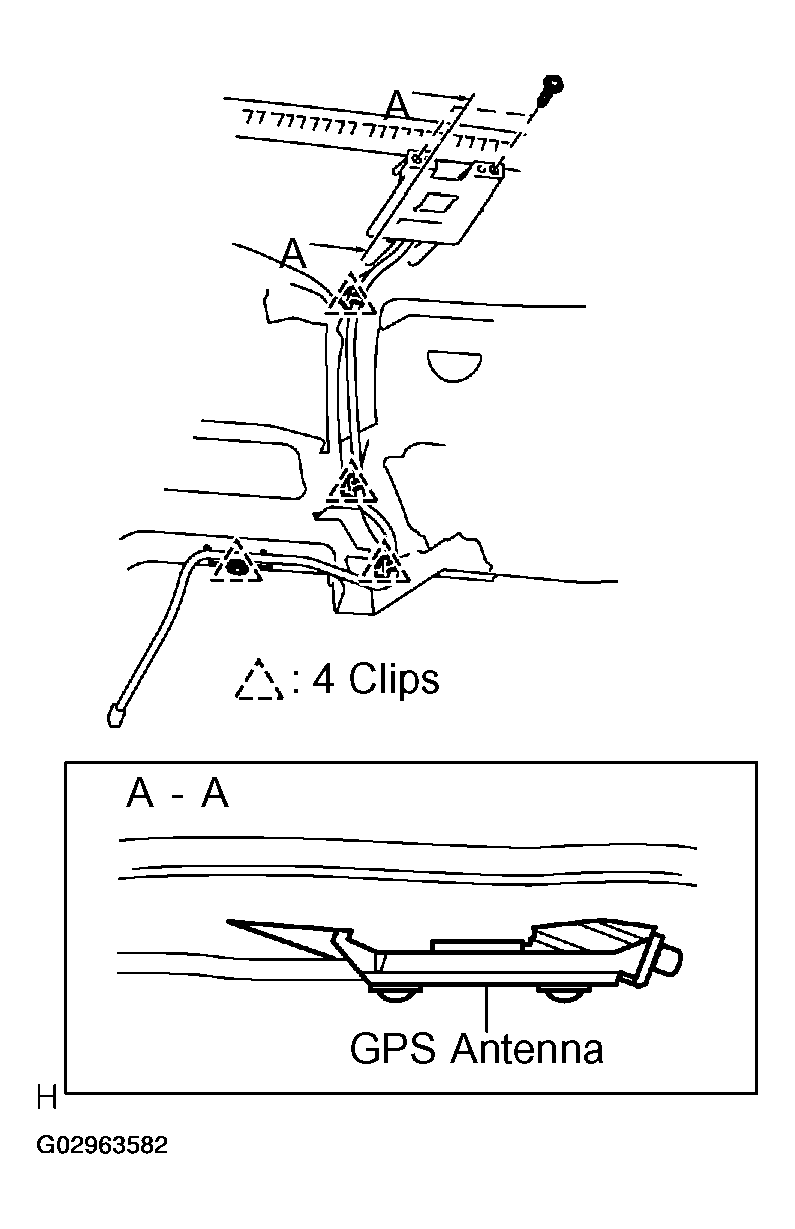

      Fig 1: Removing GPS Antenna

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. INSTALL GPS ANTENNA
   1. Install the GPS antenna with the 2 screws.
   2. Install the 4 clips.
      Fig 2: Installing GPS Antenna

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
