Throttle W/ Motor Body ASSY (2UZ-FE): Components

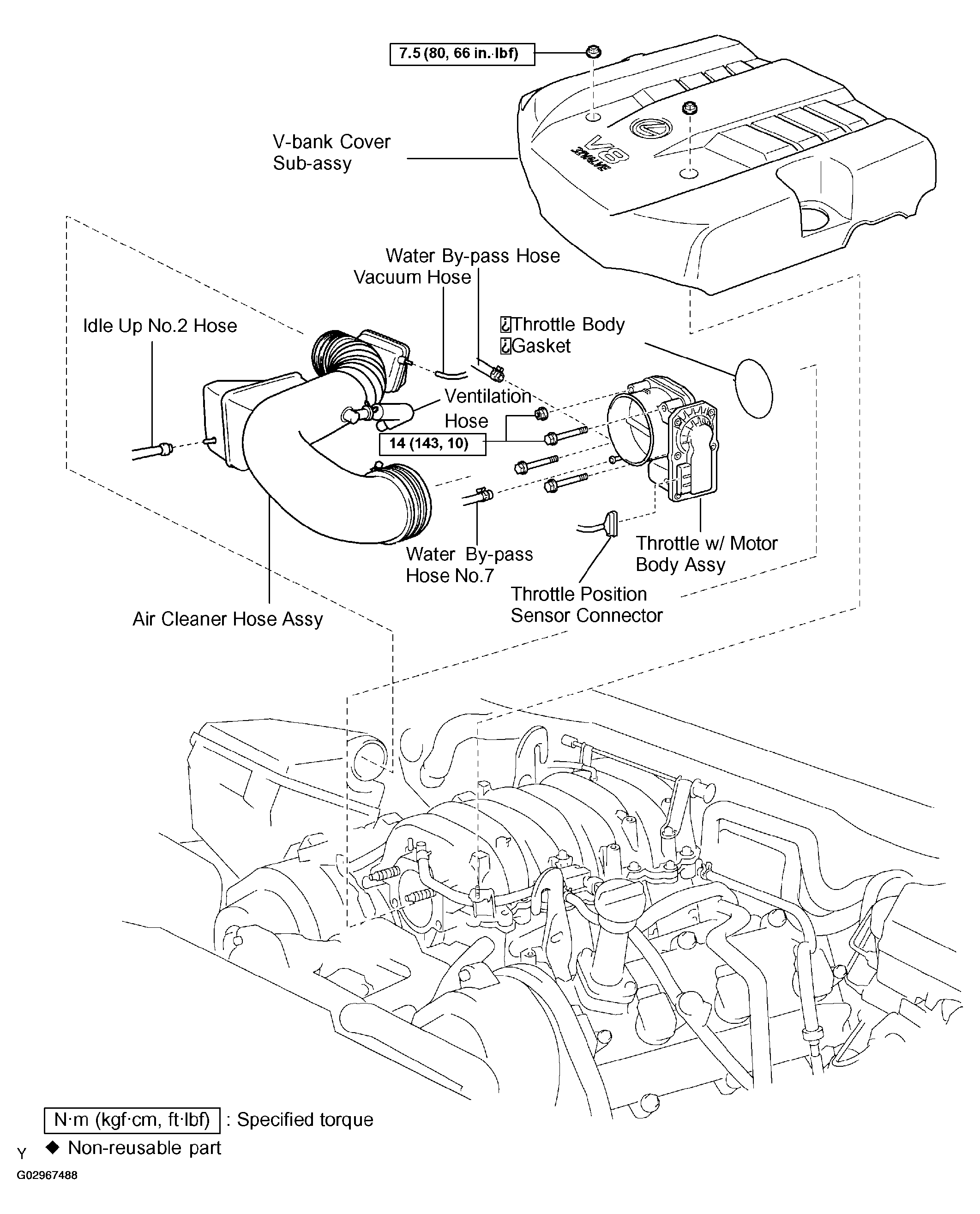

Fig 1: Removal And Installation Of Throttle W/Motor Body Assy (With Specifications - 2UZ-FE)
G02967488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
