Crankshaft Position Sensor: Components

Fig 1: Identifying Crankshaft Position Sensor Replacement Components With Torque Specifications (1 Of 2)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

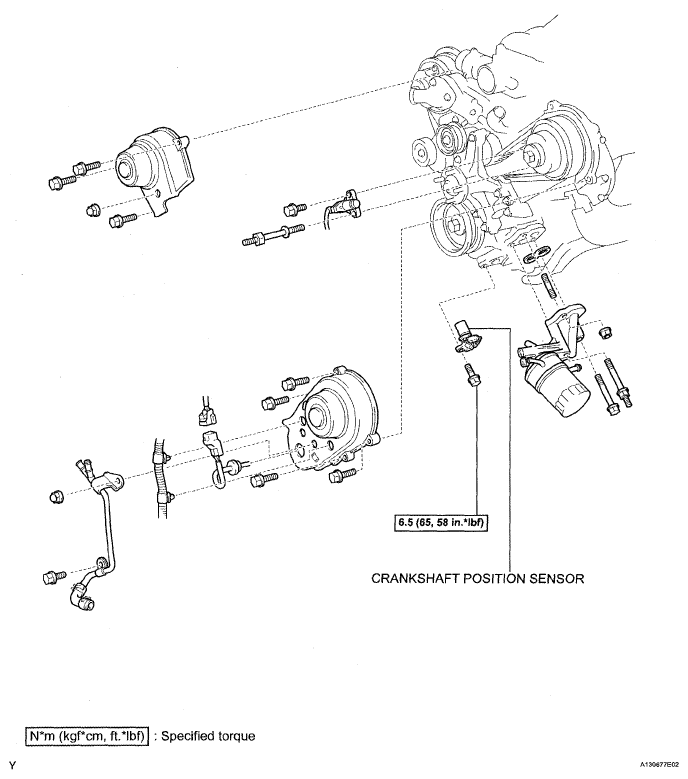

Fig 2: Identifying Crankshaft Position Sensor Replacement Components With Torque Specifications (2 Of 2)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
