Circuit Description

Refer to DTC P0115 in CIRCUIT DESCRIPTION  .

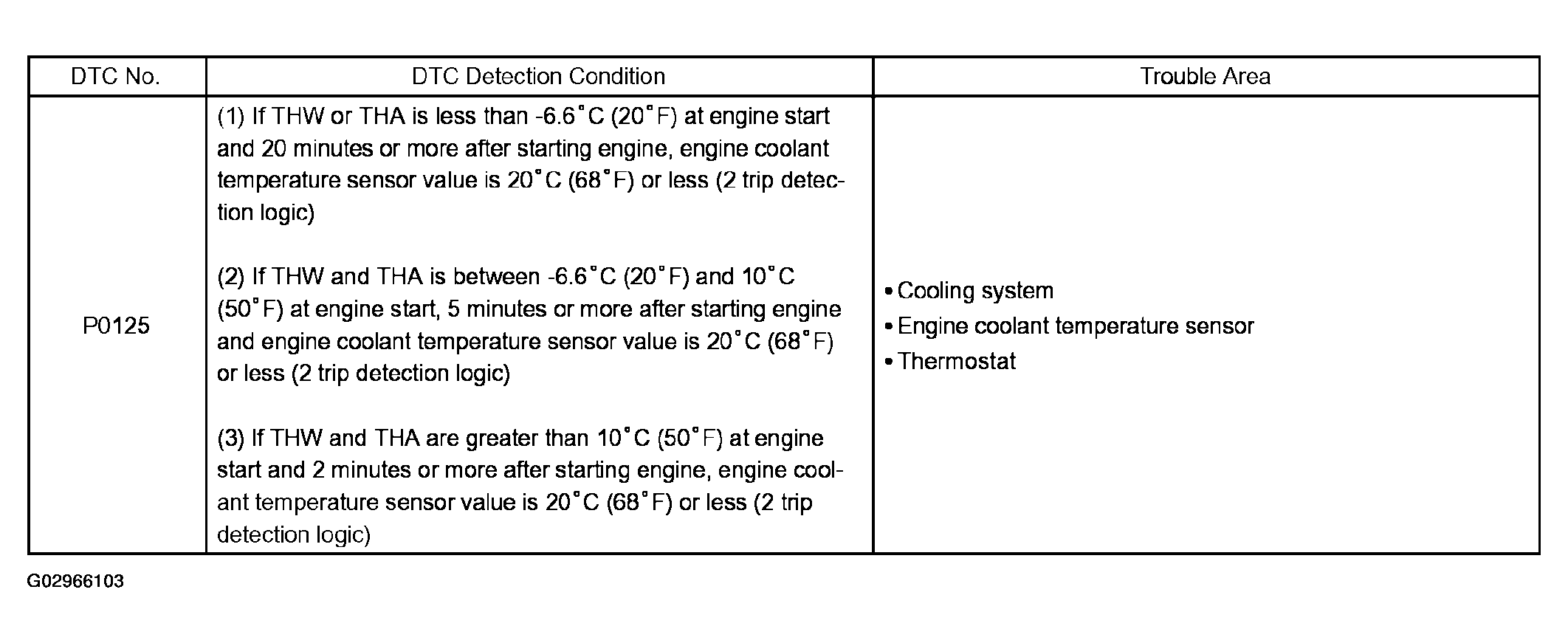

Fig 1: Insufficient Coolant Temperature For Closed Loop Fuel Control Circuit Description
G02966103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
