Monitor Description

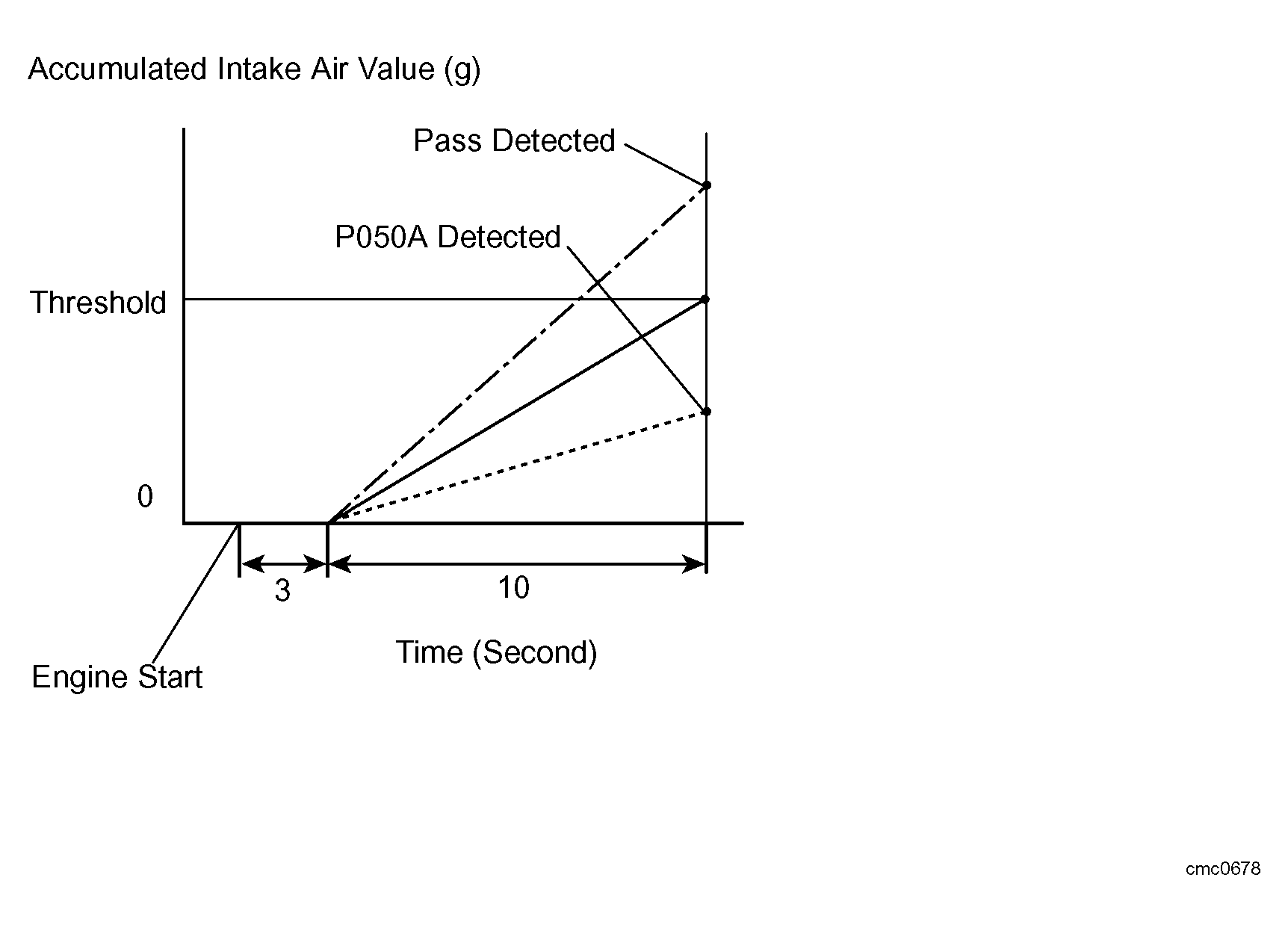

Fig 1: Cold Start Idle Air Control System Performance - Monitor Description Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

The ECM monitors the intake air amount during idling and the ignition timing.

When the engine coolant temperature is between -10°C and 50°C (14°F and 122°F), the ECM calculates the idling intake air amount for 10 seconds, beginning 3 seconds after the engine starts.

When the accumulated value is below the threshold, the ECM interprets this as a malfunction in the Idle Speed Control (ISC) system at cold start.

The ECM also monitors the ignition timing at cold start, and judges it to be incorrect when it is advanced to the same value for a warm engine for 5 seconds or more of the 10 seconds monitoring period.

Example:

P050A is detected when all conditions below are met (2 trip detection logic).

The engine coolant temperature is -10°C (14°F) or more when the engine starts.
The engine idles for 3 seconds after engine start.
The accumulated intake air amount is below the threshold.

If a malfunction is not repaired successfully, the ECM sets the DTC and illuminates the MIL 3 seconds after the engine is next started.

NOTE: When the negative battery terminal is disconnected during inspection or repairs, the ISC learning values are cleared. The ISC learning must be performed by warming up the engine and idling for 5 minutes with the engine coolant temperature at 75°C (167°F) or more because DTCs cannot be detected with the ISC learning values cleared.
