Circuit Description

To ensure the accuracy of the EVAP (Evaporative Emission) monitor values, the soak timer, which is built into the ECM, measures 5 hours (± 15 minutes) from when the ignition switch is turned OFF, before the monitor is run. This allows the fuel to cool down, which stabilizes the Fuel Tank Pressure (FTP). When 5 hours have elapsed, the ECM turns on.

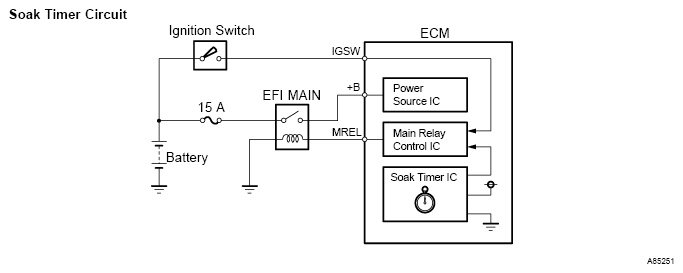

Fig 1: ECM/PCM Internal Engine Off Timer Performance Circuit Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
