ECM Power Source Circuit: Wiring Diagram

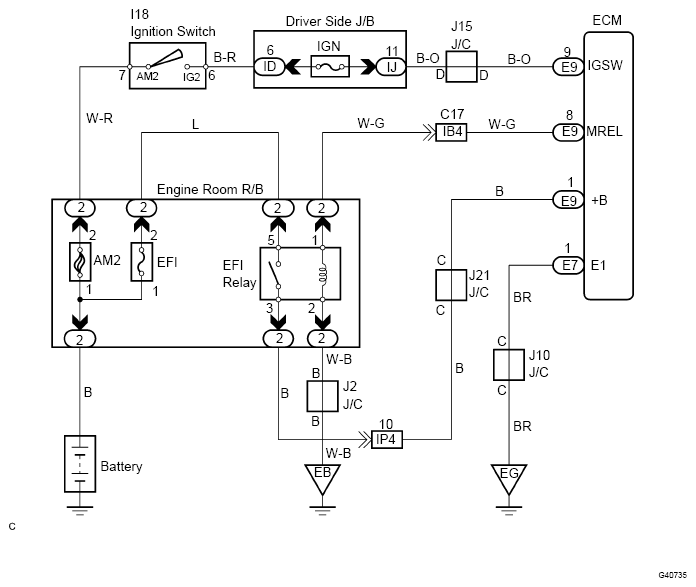

Fig 1: Wiring Diagram Of ECM Power Source Circuit
G04676500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
