Purge flow monitor

The purge flow monitor consists of the two monitors. The 1st monitor is always conducted every time and the 2nd monitor is activated if necessary.

Atmospheric pressure check:

In order to ensure reliable malfunction detection, the variation between the atmospheric pressures, before and after conduction of the purge flow monitor, is measured by the ECM.

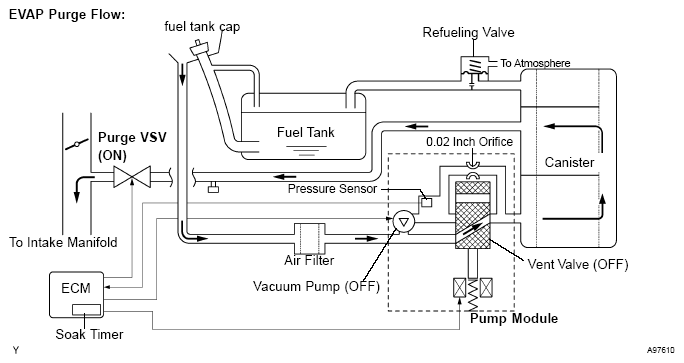

Fig 1: EVAP Purge Flow Diagram
G04676466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMPONENTS OPERATIONS

Components Operations
Canister Contains activated charcoal to absorb EVAP (Evaporative Emissions) generated in fuel tank.
Cut-off valve Located in fuel tank. Valve floats and closes when fuel tank is 100 % full.
Purge VSV (Vacuum Switching Valve) Opens or closes line between canister and intake manifold. ECM uses purge VSV to control EVAP purge flow. In order to discharge EVAP absorbed by canister to intake manifold, ECM opens purge VSV. EVAP discharge volume to intake manifold controlled by purge VSV duty cycle ratio (current-carrying time). (Open: ON, Close: OFF)
Refueling valve Controls EVAP pressure from fuel tank to canister. Valve consists of diaphragm, spring and restrictor (diameter: 0.08 inch). When fuel vapor and pressure inside fuel tank increase, valve opens. While EVAP purged, valve closes and restrictor prevents large amount of vacuum from affecting pressure in fuel tank. Valve opened while refueling. When valve open, adding fuel into fuel tank possible.
Roll-over valve Located in fuel tank. Valve closes by its own weight when vehicle overturns to prevent fuel from spilling out.
Service port Used for connecting vacuum gauge for inspecting EVAP system.
Soak timer Built into ECM. To ensure accurate EVAP monitor, measures 5 hours(1) after ignition switch turned to OFF. This allows fuel to cool down, stabilizing Fuel Tank Pressure (FTP). When approx. 5 hours* elapsed, ECM activates.
Pump module Consists of (a) to (d) below. Pump module cannot be disassembled.
  1. Vent valve
Vents and closes EVAP system. When ECM turns valve ON, EVAP system closed. When, ECM turns valve OFF, EVAP system vented. Negative pressure (vacuum) created in EVAP system to check for EVAP leaks by closing purge VSV, turning on vent valve (closed) and operating vacuum pump (refer to Fig 2).
  1. (b) Pressure sensor
Indicates pressure as voltages. ECM supplies regulated 5 V to pressure sensor, and uses feedback from sensor to monitor EVAP system pressure (refer to Fig 3).
  1. (c) Vacuum pump
Creates negative pressure (vacuum) in EVAP system for leak check.
  1. (d) 0.02 inch orifice
Has opening with 0.02 inch diameter. Vacuum produced through orifice by closing purge VSV, turning off vent valve and operating vacuum pump, to monitor 0.02 inch leak pressure. 0.02 inch leak pressure indicates small leak of EVAP.
HINT:
(1) If the engine coolant temperature is not below 35°C after 5 hours after the ignition switch is turned off, the monitor check starts 2 hours later. If it is still not below 35°C 7 hours after the ignition switch is turned off, the monitor check starts 2.5 hours later.

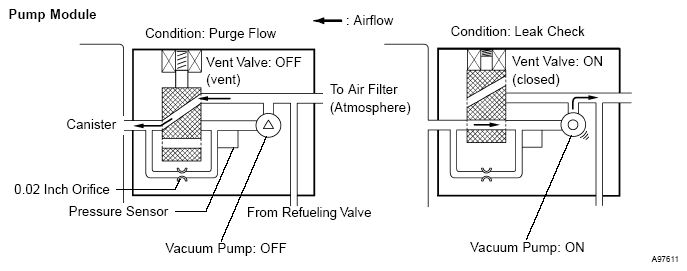

Fig 2: Pump Module Diagram
G04676467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Pressure Sensor Voltage Graph Specification
G04676468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

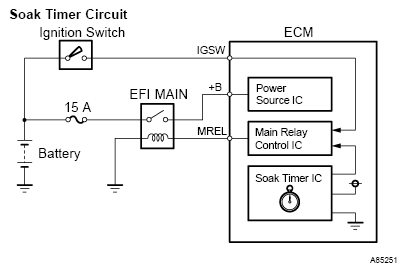

Fig 4: Soak Timer Circuit Diagram
G04676469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
