Section 113 (Audio/Visual): Multi-Display: Components

WARNING: This page is about a different car, the 2007 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

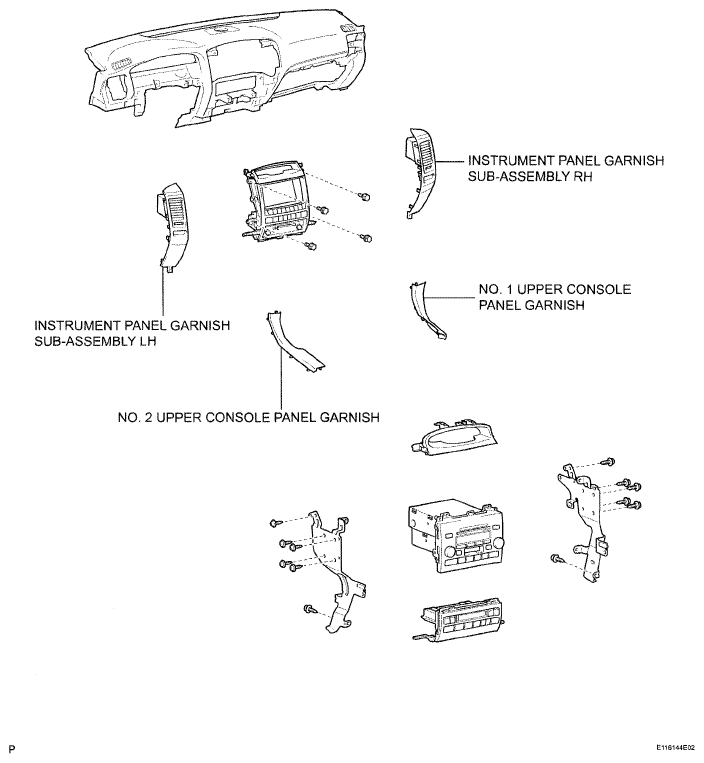

Fig 1: Identifying Multi-Display Replacement Components (1 Of 2)
G05266203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

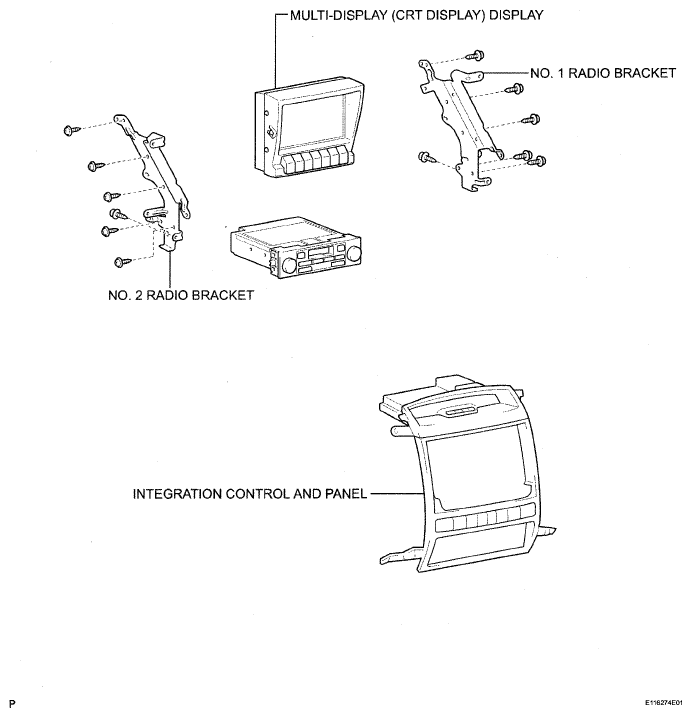

Fig 2: Identifying Multi-Display Replacement Components (2 Of 2)
G05266204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
