Network Gateway Ecu: Components

WARNING: This page is about a different car, the 2007 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Network Gateway ECU Replacement Components (1 Of 2)
G05266255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

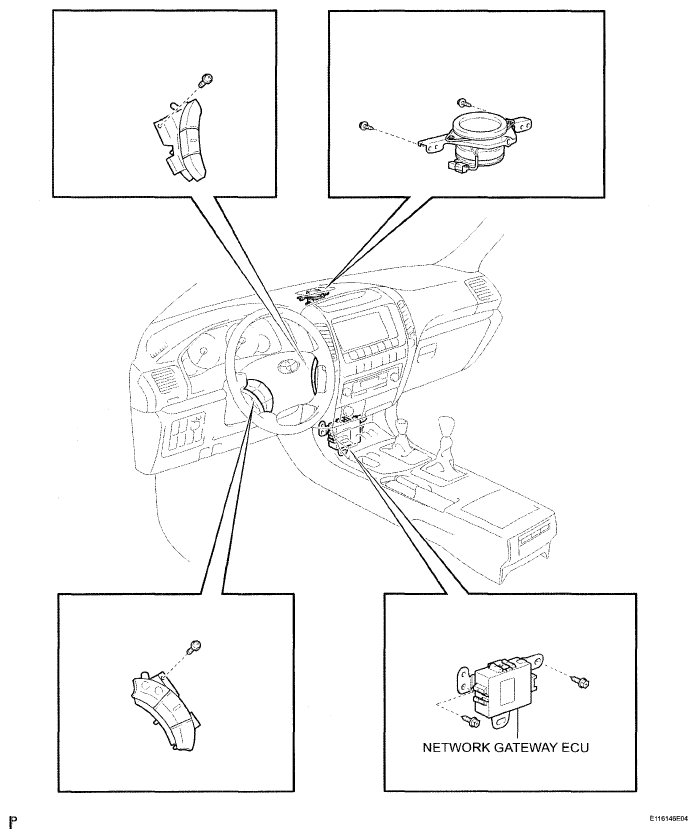

Fig 2: Identifying Network Gateway ECU Replacement Components (2 Of 2)
G05266256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
