Radio Receiver: Removal

WARNING: This page is about a different car, the 2007 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE NO. 2 UPPER CONSOLE PANEL GARNISH (See REMOVAL )
REMOVE NO. 1 UPPER CONSOLE PANEL GARNISH (See REMOVAL )
REMOVE INSTRUMENT PANEL GARNISH SUB-ASSEMBLY LH (See REMOVAL )
REMOVE INSTRUMENT PANEL GARNISH SUB-ASSEMBLY RH
REMOVE INTEGRATION CONTROL AND PANEL (See REMOVAL )
REMOVE NO. 1 RADIO BRACKET
1. Remove the 5 screws.

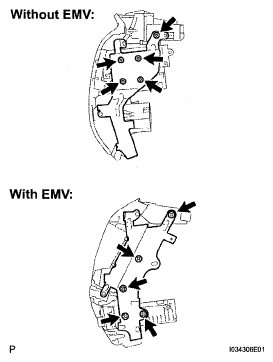

  Fig 1: Identifying No. 1 Radio Bracket Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the screw.
3. Release the 2 claws and remove the No. 1 radio bracket.

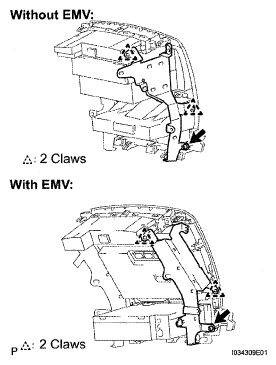

  Fig 2: Identifying No. 1 Radio Bracket Claws & Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 RADIO BRACKET
1. Remove the 5 screws.

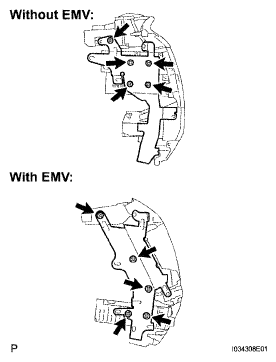

  Fig 3: Identifying No. 2 Radio Bracket Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the screw.
3. Release the 2 claws and remove the No. 2 radio bracket.
Fig 4: Identifying No. 2 Radio Bracket Claws & Screw
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RADIO RECEIVER ASSEMBLY
1. Without EMV:
  Release the 3 claws and remove the radio receiver assembly.

  With EMV:

  Release the 4 claws and remove the radio receiver assembly.

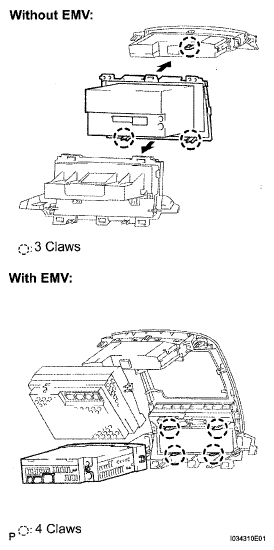

  Fig 5: Identifying Radio Receiver Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
