Acceleration Sensor ASSY (KDSS): Replacement

HINT:

See LOCATION .

1. DISCONNECT BATTERY NEGATIVE TERMINAL
2. REMOVE RR CONSOLE BOX ASSY (SEE  REPLACEMENT  )

   HINT:

   Refer to the procedures up to "REMOVE RR CONSOLE BOX ASSY".

3. REMOVE ACCELERATION SENSOR ASSY
   1. Disengage the 2 clamps.
   2. Remove the 2 bolts and acceleration sensor assy.
   3. Disconnect the connector from the acceleration sensor assy.

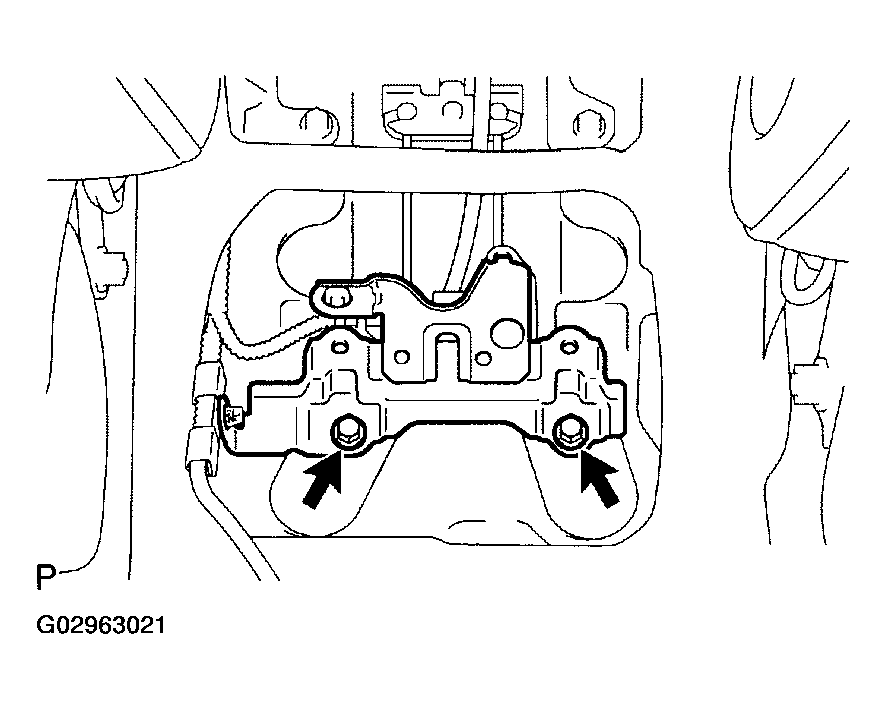

      Fig 1: Removing Acceleration Sensor Assy

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. INSTALL ACCELERATION SENSOR ASSY
   1. Connect the connector to the acceleration sensor assy.
   2. Install the acceleration sensor assy with the 2 bolts.

      Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

   3. Engage the 2 clamps.
      Fig 2: Installing Acceleration Sensor Assy With Bolts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. INSTALL RR CONSOLE BOX ASSY
   NOTE: When installing the rear console box assy, do not apply excessive force, as the bracket may become deformed.
6. CONNECT BATTERY NEGATIVE TERMINAL
7. PERFORM ACCELERATION SENSOR ASSY ZERO POINT CALIBRATION (SEE  CALIBRATION  )
