Key Inter Lock Solenoid: Inspection

1. Disconnect the solenoid connector.
2. Connect KLS+ (4) terminal to the batteries' positive (+) terminal, and KLS- (3) terminal to the battery negative (-) terminal, and apply about 12 V between KLS+ - KLS- terminals.

   Check that operation noise can be heard from the solenoid.

If the solenoid does not operate, replace the solenoid.

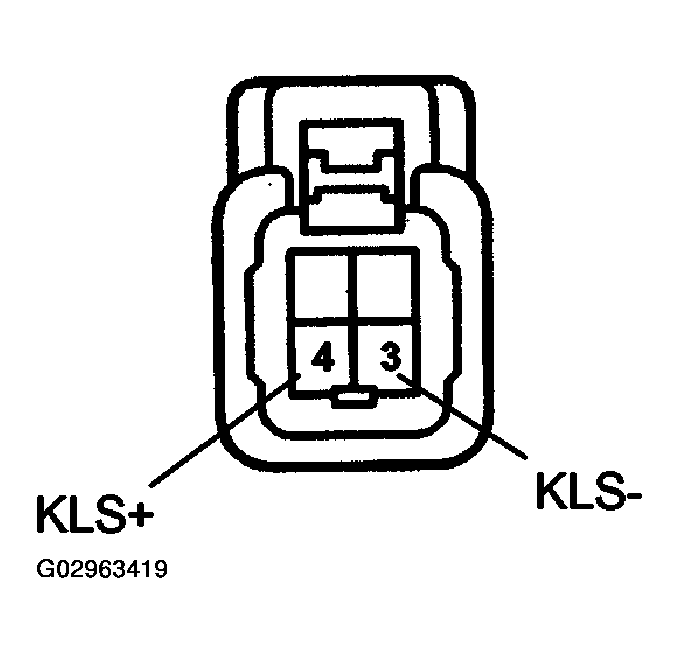

Fig 1: Inspecting Key Inter Lock Solenoid
