Transfer Oil: Adjustment

INSPECT TRANSFER OIL
1. Remove the case plug No. 1 (filler plug) and gasket.
2. Check the oil level is within 0 - 5 mm (0 - 0.20 in.) down from the lowest end of the hole for case plug No. 1 (filler plug).
  NOTE:
  - When changing oil, recheck the oil level after driving.
  - Excessively large or small quantity of oil may cause some trouble.

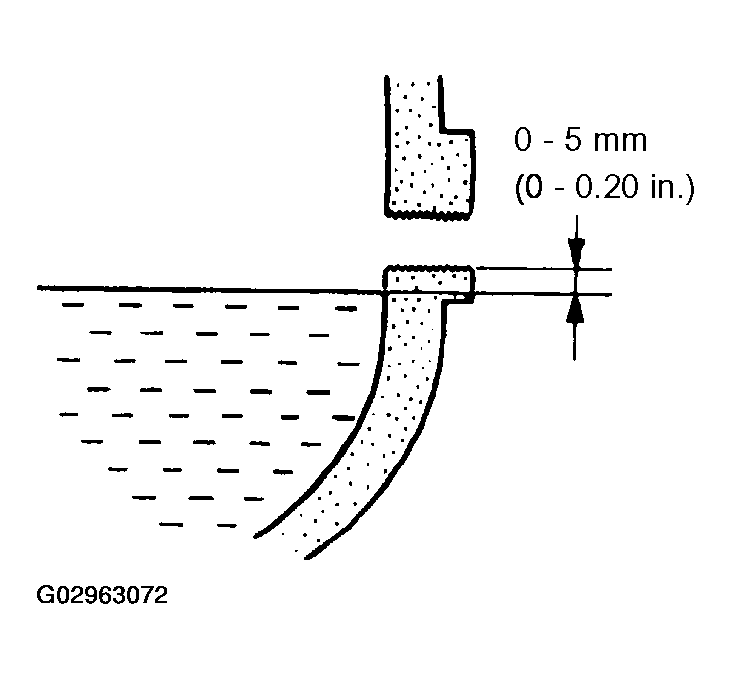

    Fig 1: Checking Oil Level
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. When the oil level is too low, check for oil leakage.
4. Tighten the case plug No. 1 (filler plug) with a new gasket.
  Torque: 37 N.m (377 kgf.cm, 27 ft.lbf)
ADJUST TRANSFER OIL
1. Remove the case plug No. 1 (filler plug) and gasket, and supply oil.
  NOTE:
  - When supplying oil, pour it slowly.
  - Repeat supplying oil several times at several minutes interval.
  HINT:

  Within 0 - 5 mm (0 - 0.20 in.) down from the lowest end of the hole for the case plug No. 1 (filler plug).
2. After leaving it alone for 5 min., check the oil level again.
3. Tighten the case plug No. 1 (filler plug) with a new gasket.
  Torque: 37 N.m (377 kgf.cm, 27 ft.lbf)
