Fuse Block

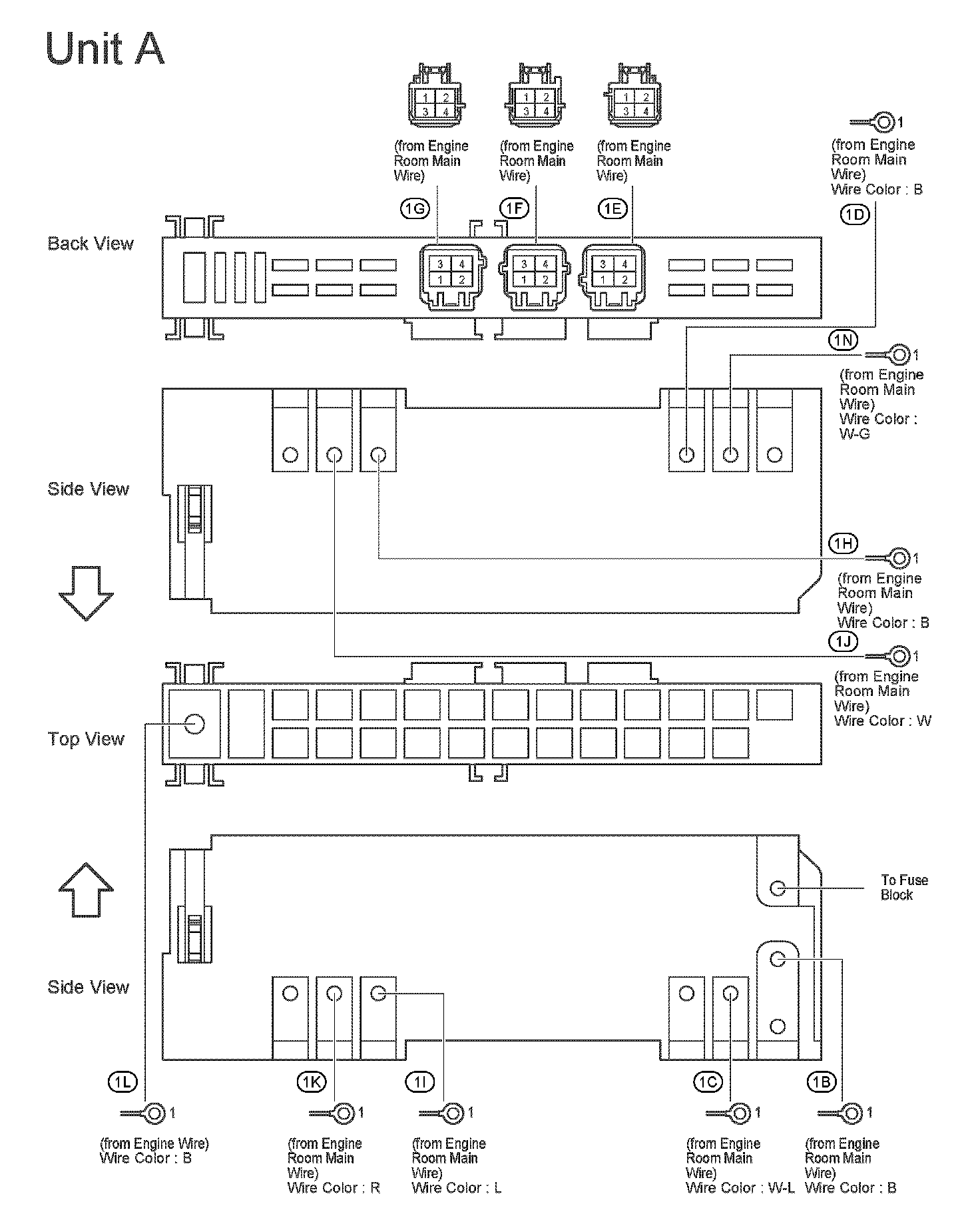

Engine Room R/B No.1, J/B No.1 - Near The Battery:

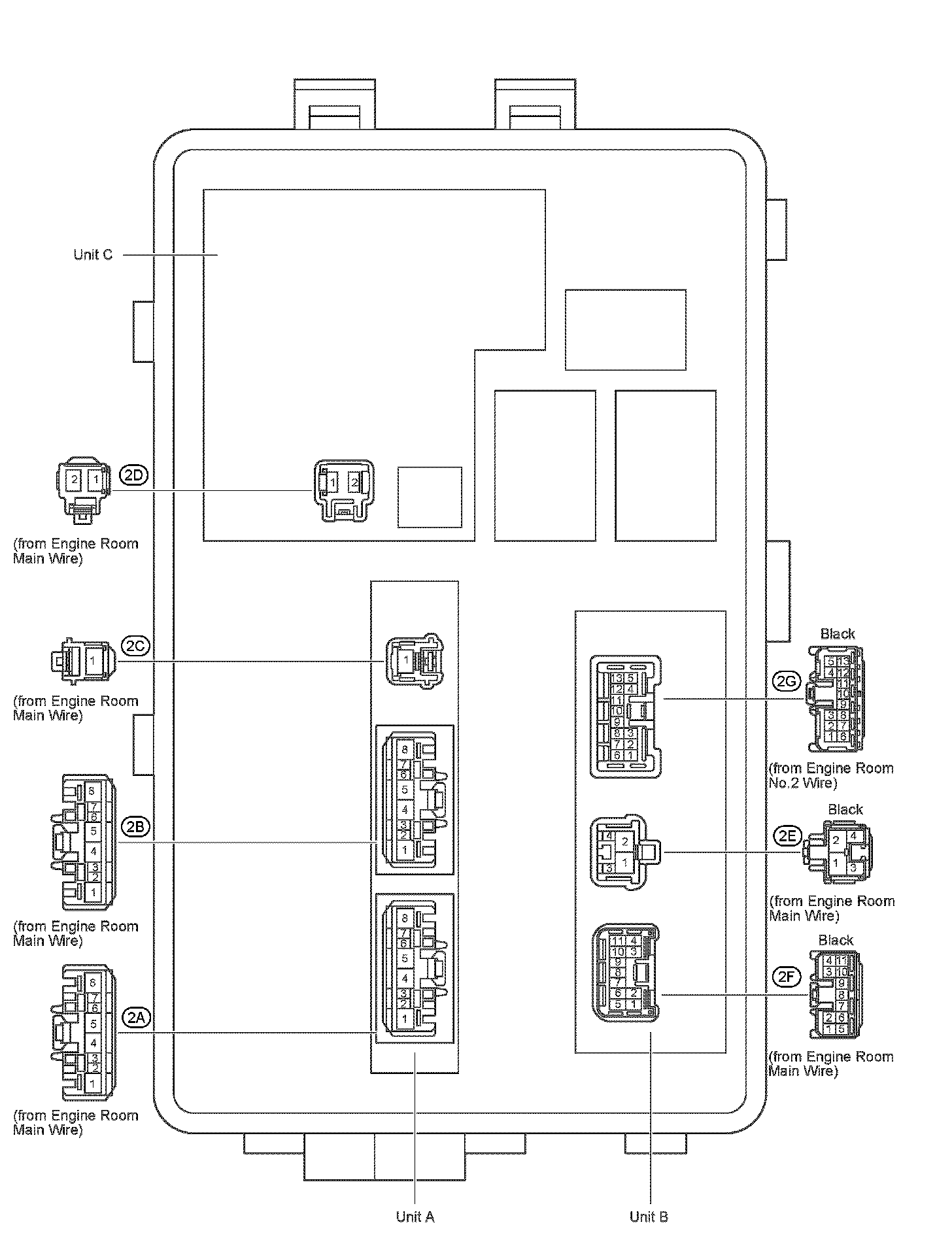

Engine Room R/B No.2, J/B No.2-Engine Compartment:

Cowl Side J/B LH-Cowl Side Left:

Cowl Side J/B LH-Cowl Side Left:

Cowl Side J/B LH-Cowl Side Left:

Cowl Side J/B RH-Cowl Side Right:

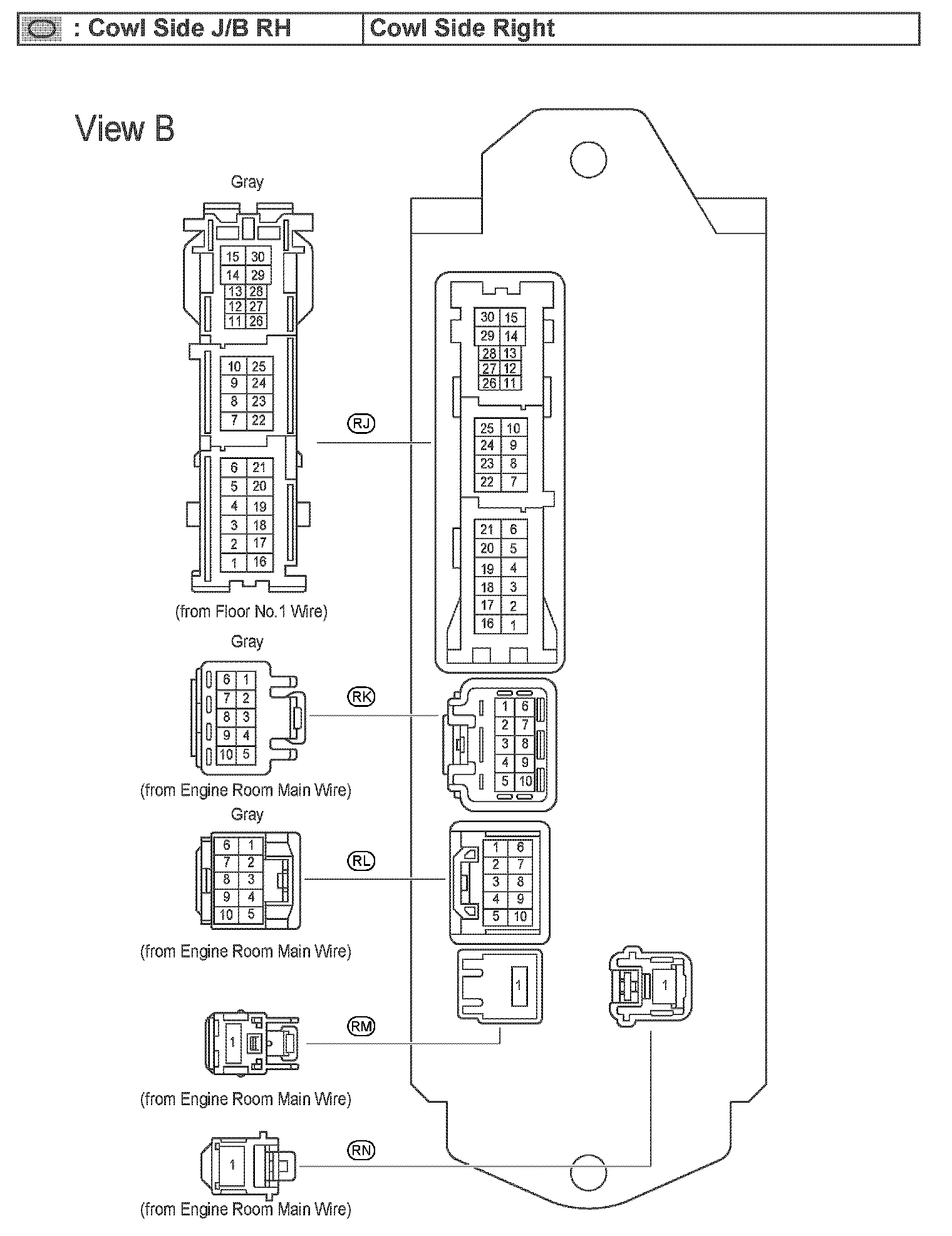

Cowl Side J/B RH-Cowl Side Right:

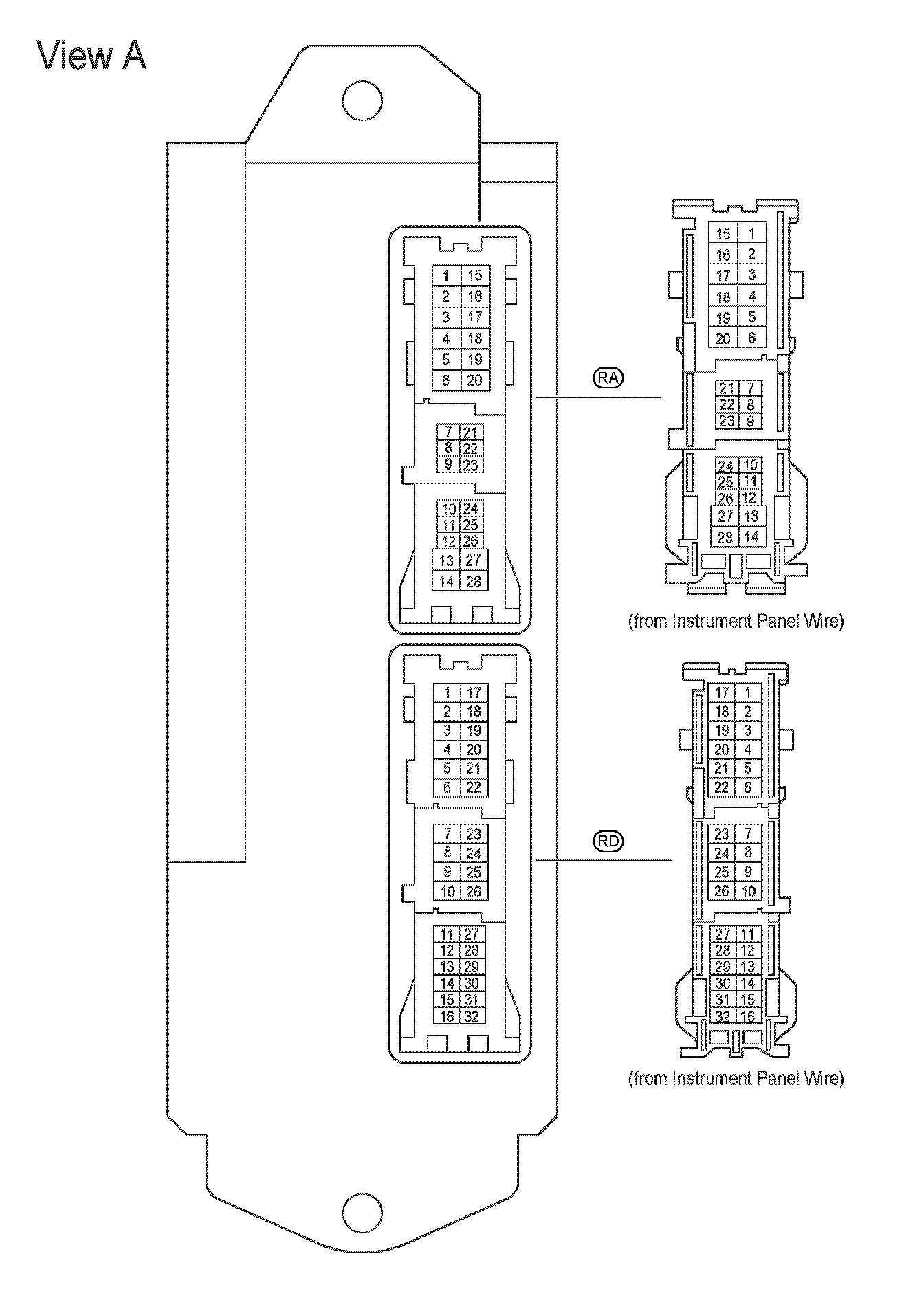

Cowl Side J/B RH-Cowl Side Right:

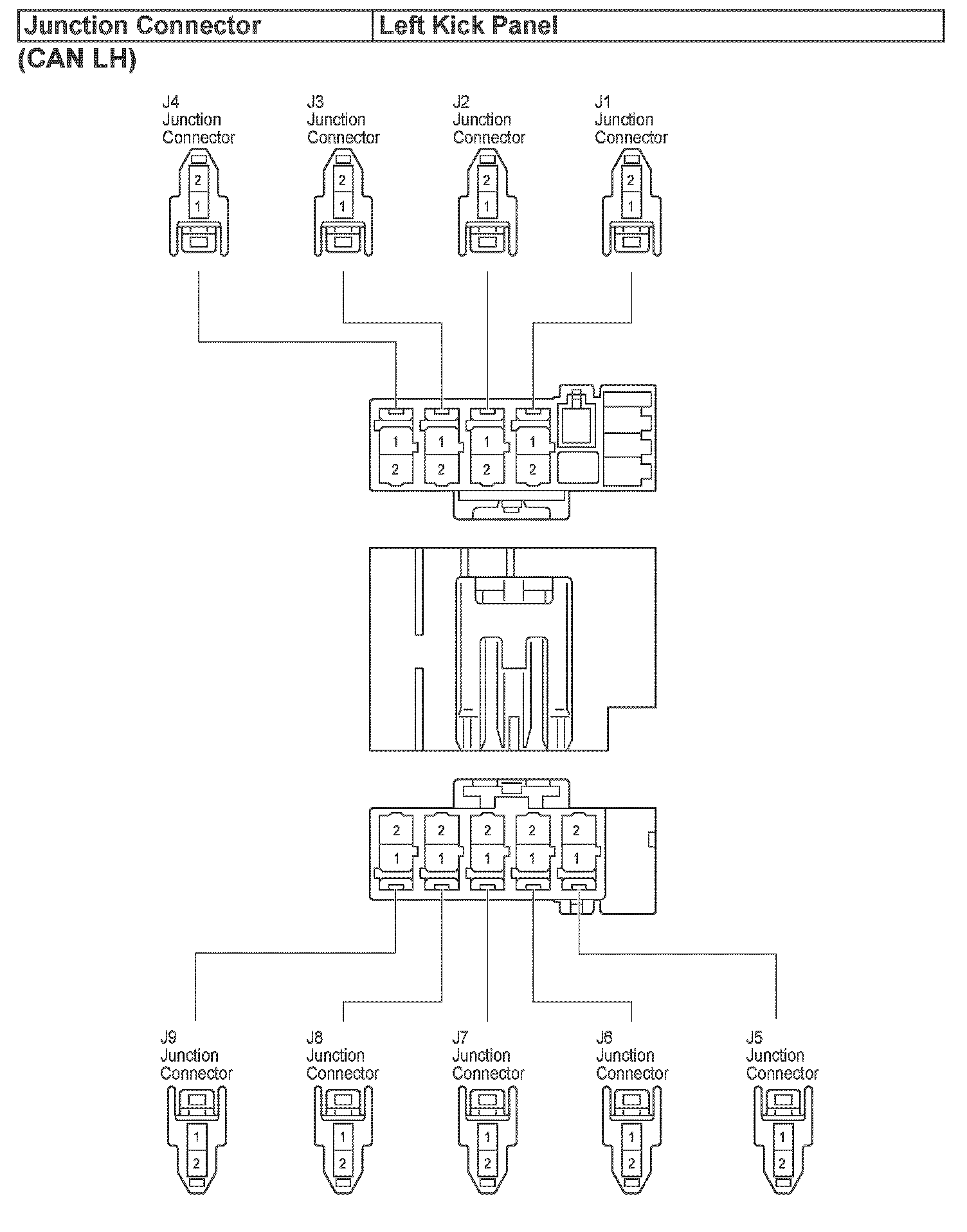

Junction Connector-Left Kick Panel:

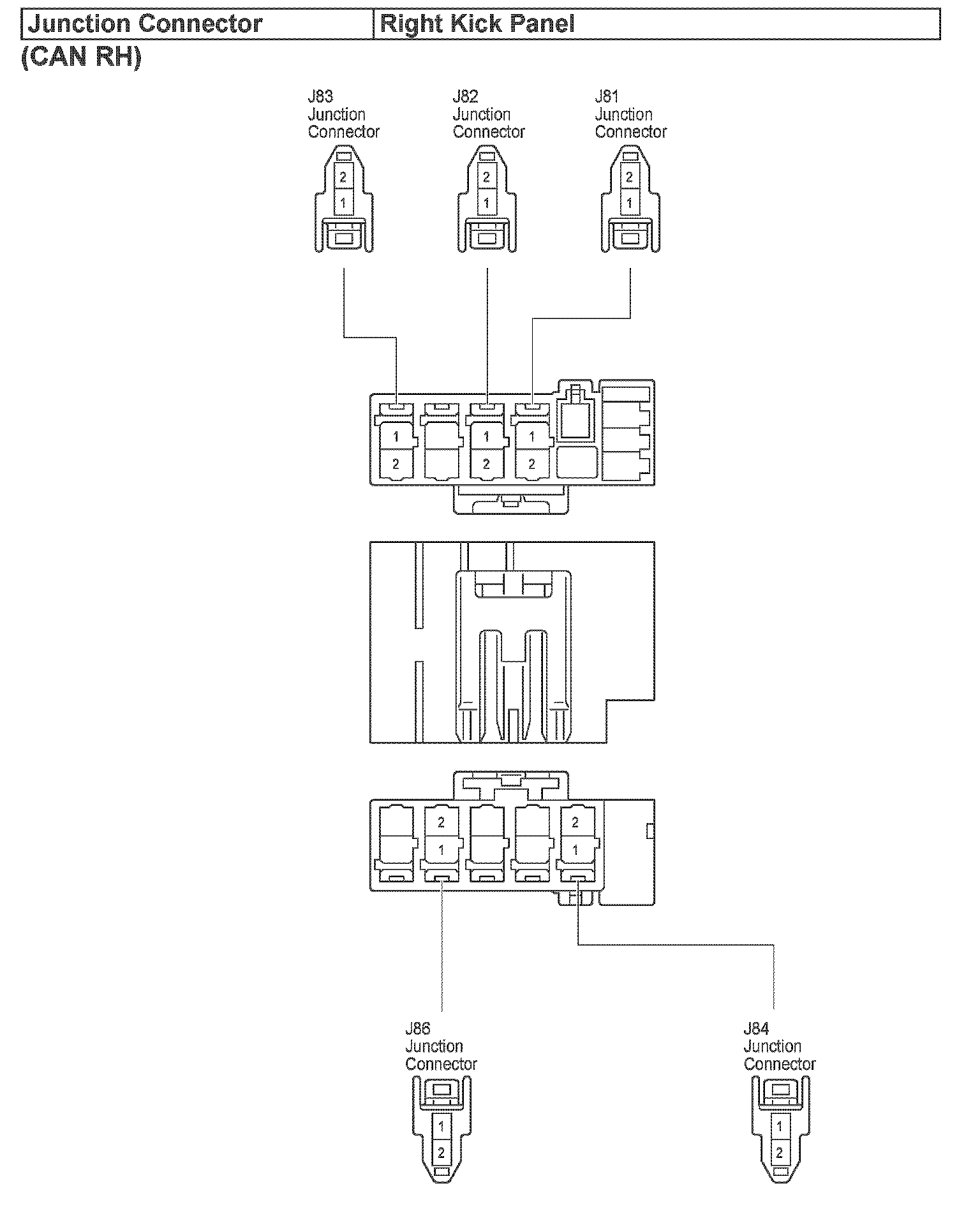

Junction Connector-Right Kick Panel:
