Pattern Select Switch: Installation

INSTALL NO. 1 PATTERN SELECT SWITCH ASSEMBLY
1. Engage the 2 claws and install the pattern select switch to the switch base.

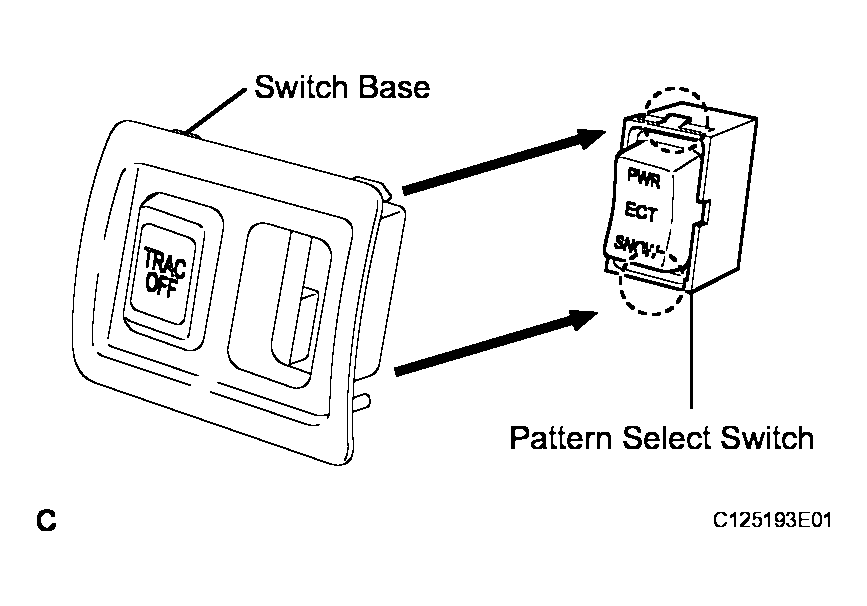

Fig 1: Installing Claws & Pattern Select Switch To Switch Base
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSTALL SWITCH BASE
1. Engage the 4 claws and install the switch base to the lower instrument panel finish panel.

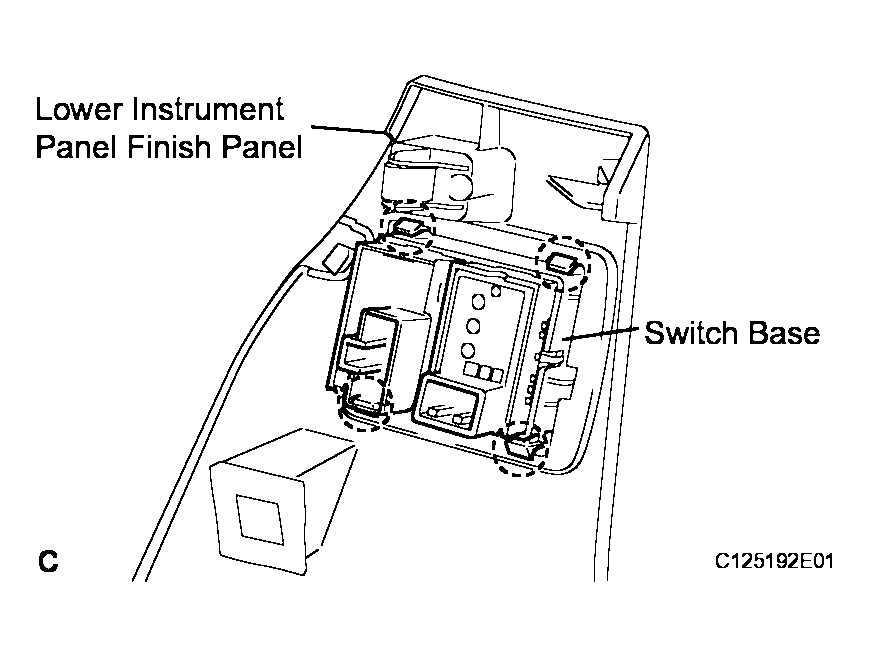

Fig 2: Installing Claws & Switch Base To Lower Instrument Panel Finish Panel
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (See step 24 in INSTALLATION )
INSTALL SIDE INSTRUMENT PANEL LH (See step 26 in INSTALLATION )
INSTALL FRONT DOOR OPENING TRIM COVER LH (See step 27 in INSTALLATION )
INSTALL FRONT DOOR SCUFF PLATE LH (See step 88 in INSTALLATION )
