Electrical Component Locator: Connectors
CONNECTORS LOCATION
| Component | Location |
|---|---|
| Ab1 (White, 3 Pin) | Near right kick panel. See Figure. |
| AD1 (2.5L) (Black, 10 Pin) | Left front of engine compartment. See Figure. |
| AD1 (3.5L) (Black, 10 Pin) | Left front of engine compartment. See Figure. |
| AE1 (2.5L) (White, 39 Pin) | Left side of engine compartment. See Figure. |
| AE1 (3.5L) (White, 39 Pin) | Left side of engine compartment. See Figure. |
| AP1 (White, 25 Pin) | Behind right side of dash. See Figure. |
| AP2 (White, 3 Pin) | Behind right side of dash. See Figure. |
| AQ1 (White, 25 Pin) | Left kick panel. See Figure. |
| BA1 (2.5L) (Gray, 3 Pin) | Left side of engine compartment. See Figure. |
| BA1 (3.5L) (Gray, 3 Pin) | Left side of engine compartment. See Figure. |
| BA2 (2.5L) (White, 25 Pin) | Left side of engine compartment. See Figure. |
| BA2 (3.5L) (White, 25 Pin) | Left side of engine compartment. See Figure. |
| BA3 (2.5L) (Gray, 22 Pin) | Left side of engine compartment. See Figure. |
| BA3 (3.5L) (Gray, 22 Pin) | Left side of engine compartment. See Figure. |
| EA1 (2.5L) (Black, 2 Pin) | Right side of engine compartment. See Figure. |
| EA1 (3.5L) (Black, 2 Pin) | Right side of engine compartment. See Figure. |
| EG1 (2.5L) (Gray, 6 Pin) | Rear of engine compartment. See Figure. |
| EG1 (3.5L) (Gray, 6 Pin) | Rear of engine compartment. See Figure. |
| Ei1 (3.5L) (Gray, 6 Pin) | Top of engine. See Figure. |
| Ja1 (Yellow, 2 Pin) | Behind right side of dash. See Figure. |
| JA1 (Yellow, 2 Pin) | Left kick panel. See Figure. |
| JA2 (White, 25 Pin) | Left kick panel. See Figure. |
| JA3 (White, 60 Pin) | Left kick panel. See Figure. |
| JA4 (White, 20 Pin) | Right kick panel. See Figure. |
| JA5 (Yellow, 2 Pin) | Right kick panel. See Figure. |
| JA6 (Gray, 1 Pin) | Right kick panel. See Figure. |
| JK1 (White, 13 Pin) | Behind center of dash. See Figure. |
| JP1 (White, 18 Pin) | Under center console. See Figure. |
| JP2 (White, 60 Pin) | Right kick panel. See Figure. |
| JQ1 (White, 60 Pin) | Left kick panel. See Figure. |
| JQ2 (Gray, 1 Pin) | Left kick panel. See Figure. |
| JQ3 (White, 10 Pin) | Under center console. See Figure. |
| JR1 (White, 22 Pin) | Left "A" pillar. See Figure. |
| JR2 (White, 25 Pin) | Left "A" pillar. See Figure. |
| Ln1 (Gray, 8 Pin) | Near right "B" pillar. See Figure. |
| LP1 (White, 25 Pin) | Behind right side of dash. See Figure. |
| LP2 (White, 17 Pin) | Behind right side of dash. See Figure. |
| Mo1 (Gray, 8 Pin) | Driver's door. See Figure. |
| MQ1 (White, 24 Pin) | Left kick panel. See Figure. |
| MQ2 (White, 17 Pin) | Left kick panel. See Figure. |
| NP1 (White, 17 Pin) | Near right "B" pillar. See Figure. |
| OQ1 (White, 17 Pin) | Left "B" pillar. See Figure. |

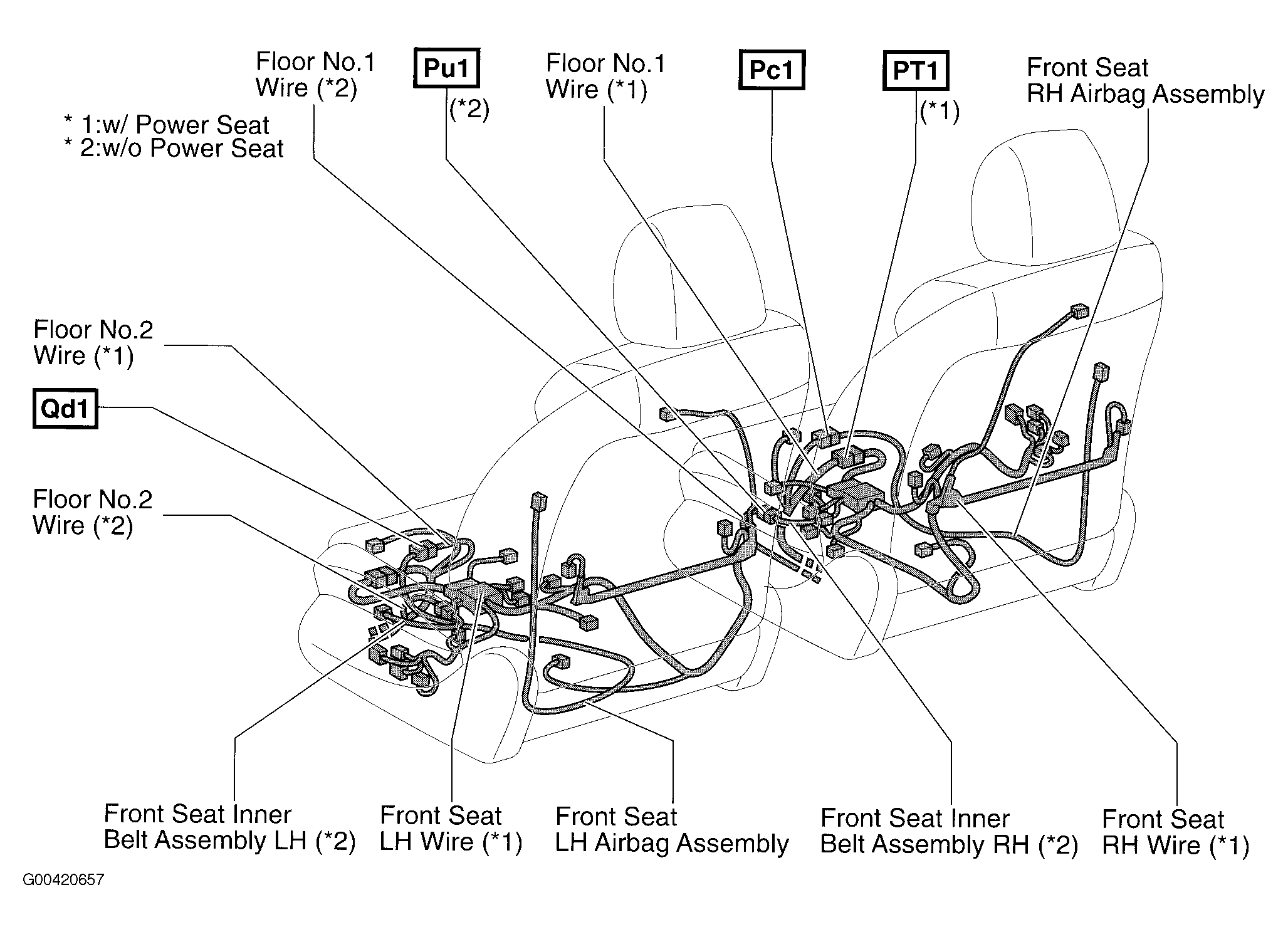

| Pc1 (Yellow, 2 Pin) | Right front seat. See Figure. |
| PQ1 (White, 10 Pin) | Front of trunk. See Figure. |
| PQ2 (White, 25 Pin) | Front of trunk. See Figure. |
| PT1 (White, 17 Pin) | Right front seat. See Figure. |
| Pu1 (White, 17 Pin) | Right front seat. See Figure. |
| Qd1 (Yellow, 2 Pin) | Under driver' seat. See Figure. |
| SQ1 (White, 10 Pin) | Left rear of vehicle. See Figure. |
| St1 (Gray, 1 Pin) | Under center console. See Figure. |
| VA1 (2.5L) (Black/Gray, 2 Pin) | Right front of engine compartment. See Figure. |
| VA1 (3.5L) (Black/Gray, 2 Pin) | Right front of engine compartment. See Figure. |
| WA1 (2.5L) (Black/Gray, 2 Pin) | Left front of engine compartment. See Figure. |
| WA1 (3.5L) (Black/Gray, 2 Pin) | Left front of engine compartment. See Figure. |
| XP1 (White, 5 Pin) | Front of trunk. See Figure. |
| YQ1 (White, 5 Pin) | Left side of trunk. See Figure. |
| ZE1 (2.5L) (Black, 4 Pin) | Left side of engine. See Figure. |
| ZE2 (2.5L) (Dark Gray, 4 Pin) | Left side of engine. See Figure. |
