Light Control Rheostat: Removal

REMOVE FRONT DOOR SCUFF PLATE LH (w/o Illumination) (See REMOVAL )
REMOVE FRONT DOOR SCUFF PLATE LH (w/ Illumination) (See REMOVAL )
REMOVE FRONT DOOR OPENING TRIM COVER LH (See REMOVAL )
REMOVE SIDE INSTRUMENT PANEL LH (See REMOVAL )
REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (See REMOVAL )
REMOVE LIGHT CONTROL RHEOSTAT
1. Remove the 3 screws and the finish panel No. 2 retainer with switch.

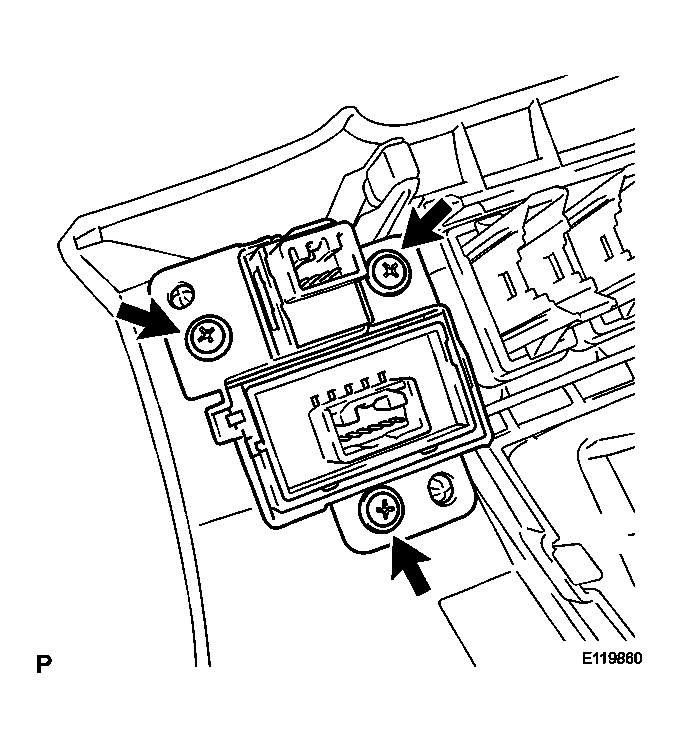

  Fig 1: Identifying Screws And Finish Panel Retainer With Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the 2 claws and remove the light control rheostat from the finish panel No. 2 retainer.
Fig 2: Removing Light Control Rheostat From Finish Panel Retainer
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
