Front Axle Hub Bolt: Replacement

WARNING: This page is about a different car, the 2006 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FRONT WHEEL
REMOVE FRONT DISC BRAKE CALIPER ASSEMBLY (for 2WD) (See REMOVAL )
REMOVE FRONT DISC BRAKE CALIPER ASSEMBLY (for 4WD) (See REMOVAL )
REMOVE FRONT DISC (See DISASSEMBLY )
REMOVE FRONT AXLE HUB BOLT

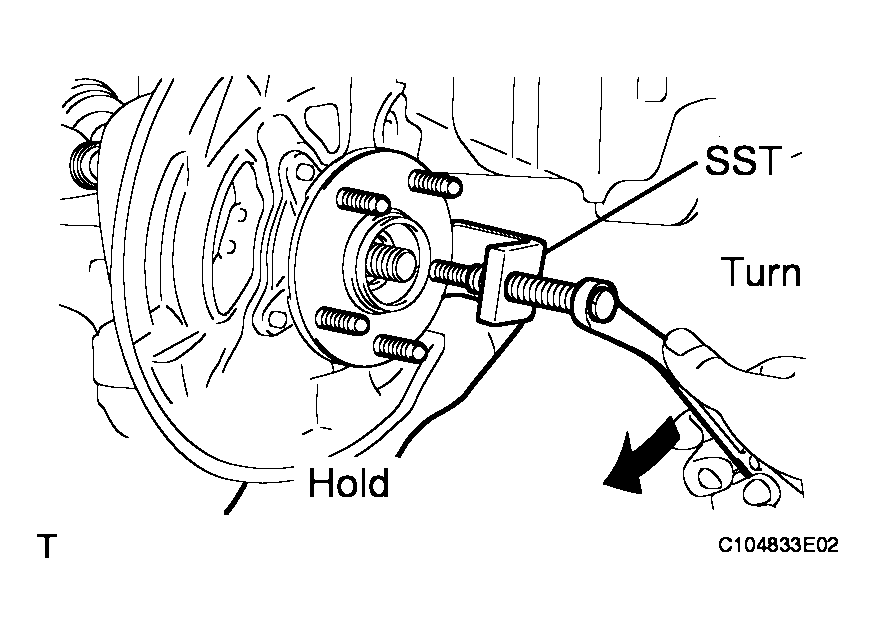

1. Using SST, remove the front axle hub bolt.
  SST 09628-10011

  Fig 1: Identifying Front Axle Hub Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Do not damage the threads of the hub bolts.
INSTALL FRONT AXLE HUB BOLT

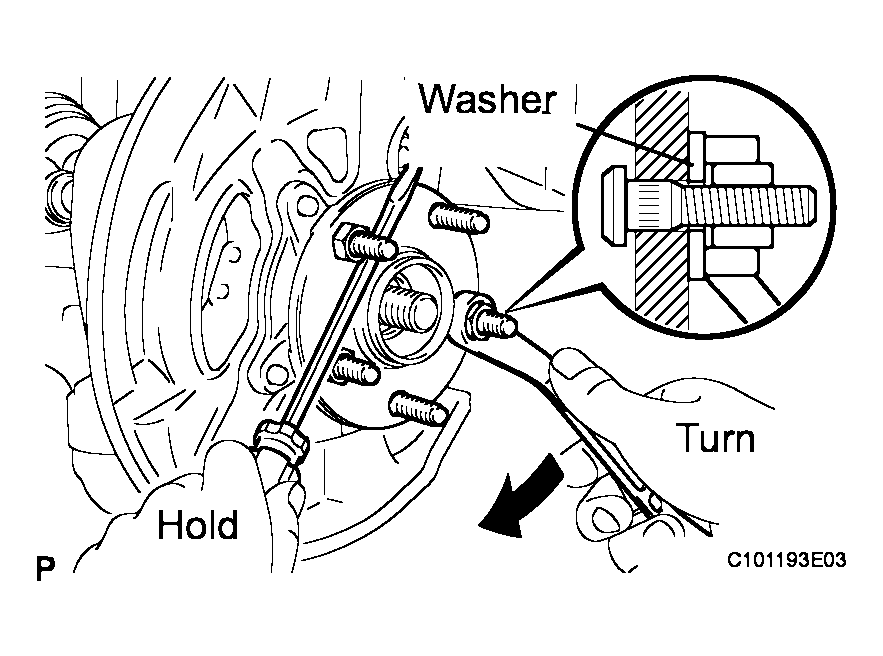

1. Install the washer and nut to a new bolt as shown in the illustration.
2. Using a screwdriver or equivalent to hold the hub, turn the wheel nut to pull the hub bolt until the bottom surface of the hub bolt head touches the axle hub.

  Fig 2: Identifying Washer And Nut To Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Do not damage the threads of the hub bolts.
INSTALL FRONT DISC (See REASSEMBLY )
INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY (for 2WD) (See INSTALLATION )
INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY (for 4WD) (See INSTALLATION )
INSTALL FRONT WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
