Rear Axle Hub Bolt: Replacement

WARNING: This page is about a different car, the 2006 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE REAR WHEEL
SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY (See REMOVAL )
REMOVE REAR DISC (See REMOVAL )
REMOVE REAR AXLE HUB BOLT
1. Using SST, remove the rear axle hub bolt.

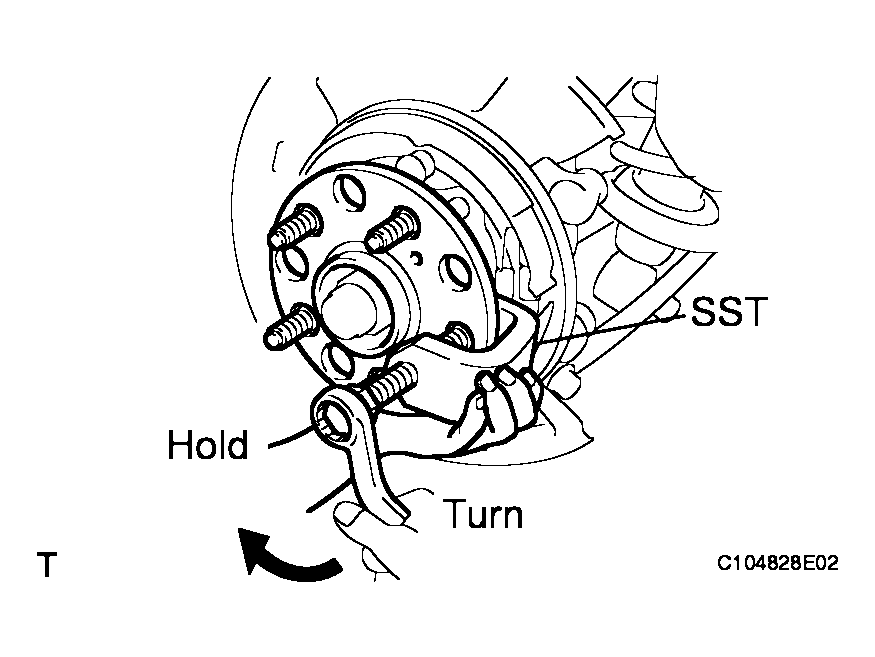

  Fig 1: Identifying Rear Axle Hub Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09628-10011

  NOTE: Do not damage the threads of the hub bolt.
INSTALL REAR AXLE HUB BOLT
1. Install a washer and nut to a new bolt as shown in the illustration.
2. Using a screwdriver or equivalent to hold the rear axle hub, install the rear axle hub bolt by tightening the nut.

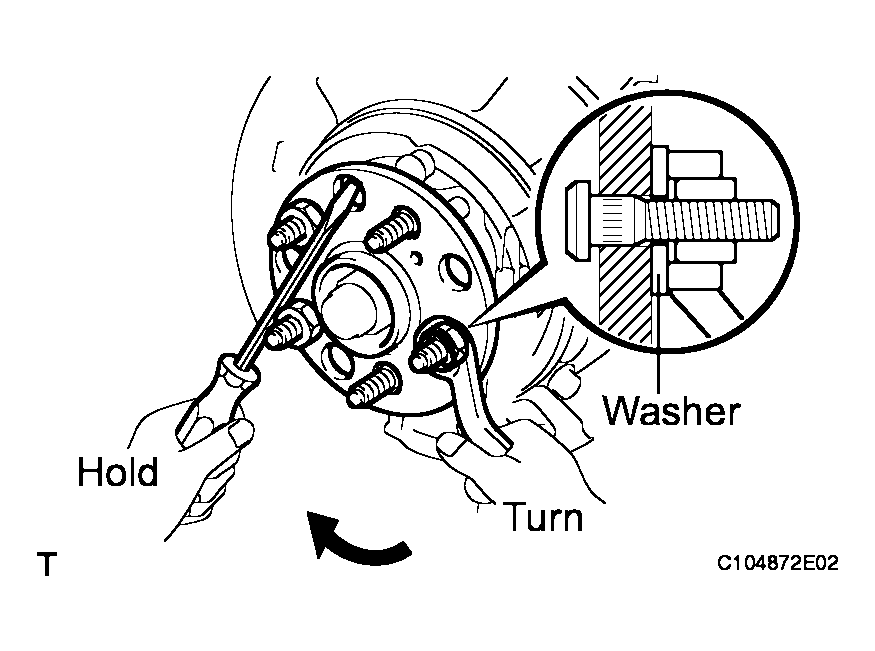

  Fig 2: Installing Rear Axle Hub Bolt By Tightening Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Do not damage the threads of the hub bolt.
INSTALL REAR DISC (See REASSEMBLY )
ADJUST PARKING BRAKE SHOE CLEARANCE (See ADJUSTMENT )
INSTALL REAR WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
