Child Restraint Seat Tether Anchor: Removal
- REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY (See DISASSEMBLY
)
- REMOVE REAR SEAT HEADREST ASSEMBLY
- REMOVE REAR SEAT CENTER HEADREST ASSEMBLY
- REMOVE BENCH TYPE REAR SEATBACK ASSEMBLY (See DISASSEMBLY
)
- REMOVE REAR DOOR SCUFF PLATE LH (See Step 103 in REMOVAL
)
- REMOVE REAR DOOR SCUFF PLATE RH
- REMOVE REAR SEAT SIDE GARNISH LH (See Step 112 in REMOVAL
)
- REMOVE REAR SEAT SIDE GARNISH RH
- REMOVE ROOF SIDE INNER GARNISH LH (See Step 114 in REMOVAL
)
- REMOVE ROOF SIDE INNER GARNISH RH
- REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/o Rear Sunshade) (See Step 12 in REMOVAL
)
- REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Rear Sunshade) (See Step 13 in REMOVAL
)

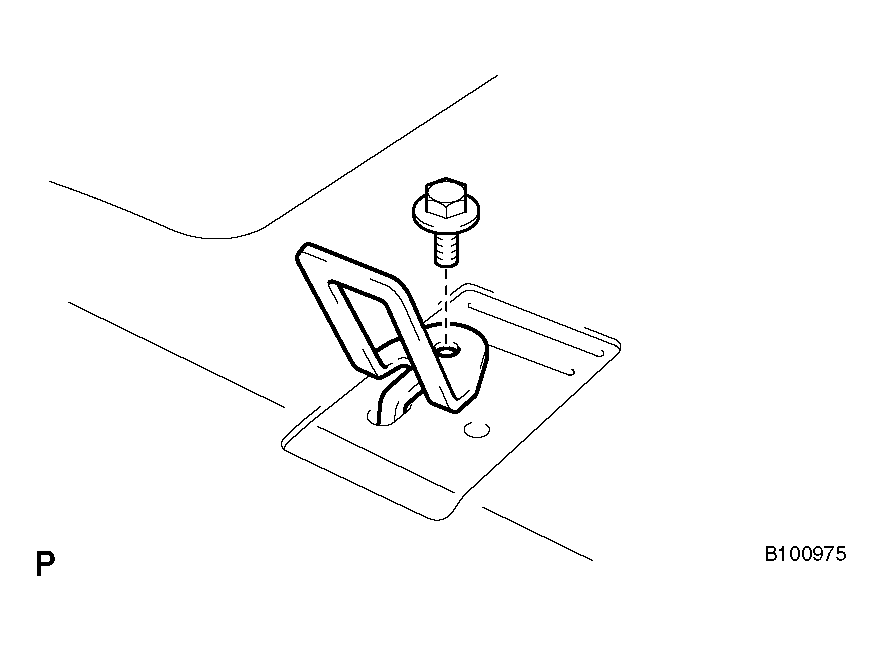

- REMOVE CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET
- Remove the 3 bolts and the 3 child restraint seat tether anchor brackets.
