Front Seat Inner Belt Assembly: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (for Manual Seat)
CAUTION: Wait for 90 seconds after disconnecting the cable to prevent airbag deployment. (See PRECAUTION )
REMOVE FRONT SEAT HEADREST ASSEMBLY
REMOVE FRONT OUTER SEAT TRACK BRACKET COVER (for Manual Seat) (See Step 4 in REMOVAL )
REMOVE FRONT INNER SEAT TRACK BRACKET COVER (for Manual Seat) (See Step 3 in REMOVAL )
REMOVE REAR OUTER SEAT TRACK COVER (for Manual Seat) (See Step 5 in REMOVAL )
REMOVE REAR INNER SEAT TRACK COVER (for Manual Seat) (See Step 6 in REMOVAL )
REMOVE FRONT SEAT ASSEMBLY (for Manual Seat) (See Step 7 in REMOVAL )
REMOVE FRONT OUTER SEAT TRACK BRACKET COVER (for Power Seat) (See Step 2 in REMOVAL )
REMOVE FRONT INNER SEAT TRACK BRACKET COVER (for Power Seat)
REMOVE REAR OUTER SEAT TRACK COVER (for Power Seat) (See Step 4 in REMOVAL )
REMOVE REAR INNER SEAT TRACK COVER (for Power Seat)
REMOVE FRONT SEAT ASSEMBLY (for Power Seat) (See Step 6 in REMOVAL )
REMOVE FRONT SEAT INNER BELT ASSEMBLY (for Manual Seat)

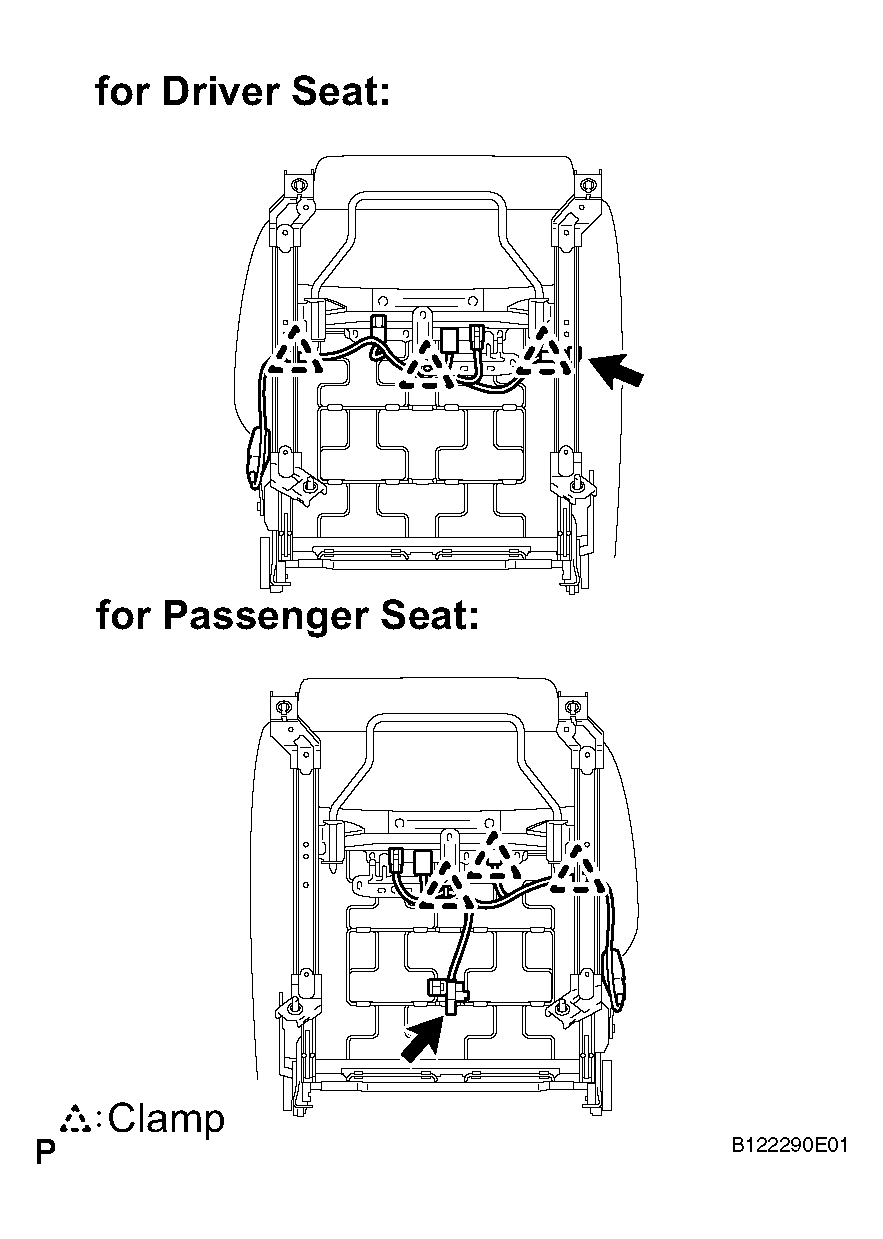

1. Disconnect the connector and detach the 3 clamps.

  Fig 1: Detaching Front Seat Inner Belt Assembly Clamps (For Manual Seat)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

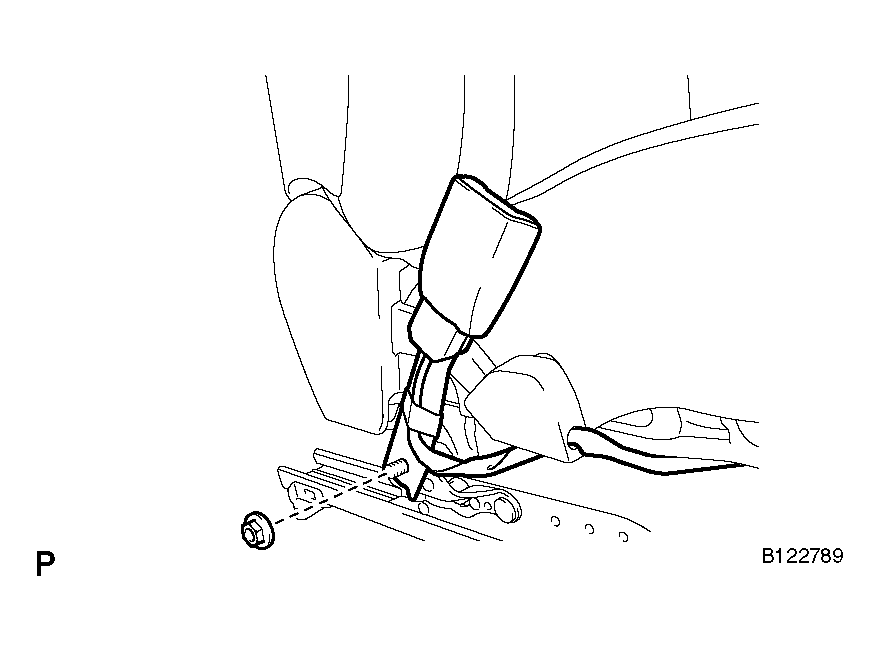

2. Remove the nut and front seat inner belt assembly.
Fig 2: Removing Nut & Front Seat Inner Belt Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT SEAT INNER BELT ASSEMBLY (for Power Seat)

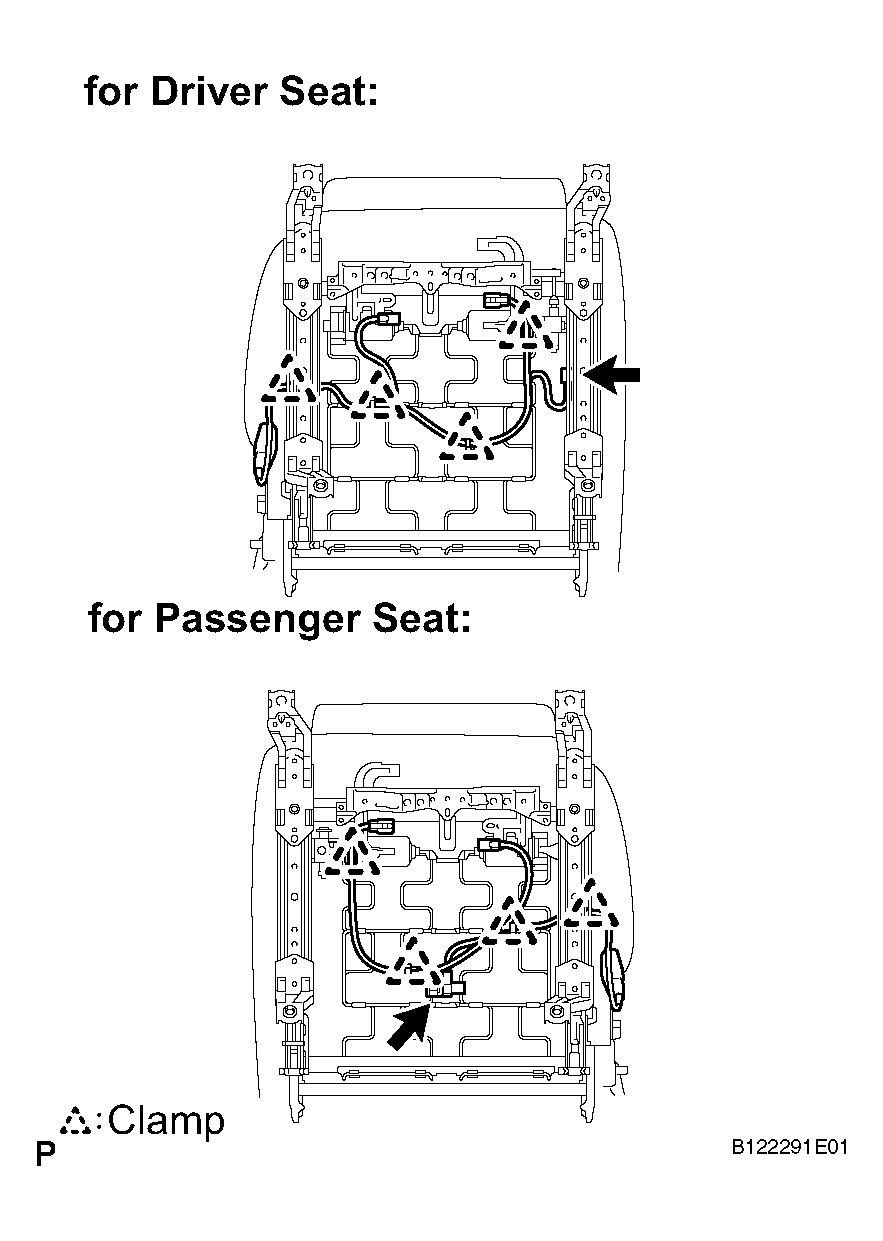

1. Disconnect the connector and detach the 4 clamps.

  Fig 3: Detaching Front Seat Inner Belt Assembly Clamps (For Power Seat)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the nut and front seat inner belt assembly.
Fig 4: Removing Nut & Front Seat Inner Belt Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
