4WD Control Ecu: Components

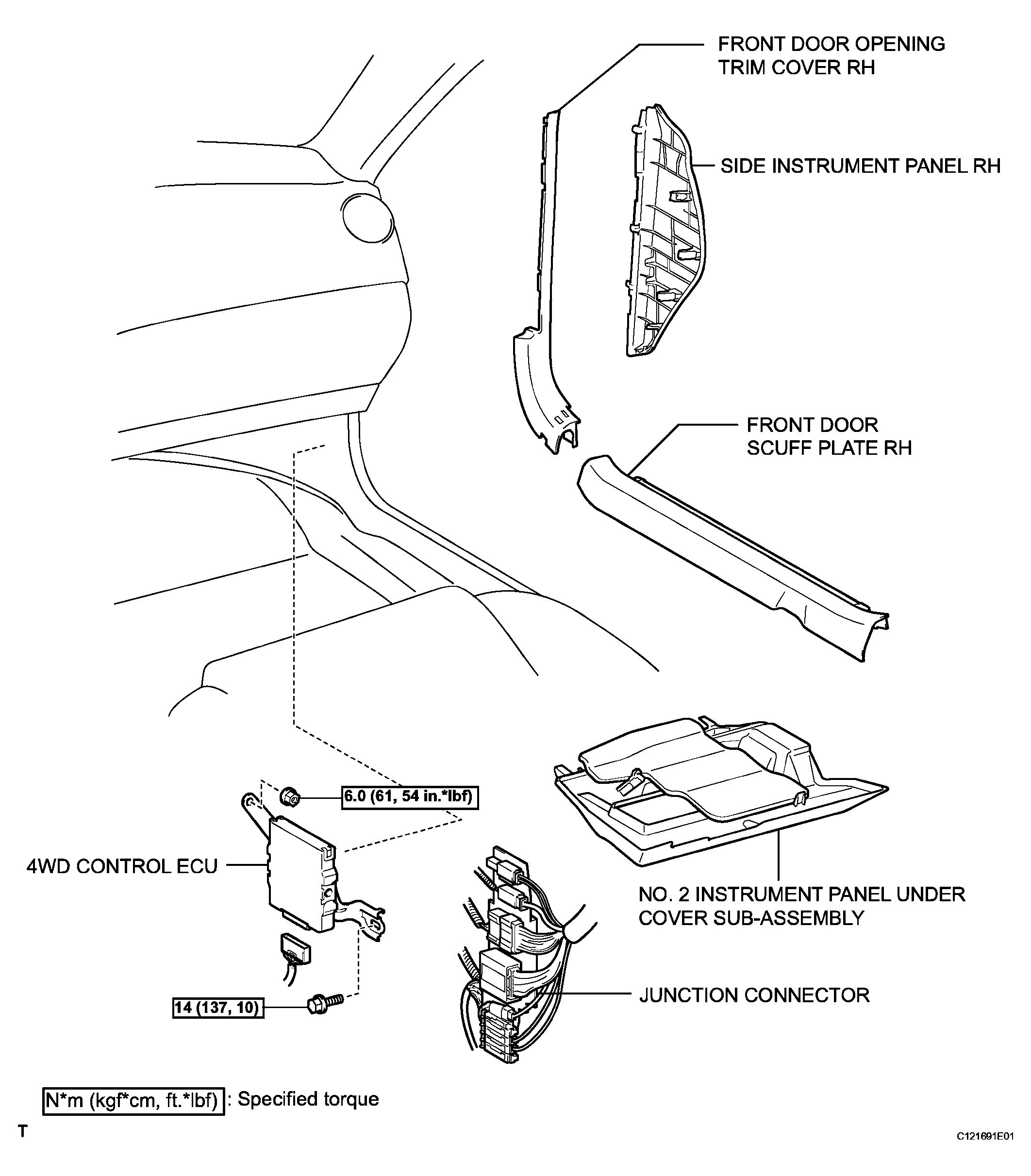

Fig 1: 4WD Control ECU Replacement Components With Torque Specifications
G04046873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
